5KP110A, 5KP110CA, 5KP11A

Table of contents:
Info of 5KP110A
Info of 5KP110CA
Info of 5KP11A

5KP110A, 5KP110CA, 5KP11A Selling Leads, Datasheet

MFG:Littelfuse Inc Category:Circuit Protection Package Cooled:N/A D/C:06+

5KP110A, 5KP110CA, 5KP11A Datasheet download

Five Points

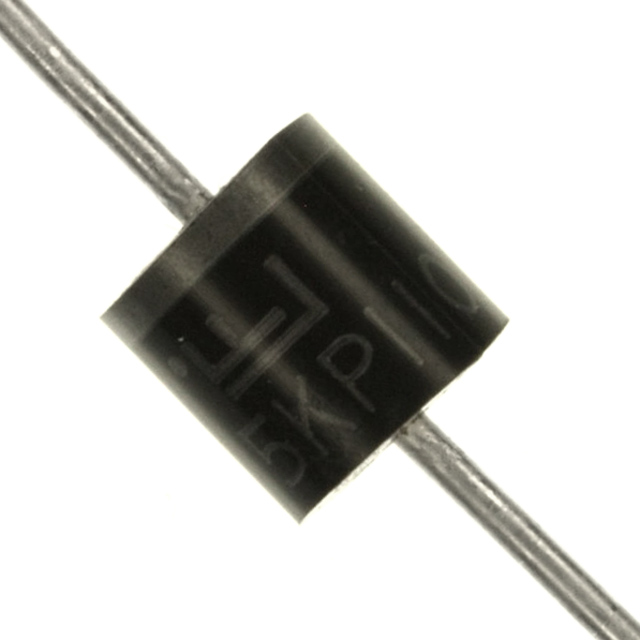

Part Number: 5KP110A

Category: Circuit Protection

MFG: Littelfuse Inc

Package Cooled: N/A

D/C: 06+

Description: DIODE TVS 11V 5000W AXL UNI 5%

Price Break

800
1600
3200

Unit Price

1.39800
1.26700
1.19700

Extended Price

1118.40
2027.20
3830.40

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

5KP110A Parameters

Technical/Catalog Information	5KP110A
Vendor	Littelfuse Inc
Category	Circuit Protection
Package / Case	Axial
Packaging	Tape & Reel (TR)
Polarization	Unidirectional
Power (Watts)	5000W
Voltage - Reverse Standoff (Typ)	110V
Voltage - Breakdown	122V
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant
Other Names	5KP110A 5KP110A 5KP110ALFTR ND 5KP110ALFTRND 5KP110ALFTR

5KP110CA Parameters

Technical/Catalog Information	5KP110CA
Vendor	Littelfuse Inc
Category	Circuit Protection
Package / Case	Axial
Packaging	Tape & Reel (TR)
Polarization	Bidirectional
Power (Watts)	5000W
Voltage - Reverse Standoff (Typ)	110V
Voltage - Breakdown	122V
Drawing Number	*
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant
Other Names	5KP110CA 5KP110CA 5KP110CALFTR ND 5KP110CALFTRND 5KP110CALFTR

5KP110CA Maximum Ratings

Characteristic	SY_MBOL	VALUE	UNITS
Peak Pulse Power Dissipation at TA = 25°C (Note 1, 2, 5) Figure 3	IP_PM	5000 Minimum	W
Peak Forward Surge Current (Note 3)	I_FSM	400	A
Peak Pulse Current on 10/1000µS Waveform (Note 1) Figure 1	I_PPM	See Table 1	A
Steady State Power Dissipation (Note 2, 4)	PM_(AV)	8.0	W

5KP110CA Features

*Glass Passivated Die Construction
* 5000W Peak Pulse Power Dissipation
* 5.0V 110V Standoff Voltage A B A
* Uni- and Bi-Directional Versions Available
* Excellent Clamping Capability
*Fast Response Time
* Plastic Case Material has UL Flammability Classification Rating 94V-O

5KP11A Parameters

Technical/Catalog Information	5KP11A
Vendor	Littelfuse Inc
Category	Circuit Protection
Package / Case	Axial
Packaging	Tape & Reel (TR)
Polarization	Unidirectional
Power (Watts)	5000W
Voltage - Reverse Standoff (Typ)	11V
Voltage - Breakdown	12.2V
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant
Other Names	5KP11A 5KP11A
