5KP120CA, 5KP130A, 5KP130CA

Table of contents:
Info of 5KP120CA
Info of 5KP130A
Info of 5KP130CA

5KP120CA, 5KP130A, 5KP130CA Selling Leads, Datasheet

MFG:Littelfuse Inc Category:Circuit Protection Package Cooled:N/A D/C:09+

5KP120CA, 5KP130A, 5KP130CA Datasheet download

Five Points

Part Number: 5KP130A

Category: Circuit Protection

MFG: Littelfuse Inc

Package Cooled: N/A

D/C: 09+

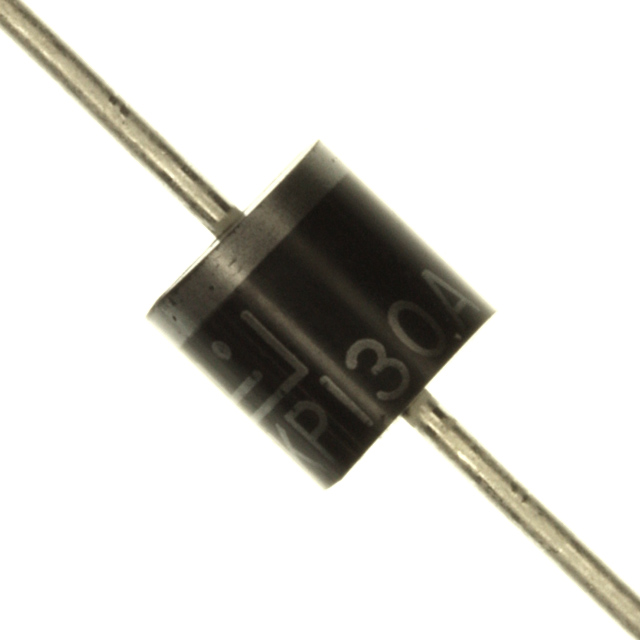

Description: DIODE TVS 5000W 130V BI 5% AXIAL

Price Break

1
10
100
500

Unit Price

5.79000
5.32700
4.47760
3.47400

Extended Price

5.79
53.27
447.76
1737.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

5KP120CA Parameters

Technical/Catalog Information	5KP120CA
Vendor	Littelfuse Inc (VA)
Category	Circuit Protection
Package / Case	Axial
Packaging	Cut Tape (CT)
Polarization	Bidirectional
Power (Watts)	5000W
Voltage - Reverse Standoff (Typ)	120V
Voltage - Breakdown	133V
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant
Other Names	5KP120CA 5KP120CA 5KP120CACT ND 5KP120CACTND 5KP120CACT

5KP130A Parameters

Technical/Catalog Information	5KP130A
Vendor	Littelfuse Inc
Category	Circuit Protection
Package / Case	Axial
Packaging	Tape & Reel (TR)
Polarization	Unidirectional
Power (Watts)	5000W
Voltage - Reverse Standoff (Typ)	130V
Voltage - Breakdown	144V
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant
Other Names	5KP130A 5KP130A 5KP130ALFTR ND 5KP130ALFTRND 5KP130ALFTR

5KP130A General Description

The 5KP Series is designed specifically to protect sensitive electronics equipment from voltage transients induced by lightning and othertransient voltage events.

These devices are ideal for the protection of I/O interfaces, Vcc bus and other vulnerable circuits used in automotive, industrial and consumer.

5KP130A Maximum Ratings

MAXIMUM RATINGS AND CHARACTERISTICS @25°C AMBIENT TEMPERATURE (unless otherwise noted)

Rating	Symbol	Value	Unit
Peak Pulse Power Dissipation on 10/1000µs waveform(Note 1, FIG. 1)	P_PPM	Min 5000	Watts
Peak Pulse Current of on 10/1000µs waveform (Note 1, FIG. 3)	I_PPM	SEE TABLE 1	Amps
Steady State Power Dissipation at TL=75°C, Lead lengths .375", (9.5mm)(Note 2)	P_M(AV)	8	Watts
Peak Forward Surge Current, 8.3ms Single Half Sine-Wave Superimposed on Rated Load, (JEDEC Method) (Note 3)	I_FSM	400	Amps.
Operating and Storage Temperature Range	T_J, T_STG	- 55 to + 175	°C

Notes:
1. Non-repetitive current pulse, per Fig.3 and derated above TA= 25°C per Fig.2
2. Mounted on Copper Pad area of 0.8x0.8"(20x20mm) per Fig.5.
3. 8.3 ms single half sine-wave, or equivalent square wave, Duty cycle= 4 pulses per minutes maximum.

5KP130A Features

• RoHS Compliant
• 5.0 to 220 Volts
• Glass passivated chip junction
• Uni-directional and Bi-directional
• 5000W Peak Pulse Power capability on 10/1000µs waveform
• Excellent clamping capability
• Repetition rate (duty cycle): 0.05%
• Low incremental surge resistance
• Fast response time: typically less than 1.0ps from 0 Volts to BV
• Typical IR less than 1µA for VBR>=10V
• High temperature soldering guaranteed: 265°C/10 seconds/.375"(9.5mm) lead length, 5lbs., (2.3kg) tension

5KP130CA Parameters

Technical/Catalog Information	5KP130CA
Vendor	Littelfuse Inc
Category	Circuit Protection
Package / Case	Axial
Packaging	Tape & Reel (TR)
Polarization	Bidirectional
Power (Watts)	5000W
Voltage - Reverse Standoff (Typ)	130V
Voltage - Breakdown	144V
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant
Other Names	5KP130CA 5KP130CA 5KP130CALFTR ND 5KP130CALFTRND 5KP130CALFTR
