ADF7020BCPZ-RL, ADF7020BCPZ-RL7, ADF7021

Table of contents:
Info of ADF7020BCPZ-RL
Info of ADF7020BCPZ-RL7
Info of ADF7021

ADF7020BCPZ-RL, ADF7020BCPZ-RL7, ADF7021 Selling Leads, Datasheet

MFG:Analog Devices Inc Category:RF and RFID Package Cooled:CP D/C:2010+

ADF7020BCPZ-RL, ADF7020BCPZ-RL7, ADF7021 Datasheet download

Five Points

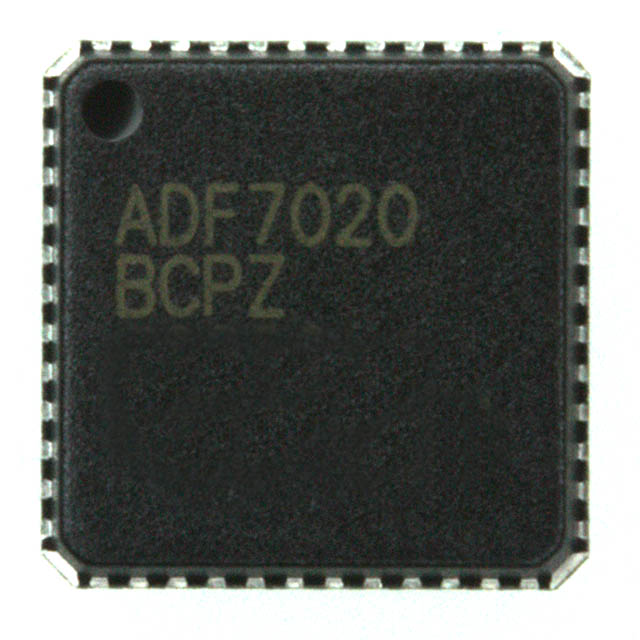

Part Number: ADF7020BCPZ-RL

Category: RF and RFID

MFG: Analog Devices Inc

Package Cooled: CP

D/C: 2010+

Description: IC TX FSK/ASK ISM BAND 48LFCSP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ADF7020BCPZ-RL Parameters

Technical/Catalog Information	ADF7020BCPZ-RL
Vendor	Analog Devices Inc
Category	RF and RFID
Frequency	431MHz ~ 478MHz and 862MHz ~ 956MHz
Data Rate - Maximum	200 kbps
Modulation or Protocol	ASK, FSK
Applications	Data Transfer, RKE, Remote Control/Security Systems
Power - Output	-16dBm ~ 13dBm
Sensitivity	-119dBm
Voltage - Supply	2.3 V ~ 3.6 V
Current - Receiving	19mA
Current - Transmitting	26.8mA @ 10dBm
Package / Case	48-LFCSP
Operating Temperature	-40°C ~ 85°C
Data Interface	PCB, Surface Mount
Antenna Connector	PCB, Surface Mount
Packaging	Tape & Reel (TR)
Memory Size	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADF7020BCPZ RL ADF7020BCPZRL

ADF7020BCPZ-RL7 Parameters

Technical/Catalog Information	ADF7020BCPZ-RL7
Vendor	Analog Devices Inc
Category	RF and RFID
Frequency	431MHz ~ 478MHz and 862MHz ~ 956MHz
Data Rate - Maximum	200 kbps
Modulation or Protocol	ASK, FSK
Applications	Data Transfer, RKE, Remote Control/Security Systems
Power - Output	-16dBm ~ 13dBm
Sensitivity	-119dBm
Voltage - Supply	2.3 V ~ 3.6 V
Current - Receiving	19mA
Current - Transmitting	26.8mA @ 10dBm
Package / Case	48-LFCSP
Operating Temperature	-40°C ~ 85°C
Data Interface	PCB, Surface Mount
Antenna Connector	PCB, Surface Mount
Packaging	Tape & Reel (TR)
Memory Size	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADF7020BCPZ RL7 ADF7020BCPZRL7

ADF7021 Maximum Ratings

VDD to GND1 ................−0.3 V to +5 V
Analog I/O Voltage to GND.. −0.3 V to AVDD + 0.3 V
Digital I/O Voltage to GND.. −0.3 V to DVDD + 0.3 V
Operating Temperature Range
Industrial (B Version)......... −40°C to +85°C
Storage Temperature Range ... −65°C to +125°C
Maximum Junction Temperature ........ 150°C
MLF JA Thermal Impedance ......... 26°C/W
Reflow Soldering
Peak Temperature................ 260°C
Time-at-Peak Temperature ........... 40 sec

ADF7021 Features

`Low power, low IF transceiver
`Frequency bands
`80 MHz to 650 MHz
`862 MHz to 940 MHz
`Modulation schemes
`2FSK, 3FSK, 4FSK
`Spectral shaping
`Gaussian and raised-cosine filtering
`Data rates supported
`0.05 kbps to 25 kbps
`2.3 V to 3.6 V power supply
`Programmable output power
−16 dBm to +13 dBm in 63 steps
`Automatic PA ramp control
`Receiver sensitivity
`−125 dBm at 1 kbps, 2 FSK
`On-chip VCO and fractional-N PLL
`On-chip 7-bit ADC and temperature sensor
`Fully automatic frequency control loop (AFC)
`Digital RSSI
`Integrated Tx/Rx switch
`Leakage current <1 A in power-down mode

ADF7021 Typical Application

·Narrow-band standards
·ETSI EN 300-220, FCC Part 90, FCC Part 15, FCC Part 95,
·ARIB STD-T67
·Low cost, wireless data transfer
·Remote control/security systems
·Wireless metering
·Private mobile radio
·Wireless medical telemetry service (WMTS)
·Keyless entry
·Home automation
·Process and building control
·Pagers

ADF7021 Connection Diagram
