ADF7021-NBCPZ, ADF7021-NBCPZ-RL, ADF7021-NBCPZ-RL7

Table of contents:
Info of ADF7021-NBCPZ
Info of ADF7021-NBCPZ-RL
Info of ADF7021-NBCPZ-RL7

ADF7021-NBCPZ, ADF7021-NBCPZ-RL, ADF7021-NBCPZ-RL7 Selling Leads, Datasheet

MFG:Analog Devices Inc Category:RF and RFID Package Cooled:LFCSP48 D/C:912

ADF7021-NBCPZ, ADF7021-NBCPZ-RL, ADF7021-NBCPZ-RL7 Datasheet download

Five Points

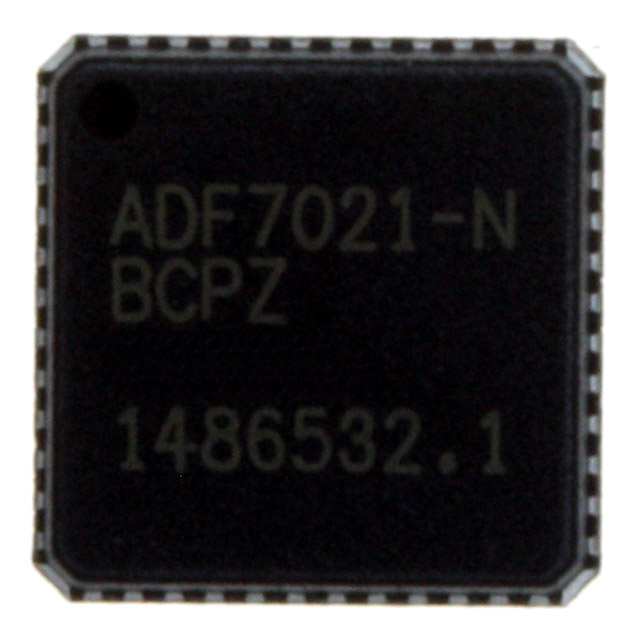

Part Number: ADF7021-NBCPZ

Category: RF and RFID

MFG: Analog Devices Inc

Package Cooled: LFCSP48

D/C: 912

Description: IC TXRX 80-650/842-916MHZ 48LFCS

Price Break

1
25
100
250
500

Unit Price

6.18000
4.94400
4.17150
4.01700
3.92430

Extended Price

6.18
123.60
417.15
1004.25
1962.15

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ADF7021-NBCPZ Parameters

Technical/Catalog Information	ADF7021-NBCPZ
Vendor	Analog Devices Inc
Category	RF and RFID
Frequency	80MHz ~ 650MHz, 842MHz ~ 916MHz
Data Rate - Maximum	33 kbps
Modulation or Protocol	2-FSK, 3-FSK, 4-FSK, MSK
Applications	Keyless Entery, Pagers, WMTS
Power - Output	-16dBm ~ 13dBm
Sensitivity	-130dBm
Voltage - Supply	2.3 V ~ 6 V
Current - Receiving	26mA
Current - Transmitting	32.3mA @ 10dBm
Package / Case	48-LFCSP
Operating Temperature	-40°C ~ 85°C
Data Interface	PCB, Surface Mount
Antenna Connector	PCB, Surface Mount
Packaging	Tray
Memory Size	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADF7021 NBCPZ ADF7021NBCPZ

ADF7021-NBCPZ-RL Parameters

Technical/Catalog Information	ADF7021-NBCPZ-RL
Vendor	Analog Devices Inc
Category	RF and RFID
Frequency	80MHz ~ 650MHz, 842MHz ~ 916MHz
Data Rate - Maximum	33 kbps
Modulation or Protocol	2-FSK, 3-FSK, 4-FSK, MSK
Applications	Keyless Entery, Pagers, WMTS
Power - Output	-16dBm ~ 13dBm
Sensitivity	-130dBm
Voltage - Supply	2.3 V ~ 6 V
Current - Receiving	26mA
Current - Transmitting	32.3mA @ 10dBm
Package / Case	48-LFCSP
Operating Temperature	-40°C ~ 85°C
Data Interface	PCB, Surface Mount
Antenna Connector	PCB, Surface Mount
Packaging	Tape & Reel (TR)
Memory Size	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADF7021 NBCPZ RL ADF7021NBCPZRL

ADF7021-NBCPZ-RL7 Parameters

Technical/Catalog Information	ADF7021-NBCPZ-RL7
Vendor	Analog Devices Inc
Category	RF and RFID
Frequency	80MHz ~ 650MHz, 842MHz ~ 916MHz
Data Rate - Maximum	33 kbps
Modulation or Protocol	2-FSK, 3-FSK, 4-FSK, MSK
Applications	Keyless Entery, Pagers, WMTS
Power - Output	-16dBm ~ 13dBm
Sensitivity	-130dBm
Voltage - Supply	2.3 V ~ 6 V
Current - Receiving	26mA
Current - Transmitting	32.3mA @ 10dBm
Package / Case	48-LFCSP
Operating Temperature	-40°C ~ 85°C
Data Interface	PCB, Surface Mount
Antenna Connector	PCB, Surface Mount
Packaging	Tape & Reel (TR)
Memory Size	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADF7021 NBCPZ RL7 ADF7021NBCPZRL7
