ADG772BCPZ-REEL7, ADG7748R, ADG774A

Table of contents:
Info of ADG772BCPZ-REEL7
Info of ADG7748R
Info of ADG774A

ADG772BCPZ-REEL7, ADG7748R, ADG774A Selling Leads, Datasheet

MFG:Analog Devices Inc (VA) Category:Integrated Circuits (ICs) Package Cooled:SOP16S D/C:912

ADG772BCPZ-REEL7, ADG7748R, ADG774A Datasheet download

Five Points

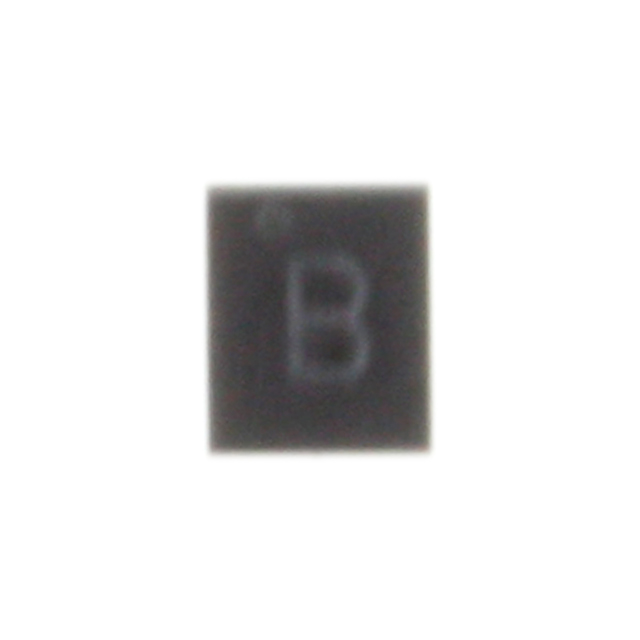

Part Number: ADG772BCPZ-REEL7

Category: Integrated Circuits (ICs)

MFG: Analog Devices Inc (VA)

Package Cooled: SOP16S

D/C: 912

Description: IC MUX DUAL 2:1 UNIV USB 10LFCSP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ADG772BCPZ-REEL7 Parameters

Technical/Catalog Information	ADG772BCPZ-REEL7
Vendor	Analog Devices Inc (VA)
Category	Integrated Circuits (ICs)
Type	Multiplexer/Demultiplexer
Voltage Supply Source	Single Supply
Voltage - Supply, Single/Dual (±)	2.7 V ~ 3.6 V
Circuit	1 x 2:1
On-State Resistance	6.7 Ohm
Mounting Type	Surface Mount
Package / Case	10-LFCSP
Packaging	Cut Tape (CT)
Current - Supply	0.006A
Operating Temperature	-40°C ~ 85°C
Function	Multiplexer/Demultiplexer
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADG772BCPZ REEL7 ADG772BCPZREEL7 ADG772BCPZ REEL7CT ND ADG772BCPZREEL7CTND ADG772BCPZ-REEL7CT

ADG774A General Description

The ADG774A is a monolithic CMOS device comprising four 2:1 multiplexer/demultiplexers with high impedance outputs. The CMOS process provides low power dissipation yet gives high switching speed and low on resistance. The on-resistance variation is typically less than 0.5? over the input signal range.

The bandwidth of the ADG774A is typically 400MHz and this, coupled with low distortion (typically 0.3%), makes the part suitable for switching of high-speed data signals.

The on-resistance profile is very flat over the full analog input range ensuring excellent linearity and low distortion. CMOS con-struction ensures ultralow power dissipation.

The ADG774A operates from a single 3.3V/5 V supply and is TTL logic compatible. The control logic for each switch is shown in the Truth Table.

These switches conduct equally well in both directions when ON. In the OFF condition, signal levels up to the supplies are blocked. The ADG774A switches exhibit break-before-make switching action.

ADG774A Maximum Ratings

V_DD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +6 V
Analog, Digital Inputs² . . . . . . . . . . . 0.3 V to VDD + 0.3 V or
    . . . . . . . . . . . . . . . . . . . . . . . 30 mA, Whichever Occurs First
Continuous Current, S or D . . . . . . . . . . . . . . . . . . . . 100 mA
Peak Current, S or D . . . . . . . . . . . . . . . . . . . . . . . . . . 300 mA
                                       (Pulsed at 1 ms, 10% Duty Cycle max)
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
QSOP Package, Power Dissipation   . . . . . . . . . . . . . . 566 mW
   JA Thermal Impedance . . . . . . . . . . . . . . . . . . 149.97°C/W
Lead Temperature, Soldering
   Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . 215°C
   Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220°C

ADG774A Features

Bandwidth >400 MHz
Low Insertion Loss and On Resistance: 2.2 Typical
On-Resistance Flatness 0.3 Typical
Single 3 V/5 V Supply Operation
Very Low Distortion: <0.3%
Low Quiescent Supply Current (1 nA Typical)
Fast Switching Times
t_ON 6 ns
t_OFF 3 ns
TTL/CMOS Compatible

ADG774A Connection Diagram
