MFG:Alpha & Omega Semiconductor Inc Category:Discrete Semiconductor Products Package Cooled:SOT-163 D/C:09+(ROHS)
AO6405L, AO6407, AO6408 Datasheet download
Category: Discrete Semiconductor Products
MFG: Alpha & Omega Semiconductor Inc
Package Cooled: SOT-163
D/C: 09+(ROHS)
Description: MOSFET N-CH 20V 8.8A 6-TSOP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: AO6400
File Size: 323437 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AO6407
File Size: 284930 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AO6408
File Size: 431854 KB
Manufacturer: ALPHA
Download : Click here to Download
| Paramete | Symbol | Maximum | Units | |
| Drain-Source Voltage | VDS | -20 | V | |
| Gate-Source Voltage | VGS | ±8 | V | |
| Continuous Drain Current A | TA=25°C | ID | -5.5 | A |
| TA=70°C | -4.5 | |||
| Pulsed Drain Current B | IDM | -30 | ||
| Power Dissipation A | TA=25°C | PD | 2 | W |
| TA=70°C | 1.44 | |||
| Junction and Storage Temperature Range | TJ, TSTG | -55 to 150 | °C | |

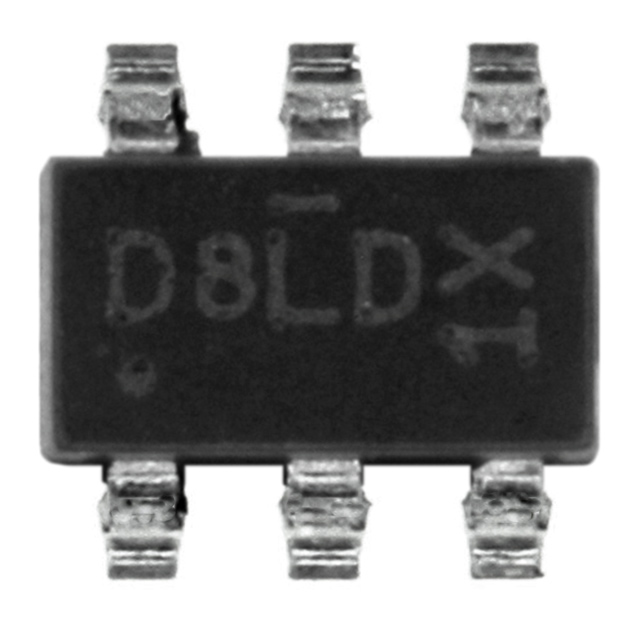

| Technical/Catalog Information | AO6408 |
| Vendor | Alpha & Omega Semiconductor Inc |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25° C | 8.8A |
| Rds On (Max) @ Id, Vgs | 18 mOhm @ 8.8A, 10V |
| Input Capacitance (Ciss) @ Vds | 2200pF @ 10V |
| Power - Max | 2W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 22nC @ 4.5V |
| Package / Case | 6-TSOP |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | AO6408 AO6408 785 1073 2 ND 78510732ND 785-1073-2 |
The AO6408 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It offers operation over a wide gate drive range from 1.8V to 12V. It is ESD protected. This device is suitable for use as a load switch. Standard product AO6408 is Pbfree (meets ROHS & Sony 259 specifications). AO6408L is a Green Product ordering option. AO6408 and AO6408L are electrically identical.
| Parameter |
Symbol |
Maximum |
Units | |
| Drain-Source Voltage |
VDS |
20 |
V | |
| Gate-Source Voltage |
VGS |
±12 |
V | |
| Continuous Drain Current A |
TA=25°C |
ID
|
8.8 |
A |
| TA=70°C |
7 |
A | ||
| Pulsed Drain Current B |
IDM |
40 |
A | |
| Power Dissipation | TA=25°C |
PD |
2 |
W |
| TA=70°C |
1.28 |
W | ||
| Junction and Storage Temperature Range |
TJ, TSTG |
-55 to 150 |
°C | |
