MFG:Alpha & Omega Semiconductor Inc Category:Discrete Semiconductor Products Package Cooled:SOT-252 D/C:2009+
AOD448, AOD450, AOD452 Datasheet download
Category: Discrete Semiconductor Products
MFG: Alpha & Omega Semiconductor Inc
Package Cooled: SOT-252
D/C: 2009+

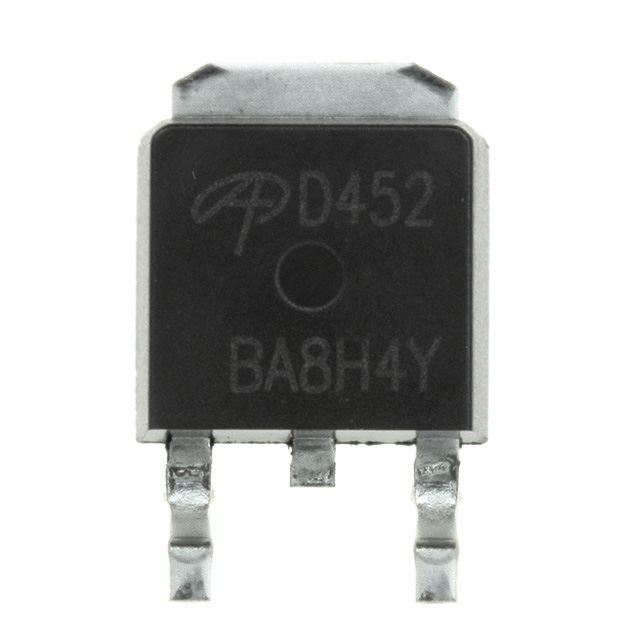

Description: MOSFET N-CH 25V 55A TO-252
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: AOD448
File Size: 442924 KB
Manufacturer: ALPHA
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AOD450
File Size: 442924 KB
Manufacturer: ALPHA
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AOD452
File Size: 445460 KB
Manufacturer: ALPHA
Download : Click here to Download
The AOD448 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. This device is suitable for use in PWM, load switching and general purpose applications. Standard Product AOD448 is Pb-free (meets ROHS & Sony 259 specifications). AOD448L is a Green Product ordering option. AOD448 and AOD448L are electrically identical.
|
Parameter |
Symbol |
Maximum |
Units | |
| Drain-Source Voltage Gate-Source Voltage |
VDS VGS |
30 ±20 |
V V | |
| Continuous Drain Current B.G |
TC=25°C G TC=100°C B |
ID |
75 56 |
A |
| Pulsed Drain CurrentC |
IDM |
200 | ||
| Avalanche Current C Repetitive avalanche energy L=0.3mH C |
IAR EAR |
30 45 |
A mJ | |
| Power Dissipation B |
TC=25°C TC=100°C |
PD |
50 25 |
W |
| Power Dissipation A | TA=25°C TA=70°C |
PDSM |
6.3 4 |
W |
| Junction and Storage Temperature Range |
TJ, TSTG |
-55 to 175 |
°C | |
| Technical/Catalog Information | AOD452 |
| Vendor | Alpha & Omega Semiconductor Inc |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 25V |
| Current - Continuous Drain (Id) @ 25° C | 55A |
| Rds On (Max) @ Id, Vgs | 8.5 mOhm @ 30A, 10V |
| Input Capacitance (Ciss) @ Vds | 1476pF @ 12.5V |
| Power - Max | 50W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 32nC @ 10V |
| Package / Case | DPak,SC-63,TO-252 (2 leads+tab) |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | AOD452 AOD452 785 1109 2 ND 78511092ND 785-1109-2 |
