AOD472, AOD476, AOD480

Table of contents:
Info of AOD472
Info of AOD476
Info of AOD480

AOD472, AOD476, AOD480 Selling Leads, Datasheet

MFG:Alpha & Omega Semiconductor Inc (VA) Category:Discrete Semiconductor Products Package Cooled:SOT-252 D/C:07+

AOD472, AOD476, AOD480 Datasheet download

Five Points

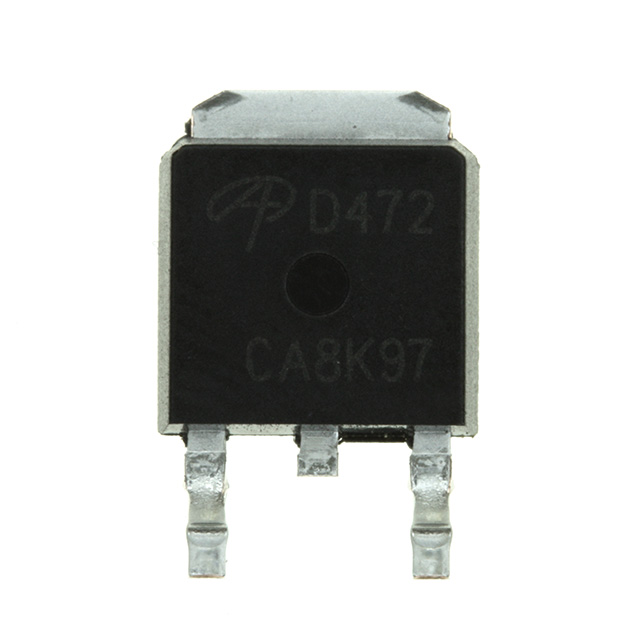

Part Number: AOD472

Category: Discrete Semiconductor Products

MFG: Alpha & Omega Semiconductor Inc (VA)

Package Cooled: SOT-252

D/C: 07+

Description: MOSFET N-CH 30V 25A TO-252

Price Break

2500
5000
10000

Unit Price

.26880
.25536
.24960

Extended Price

672.00
1276.80
2496.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

AOD472 Parameters

Technical/Catalog Information	AOD472
Vendor	Alpha & Omega Semiconductor Inc
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25° C	55A
Rds On (Max) @ Id, Vgs	6 mOhm @ 30A, 10V
Input Capacitance (Ciss) @ Vds	2460pF @ 12.5V
Power - Max	150W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	50nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AOD472 AOD472 785 1111 2 ND 78511112ND 785-1111-2

AOD472 General Description

The AOD472 uses advanced trench technology and design to provide excellent R_DS(ON) with low gate charge. This device is suitable for use in PWM, load switching and general purpose applications. Standard product AOD472 is Pb-free (meets ROHS & Sony 259 specifications). AOD472L is a Green Product ordering option. AOD472 and AOD472L are electrically identical.

AOD472 Maximum Ratings

Parameter		Symbol	Maximum	Units
Drain-Source Voltage Gate-Source Voltage		V_DS V_GS	25 ±20	V V
Continuous Drain Current ^B	T_C=25°C T_C=100°C	I_D	50 50	A
Pulsed Drain Current^C		I_DM	150	A
Avalanche Current^C Repetitive avalanche energy L=0.3mH^C		I_ARE_AR	30 135	A mJ
Power Dissipation ^B	T_C=25°C T_C=100°C	P_D	50 25	W
Power Dissipation ^A	T_A=25°C T_A=70°C	P_DSM	3 2.1	W
Junction and Storage Temperature Range		T_J, T_STG	-55 to 175	°C

AOD472 Features

·V_DS (V) = 25V
·I_D = 50A (V_GS = 10V)
·R_DS(ON) <6 mΩ (V_GS = 10V)
·R_DS(ON) <9.5 mΩ (V_GS = 4.5V)

AOD476 Parameters

Technical/Catalog Information	AOD476
Vendor	Alpha & Omega Semiconductor Inc (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	25A
Rds On (Max) @ Id, Vgs	21 mOhm @ 20A, 10V
Input Capacitance (Ciss) @ Vds	900pF @ 10V
Power - Max	33.3W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	18nC @ 10V
Package / Case	DPak,SC-63,TO-252 (2 leads+tab)
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AOD476 AOD476 785 1112 6 ND 78511126ND 785-1112-6

AOD480 Parameters

Technical/Catalog Information	AOD480
Vendor	Alpha & Omega Semiconductor Inc (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	25A
Rds On (Max) @ Id, Vgs	23 mOhm @ 20A, 10V
Input Capacitance (Ciss) @ Vds	820pF @ 15V
Power - Max	33W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	14nC @ 10V
Package / Case	DPak,SC-63,TO-252 (2 leads+tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AOD480 AOD480 785 1113 6 ND 78511136ND 785-1113-6
