AOZ1014DI, AOZ1015AI, AOZ1016

AOZ1014DI, AOZ1015AI, AOZ1016 Selling Leads, Datasheet

MFG:Alpha & Omega Semiconductor Inc (VA)  Category:Integrated Circuits (ICs)  Package Cooled:3000  D/C:AOS AOZ1014DI

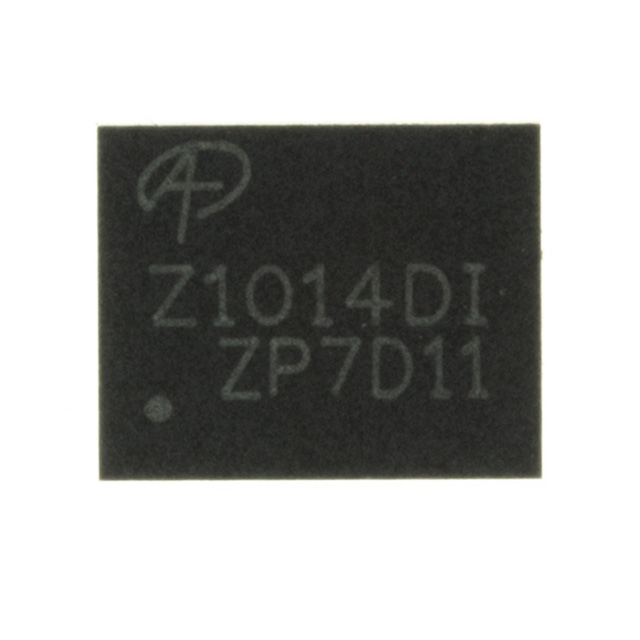

AOZ1014DI Picture

AOZ1014DI, AOZ1015AI, AOZ1016 Datasheet download

Five Points

Part Number: AOZ1014DI

Category: Integrated Circuits (ICs)

MFG: Alpha & Omega Semiconductor Inc (VA)

Package Cooled: 3000

D/C: AOS AOZ1014DI

Description: IC 1.5A NON-SYNC BUCK REG 8-SOIC
