General Description
AOZ1010 General Description
The AOZ1010 is a high efficiency, simple to use, 2A buck regulator. The AOZ1010 works from a 4.5V to 16V input voltage range, and provides up to 2A of continuous output current with an output voltage adjustable down to 0.8V.
The AOZ1010 comes in an SO-8 package and is rated over a -40°C to +85°C ambient temperature range.
AOZ1010 Maximum Ratings
| Parameter | Units |
| Supply Voltage (VN ) | 18V |
| LX to AGND | -0.7V to VIN+0.3V |
| EN to AGND | -0.3V to VIN+0.3V |
| FB to AGND | -0.3V to 6V |
| COMP to AGND | -0.3V to 6V |
| PGND to AGND | -0.3V to +0.3V |
| Junction Temperature (TJ) | +150°C |
| Storage Temperature (TS) | -65°C to +150°C |
AOZ1010 Features
• 4.5V to 16V operating input voltage range
• 130 m internal PFET switch for high efficiency: up to 95%
• Internal Schottky Diode
• Internal soft start
• Output voltage adjustable to 0.8V
• 2A continuous output current
• Fixed 500kHz PWM operation
• Cycle-by-cycle current limit
• Short-circuit protection
• Thermal shutdown
• Small size SO-8 package
• 130 m internal PFET switch for high efficiency: up to 95%
• Internal Schottky Diode
• Internal soft start
• Output voltage adjustable to 0.8V
• 2A continuous output current
• Fixed 500kHz PWM operation
• Cycle-by-cycle current limit
• Short-circuit protection
• Thermal shutdown
• Small size SO-8 package
AOZ1010 Typical Application
• Point of load dc/dc conversion
• PCIe graphics cards
• Set top boxes
• DVD drives and HDD
• LCD panels
• Cable modems
• Telecom/Networking/Datacom equipment
• PCIe graphics cards
• Set top boxes
• DVD drives and HDD
• LCD panels
• Cable modems
• Telecom/Networking/Datacom equipment

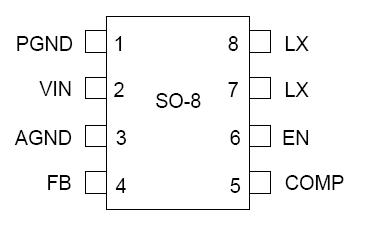

AOZ1010 Connection Diagram
AOZ1010
PDF/DataSheet Download
- Datasheet: AOZ1010
- File Size: 579717 KB
- Manufacturer: AOSMD [ Alpha & Omega Semiconductors ]
- Click here to Download
