AT-32033-TR1G, AT-32063, AT32063TR1

Table of contents:
Info of AT-32033-TR1G
Info of AT-32063
Info of AT32063TR1

AT-32033-TR1G, AT-32063, AT32063TR1 Selling Leads, Datasheet

MFG:Avago Technologies US Inc. Category:Discrete Semiconductor Products Package Cooled:Original Package D/C:08+/09+

AT-32033-TR1G, AT-32063, AT32063TR1 Datasheet download

Five Points

Part Number: AT-32033-TR1G

Category: Discrete Semiconductor Products

MFG: Avago Technologies US Inc.

Package Cooled: Original Package

D/C: 08+/09+

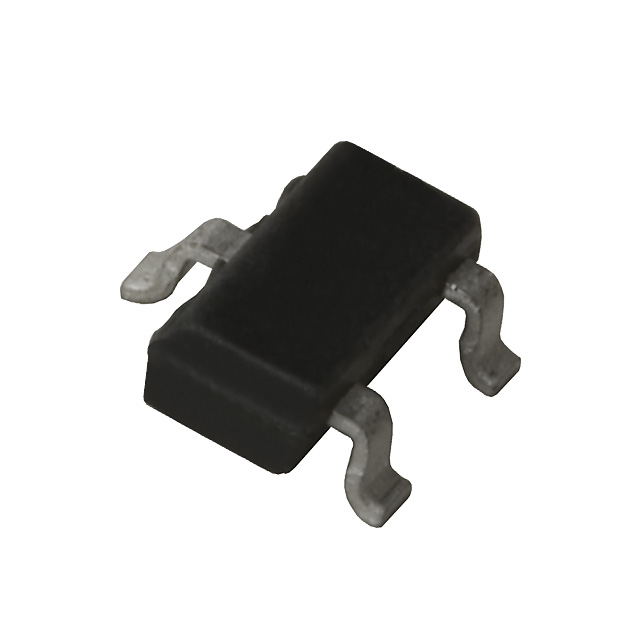

Description: IC TRANS NPN BIPOLAR SOT-23

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

AT-32033-TR1G Parameters

Technical/Catalog Information	AT-32033-TR1G
Vendor	Avago Technologies US Inc.
Category	Discrete Semiconductor Products
Frequency - Transition	-
Noise Figure (dB Typ @ f)	1dB ~ 1.3dB @ 900MHz
Current - Collector (Ic) (Max)	32mA
DC Current Gain (hFE) (Min) @ Ic, Vce	70 @ 2mA, 2.7V
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	5.5V
Gain	11dB ~ 12.5dB
Power - Max	200mW
Compression Point (P1dB)	-
Package / Case	SOT-23
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AT 32033 TR1G AT32033TR1G 516 1566 2 ND 51615662ND 516-1566-2

AT-32063 General Description

The AT-32063 contains two high performance NPN bipolar transistors in a single SOT-363 package. The devices are unconnected, allowing flexibility in design. The pin-out is convenient for cascode amplifier designs. The SOT-363
package is an industry standard plastic surface mount package.

The 3.2 micron emitter-to-emitter pitch and reduced parasitic design of the transistor yields extremely high performance products that can perform a multiplicity of tasks. The 20 emitter finger interdigitated geometry yields a
transistor that is easy to match to and extremely fast, with moderate power, low noise resistance, and low operating currents.

Optimized performance at 2.7 V makes this device ideal for use in 900 MHz, 1.8 GHz, and 2.4 GHz battery operated systems as an Surface Mount Package SOT-363 (SC-70) Pin Connections and

LNA, gain stage, buffer, oscillator, or active mixer. Typical amplifier designs at 900 MHz yield 1.3 dB noise figures with 12 dB or more associated gain at a 2.7 V, 5 mA bias, with noise performance being relatively insensitive to
input match. High gain capability at 1 V, 1 mA makes this device a good fit for 900 MHz pager applications. Voltage breakdowns are high enough for use at 5 volts.

The AT-3 series bipolar transistors are fabricated using an optimized version of Hewlett-Packard's 10 GHz f t , 30 GHz fmax Self-Aligned-Transistor (SAT) process. The die are nitride passivated for surface protection. Excellent
device uniformity, performance and reliability are produced by the use of ion-implantation,selfalignment techniques, and gold metallization in the fabrication of these devices.

AT-32063 Maximum Ratings

Symbol	Parameter	Units	Absolute Maximum
V_EBO	Emitter-Base Voltage	V	1.5
V_CBO	Collector-Base Voltage	V	11
V_CEO	Collector-Emitter Voltage	V	5.5
I_C	Collector Current	mA	40
P_T	Power Dissipation ^[2,3]	mW	150
T_j	Junction Temperature	°C	150
T_STG	Storage Temperature	°C	-65 to 150

AT-32063 Features

• High Performance Bipolar Transistor Optimized for Low Current, Low Voltage Operation
• 900 MHz Performance:1.1 dB NF, 14.5 dB G _A• Characterized for End-of-Life Battery Use (2.7 V)
• SOT-363 (SC-70) Plastic Package
• Tape-and-Reel Packaging Option Available ^[1]

AT-32063 Connection Diagram
