MFG:Infineon Technologies (VA) Category:Discrete Semiconductor Products Package Cooled:SOT363 D/C:08+
BSD223P, BSD254A, BSGSS/U902 Datasheet download
Category: Discrete Semiconductor Products
MFG: Infineon Technologies (VA)

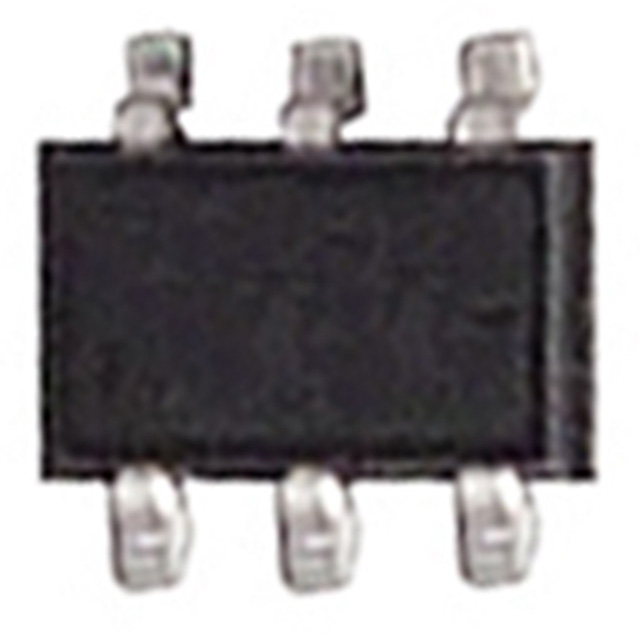

Package Cooled: SOT363
D/C: 08+
Description: MOSFET DUAL PCH 30V 390MA SOT363
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: BSD223P
File Size: 76428 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: BSD22
File Size: 40755 KB
Manufacturer: PHILIPS [Philips Semiconductors]
Download : Click here to Download
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | BSD223P |
| Vendor | Infineon Technologies (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | 2 P-Channel (Dual) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25° C | 390mA |
| Rds On (Max) @ Id, Vgs | 1.2 Ohm @ 390mA, 4.5V |
| Input Capacitance (Ciss) @ Vds | 56pF @ 15V |
| Power - Max | 250mW |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 0.62nC @ 4.5V |
| Package / Case | SC-70-6, SC-88, SOT-323-6, SOT-363 |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | BSD223P BSD223P BSD223PINDKR ND BSD223PINDKRND BSD223PINDKR |
| Parameter | Symbol | Value | Unit |
| Continuous drain current TA=25°C TA=70°C |
ID | -0.39 -0.31 |
A |
| Pulsed drain current TA=25°C |
ID puls | -1.56 | A |
| Avalanche energy, single pulse ID=-0.39 A , VDD=-10V, RGS=25 |
EAS | 1.4 | mJ |
| Reverse diode dv/dt IS=-0.39A, VDS=-16V, di/dt=200A/s, Tjmax=150°C |
dv/dt | -6 | kV/s |
| Gate source voltage | VGS | ±12 | V |
| Power dissipation TA=25°C |
Ptot | 0.25 | W |
| Operating and storage temperature | Tj , Tstg | -55... +150 | °C |
| IEC climatic category; DIN IEC 68-1 | 55/150/5 |
