MFG:Infineon Technologies Category:Discrete Semiconductor Products Package Cooled:SOT23-3 D/C:.

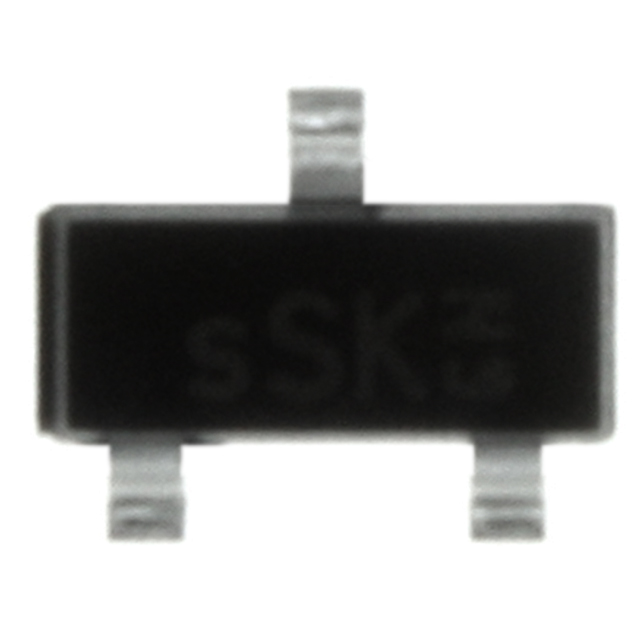

BSS7728N, BSS78, BSS78K Datasheet download
Category: Discrete Semiconductor Products
MFG: Infineon Technologies
Package Cooled: SOT23-3
D/C: .
Description: MOSFET N-CH 60V 200MA SOT-23
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: BSS7728N
File Size: 110235 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: BSS100
File Size: 291374 KB
Manufacturer: SIEMENS [Siemens Semiconductor Group]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: BSS100
File Size: 291374 KB
Manufacturer: SIEMENS [Siemens Semiconductor Group]
Download : Click here to Download
| Technical/Catalog Information | BSS7728N |
| Vendor | Infineon Technologies |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25° C | 200mA |
| Rds On (Max) @ Id, Vgs | 5 Ohm @ 500mA, 10V |
| Input Capacitance (Ciss) @ Vds | 56pF @ 25V |
| Power - Max | 360mW |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 1.5nC @ 10V |
| Package / Case | SOT-23 |
| FET Feature | Logic Level Gate |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | BSS7728N BSS7728N BSS7728NINTR ND BSS7728NINTRND BSS7728NINTR |
| Parameter | Symbol | Value | Unit |
| Continuous drain current TA=25 TA=70 |
I D | 0.2 0.16 |
A |
| Pulsed drain current TA=25 |
I D,pulse | 0.8 | |
| Reverse diode dv /dt IS=-0.2A, VDS=48V, di/dt=-200A/s, Tjmax=150 |
dv /dt | 6 | kV/s |
| Gate source voltage | VGS | ±20 | V |
| Power dissipation TA=25 |
Ptot | 0.36 | W |
| Operating and storage temperature | T j, T stg | -55... +150 | |
| IEC climatic category; DIN IEC 68-1 | 55/150/56 |
