BTS5235L, BTS5236-2GS, BTS5240L661

BTS5235L, BTS5236-2GS, BTS5240L661 Selling Leads, Datasheet

MFG:Infineon Technologies (VA)  Category:Integrated Circuits (ICs)  Package Cooled:2008+ROHS  D/C:4100

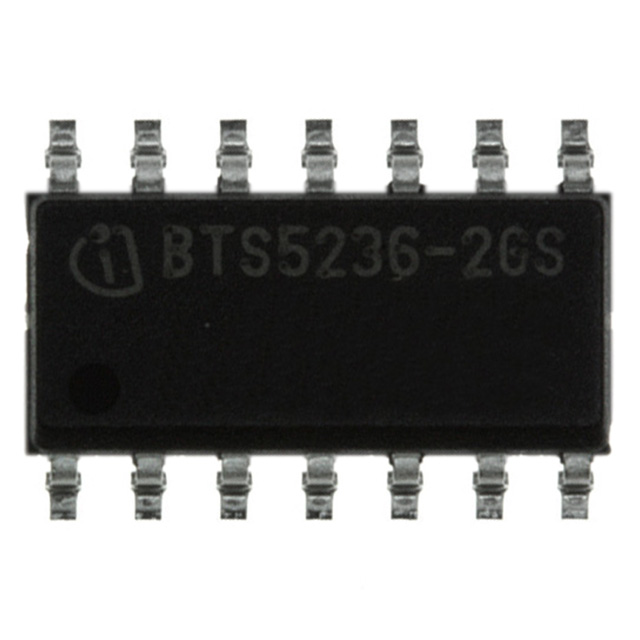

BTS5236-2GS Picture

BTS5235L, BTS5236-2GS, BTS5240L661 Datasheet download

Five Points

Part Number: BTS5236-2GS

Category: Integrated Circuits (ICs)

MFG: Infineon Technologies (VA)

Package Cooled: 2008+ROHS

D/C: 4100

Description: IC PWR SWITCH HISIDE PGDSO-14-32






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

BTS5235L Suppliers

More BTS5235L Suppliers

Select All

  • BTS5235L

  • Vendor: INFINEON Pack: SOP12 Qty: 3500 Note: in stock&original parts  Adddate: 2017-12-16
  • Inquire Now
  • HK Niuhuasi Technology Limited   China
    Contact: Ms.Becky   MSN:QQ:2713246646
    Tel: 86-755-82577272
    Fax: 86-755-82767002
    (17708)
  • BTS5235L

  • Vendor: INFINEON Pack: HSOP12 D/C: 10+& Qty: 7953 Note: NEW  Adddate: 2017-12-16
  • Inquire Now
  • Mega Source Elec Ltd   Hong
    Contact: Ms.hellen
    Tel: 86-755-83690382
    Fax: 86-755-61624458
    (13314)
  • BTS5235L

  • Vendor: INFINEON D/C: 2016+& Qty: 45000 Note: Original & RoHs  Adddate: 2017-12-16
  • Inquire Now
  • IC Agent Electronics LTD   Hong
    Contact: Ms.jennifer   MSN:lvphk@hotmail.com
    Tel: 00-852-69648614
    Fax: 00-852-69648615
    (8965)
  • BTS100

  • Vendor: siemens Qty: 7800  Adddate: 2017-12-16
  • Inquire Now
  • HK Green System LTD   China
    Contact: Ms.ucy Yang   MSN:QQ:
    Tel: 86-755-83294452
    Fax: 86-755-83294452
    (10225)
  • BTS100

  • Qty: 12099 Note: New,unused in stock and at lower price in perfect quality!!!  Adddate: 2017-12-16
  • Inquire Now
  • Beijing huadong shiji teconolgy Co.,Lt   China
    Contact: Mr.zimingjiang   MSN:hddz-006@hotmail.com
    Tel: 86-010-62575888 805
    Fax: 86-010-62575899
    (5)

About BTS100

PDF/DataSheet Download

Datasheet: BTS100

File Size: 447180 KB

Manufacturer: SIEMENS [Siemens Semiconductor Group]

Download : Click here to Download

Related PDF Download

Related Part Number

BTS5236-2GS Suppliers

More BTS5236-2GS Suppliers

Select All

  • BTS5236-2GS

  • Vendor: INFINEON Pack: SOP14 Qty: 10500 Note: in stock&original parts  Adddate: 2017-12-16
  • Inquire Now
  • HK Niuhuasi Technology Limited   China
    Contact: Ms.Becky   MSN:QQ:2713246646
    Tel: 86-755-82577272
    Fax: 86-755-82767002
    (17708)
  • BTS5236-2GS

  • Vendor: INFINEON Pack: SOP14 D/C: 09+& Qty: 486168 Note: NEW  Adddate: 2017-12-16
  • Inquire Now
  • Mega Source Elec Ltd   Hong
    Contact: Ms.hellen
    Tel: 86-755-83690382
    Fax: 86-755-61624458
    (13314)
  • BTS5236-2GS

  • Vendor: INFINEON Pack: 10+ D/C: 42591& Qty: SOP/14  Adddate: 2017-12-16
  • Inquire Now
  • BOZX Electronic Co.,Ltd   China
    Contact: Ms.LI
    Tel: 0086-0755-82788163
    Fax: 0086-0755-82788163
    (3374)
  • BTS5236-2GS

  • Vendor: INFINEON Pack: SOP14 D/C: 2016+& Qty: 45000 Note: Original & RoHs  Adddate: 2017-12-16
  • Inquire Now
  • IC Agent Electronics LTD   Hong
    Contact: Ms.jennifer   MSN:lvphk@hotmail.com
    Tel: 00-852-69648614
    Fax: 00-852-69648615
    (8965)
  • BTS100

  • Vendor: siemens Qty: 7800  Adddate: 2017-12-16
  • Inquire Now
  • HK Green System LTD   China
    Contact: Ms.ucy Yang   MSN:QQ:
    Tel: 86-755-83294452
    Fax: 86-755-83294452
    (10225)
  • BTS100

  • Qty: 12099 Note: New,unused in stock and at lower price in perfect quality!!!  Adddate: 2017-12-16
  • Inquire Now
  • Beijing huadong shiji teconolgy Co.,Lt   China
    Contact: Mr.zimingjiang   MSN:hddz-006@hotmail.com
    Tel: 86-010-62575888 805
    Fax: 86-010-62575899
    (5)

About BTS100

PDF/DataSheet Download

Datasheet: BTS100

File Size: 447180 KB

Manufacturer: SIEMENS [Siemens Semiconductor Group]

Download : Click here to Download

Related PDF Download

Related Part Number

BTS5240L661 Suppliers

More BTS5240L661 Suppliers

Select All

  • BTS100

  • Vendor: siemens Qty: 7800  Adddate: 2017-12-16
  • Inquire Now
  • HK Green System LTD   China
    Contact: Ms.ucy Yang   MSN:QQ:
    Tel: 86-755-83294452
    Fax: 86-755-83294452
    (10225)
  • BTS100

  • Qty: 12099 Note: New,unused in stock and at lower price in perfect quality!!!  Adddate: 2017-12-16
  • Inquire Now
  • Beijing huadong shiji teconolgy Co.,Lt   China
    Contact: Mr.zimingjiang   MSN:hddz-006@hotmail.com
    Tel: 86-010-62575888 805
    Fax: 86-010-62575899
    (5)
  • BTS100

  • Vendor: Harris D/C: 04+& Qty: stock  Adddate: 2017-12-16
  • Inquire Now
  • yjgreat   China
    Contact: Mr.vinay
    Tel: 86-10-88508610
    Fax: --
    (3)
  • BTS100

  • Vendor: Harris D/C: 04+&   Adddate: 2017-12-16
  • Inquire Now
  • Ocean Expanding Inc.   China
    Contact: Ms.Candy   MSN:candy@oceanexpanding.com
    Tel: 86-10-88595369
    Fax: 86-10-88460239
    (205)
  • BTS100

  • Vendor: Infineon Pack: TO D/C: 09+& Qty: 52  Adddate: 2017-12-16
  • Inquire Now
  • EK   China
    Contact: Mr.kevin
    Tel: +86-755-111111111
    Fax:
    (1)

About BTS100

PDF/DataSheet Download

Datasheet: BTS100

File Size: 447180 KB

Manufacturer: SIEMENS [Siemens Semiconductor Group]

Download : Click here to Download

Related PDF Download

Related Part Number

BTS5236-2GS Parameters

Technical/Catalog InformationBTS5236-2GS
VendorInfineon Technologies (VA)
CategoryIntegrated Circuits (ICs)
Package / CaseDSO-14-32
Mounting TypeSurface Mount
TypeHigh Side
Voltage - Supply4.5 V ~ 28 V
On-State Resistance40 mOhm
Current - Output / Channel3.2A
Current - Peak Output28A
PackagingDigi-Reel?
Input TypeNon-Inverting
Number of Outputs2
Operating Temperature-40°C ~ 150°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names BTS5236 2GS
BTS52362GS
BTS5236 2GSINDKR ND
BTS52362GSINDKRND
BTS5236-2GSINDKR

BTS5236-2GS General Description

The BTS5236-2GS is designed as one kind of smart high-side power switch. The general description of this device are:(1)N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS 80V technology.; (3)Providing embedded protective functions; (4)An array of resistors is integrated in order to reduce the external components.

The BTS5236-2GS can be used in (1)uC compatible high-side power switch with diagnostic feedback for 12V and 24V and 42V grounded loads; (2)all types of resistive, inductive and capacitive loads; (3)most suitable for inductive loads; (4)replaces electromechanical relays, fuses and discrete circuits. And the basic functions of it are:(1)CMOS compatible input; (2)improved electromagnetic compatibility (EMC); (3)fast demagnetization of inductive loads; (4)stable behaviour at undervoltage; (5)wide operating voltage range; (6)logic ground independent from load ground; (7)optimized inverscurrent capability.

The absolute maximum ratings of the BTS5236-2GS can be summarized as:(1)supply voltage:58 V;(2)supply voltage for full short circuit protection:50 V;(3)output voltage to Vbb:70 V;(4)negative voltage slope at output:20 V/s;(5)load current:IL(LIM) A;(6)operating temperature range:-40 to +150;(7)storage temperature range:-55 to +150;(8)power dissipation (DC):3.0 W;(9)status pull up voltage:±42 V. If you want to know more information such as the electrical characteristics about the BTS5236-2GS, please download the datasheet in www.seekic.com or www.chinaicmart.com .
