DS2003 General Description

The DS2003 is comprised of seven high voltage, high current NPN Darlington transistor pairs. All units feature common emitter, open collector outputs. To maximize their effectiveness, these units contain suppression diodes for inductive loads and appropriate emitter base resistors for leakage.

The DS2003 has a series base resistor to each Darlington pair, thus allowing operation directly with TTL or CMOS operating at supply voltages of 5.0V.

The DS2003 offers solutions to a great many interface needs, including solenoids, relays, lamps, small motors, and LEDs. Applications requiring sink currents beyond the capability of a single output may be accommodated by paralleling the outputs.

DS2003 Maximum Ratings

Temperature Min	-40 deg C
Temperature Max	125 deg C
OutputLow Voltage	1.6 Volt
OutputHigh Voltage	50 Volt
OutputLow Current	350 mA
Propagation Delay	5000 ns
Drivers	7
PowerWise	No
View Using Catalog

DS2003 Features

Seven high gain Darlington pairs
High output voltage (VCE e 50V)
High output current (IC e 350 mA)
TTL, PMOS, CMOS compatible
Suppression diodes for inductive loads
Extended temperature range

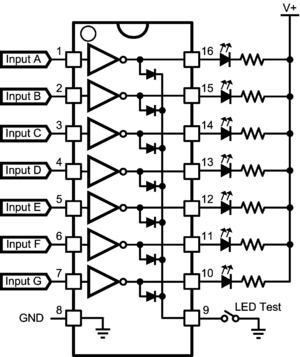

DS2003 Connection Diagram
