DSP1N5S5, DSP200(TMS200), DSP201

Table of contents:
Info of DSP1N5S5
Info of DSP200(TMS200)
Info of DSP201

DSP1N5S5, DSP200(TMS200), DSP201 Selling Leads, Datasheet

MFG:Power-One Category:Power Supplies Package Cooled:BGA D/C:09+

DSP1N5S5, DSP200(TMS200), DSP201 Datasheet download

Five Points

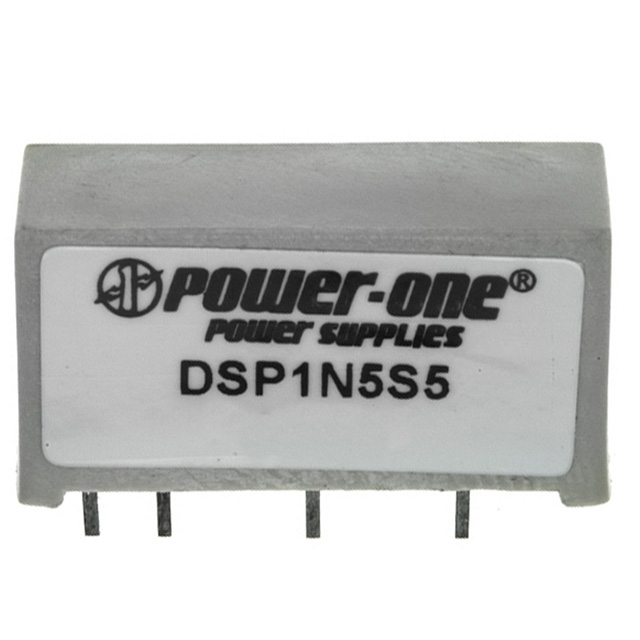

Part Number: DSP1N5S5

Category: Power Supplies

MFG: Power-One

Package Cooled: BGA

D/C: 09+

Description: CONVERTER DC-DC 1W 5V SGL

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

DSP1N5S5 Parameters

Technical/Catalog Information	DSP1N5S5
Vendor	Power-One
Category	Power Supplies
Voltage - Input	5VDC
Output	5V
Power (Watts)	1W
Number of Outputs	1
1st Output	5 VDC @ 150mA
2nd Output	-
3rd Output	-
4th Output	-
Type	Isolated
Mounting Type	Through Hole
Packaging	Bulk
Package / Case	4-SIP MODULE
RoHS Status	RoHS Compliant by Exemption
Other Names	DSP1N5S5 DSP1N5S5 179 1068 ND 1791068ND 179-1068

DSP201 General Description

The DSP201 and DSP202 are high performance digital- to-analog converters designed for simplicity of use with modern digital signal processing ICs. Both are complete with all interface logic for use directly with DSP ICs, and provide analog output voltages updated at up to 500kHz.

The DSP201 offers a single complete voltage output channel, accepting either 16 bits or 18 bits of input data, and can be driven by 16-bit, 24-bit, or 32-bit serial ports. The DSP202 offers two complete voltage output channels, with either two separate input ports, or a mode to drive both output channels from a single 32-bit word.

Both the DSP201 and DSP202 are packaged in standard, low-cost 28-pin plastic DIP packages. Each is offered in two performance grades to match application requirements.

DSP201 Maximum Ratings

VA+ to Analog Common .................................................................... +7V
VA to Analog Common................................................................... 7V
VD+ to Digital Common .................................................................... +7V
VD to Digital Common ................................................................... 7V
Analog Common to Digital Common ................................................. ±1V
Control Inputs to Digital Common .............................. 0.5 to V_D + 0.5V
Maximum Junction Temperature ..................................................... 150
Internal Power Dissipation .......................................................... 825mW
Lead Temperature (soldering, 10s) .............................................. +300
Thermal Resistance, qJA: Plastic DIP ............................................ 50/W

DSP201 Features

`ZERO-CHIP INTERFACE TO DSP ICs: AD, AT&T, MOTOROLA, TI
`SINGLE CHANNEL: DSP201
`DUAL CHANNEL: DSP202 Two Serial Inputs or Cascade from Single 32-Bit Word
`UPDATE RATE TO 500kHz
`DYNAMIC SPECIFICATIONS:
`Signal/(Noise + Distortion) = 90dB; THD = 92dB
`USER SELECTABLE 16-BIT OR 18-BIT DATA WORDS

DSP201 Connection Diagram
