FCAF497, FCAS50SN60, FCAT20ND60

Table of contents:
Info of FCAF497
Info of FCAS50SN60
Info of FCAT20ND60

FCAF497, FCAS50SN60, FCAT20ND60 Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:FCAE D/C:95+

FCAF497, FCAS50SN60, FCAT20ND60 Datasheet download

Five Points

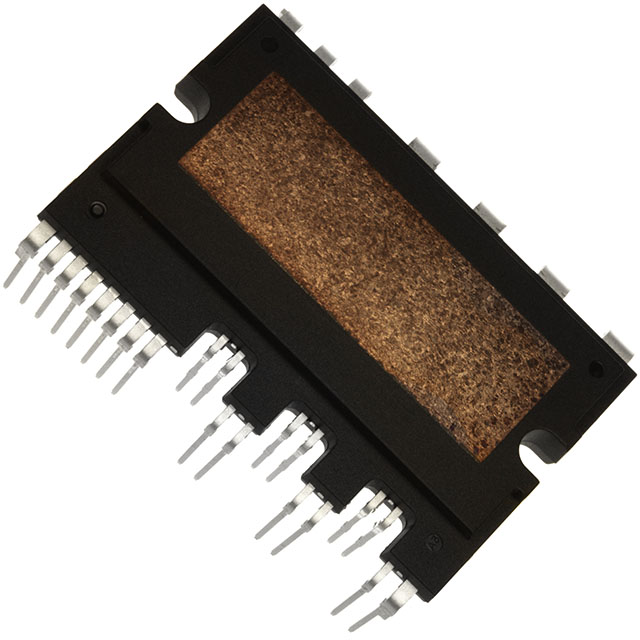

Part Number: FCAS50SN60

Category: Integrated Circuits (ICs)

MFG: Fairchild Semiconductor

Package Cooled: FCAE

D/C: 95+

Description: IC POWER MODULE 600V 50A 27PIN

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FCAS50SN60 Parameters

Technical/Catalog Information	FCAS50SN60
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Applications	AC Motor Driver
Number of Outputs	1
Voltage - Supply	13.5 V ~ 16.5 V
Voltage - Load	300 V ~ 450 V
Current - Output	50A
Operating Temperature	-20°C ~ 95°C
Package / Case	27-DIP
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FCAS50SN60 FCAS50SN60

FCAS50SN60 General Description

FCAS50SN60 is an advanced smart power module for SRM drive that Fairchild has newly developed and designed to pro- vide very compact and high performance SRM motor drives mainly targeting low-power inverter-driven SRM application especially for a vacuum air cleaner. It combines optimized cir- cuit protection and drive matched to low-loss IGBTs. System reliability is further enhanced by the integrated under-voltage lock-out and short-circuit protection. The high speed built-in HVIC provides opto-coupler-less IGBT gate driving capability that further reduce the overall size of the inverter system design. In addition the incorporated HVIC facilitates the use of single-supply drive topology enabling the FCAS50SN60 to be driven by only one drive supply voltage without negative bias.

Each phase current of inverter can be monitored separately due to the divided negative dc terminals.

FCAS50SN60 Maximum Ratings

Symbol	Parameter	Conditions	Rating	Units
VPN(Surge)	Supply Voltage (Surge)	Applied between P- NA , NB1 , NB2	550	V
VCES	Collector-emitter Voltage		600	V
± IC	Each IGBT Collector Current	TC = 25°C	50	A
± ICP	Each IGBT Collector Current (Peak)	TC = 25°C, Under 1ms Pulse Width	100	A
PC	Collector Dissipation	TC = 25°C per One IGBT	110	W
TJ	Operating Junction Temperature	(Note 1)	- 20 ~125	°C

FCAS50SN60 Features

* Very low thermal resistance due to using DBC
* 600V-50A single-phase asymmetric bridge IGBT converter
for SRM drive including control ICs for gate driving and pro-tection
* Divided negative dc-link terminals for inverter current sensing applications
* Single-grounded power supply due to built-in HVIC
* Switching frequency of 2.2~8kHz
* Isolation rating of 2500Vrms/min.

FCAS50SN60 Typical Application

* AC 200V ~ 242V single-phase SRM drives for home application vacuum cleaner.

FCAS50SN60 Connection Diagram
