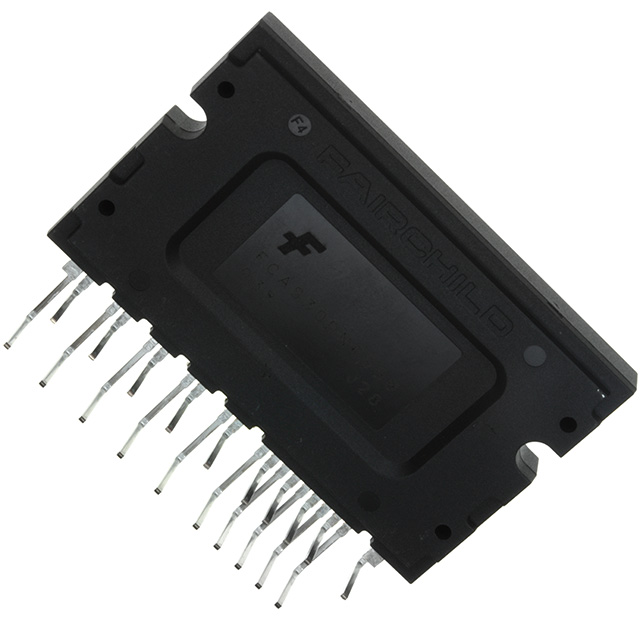

MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:06+ D/C:2010+
FCAS30DN60BB, FC-ASP-1, FCAU0660A Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor
Package Cooled: 06+
D/C: 2010+
Description: MODULE SPM FOR SRM 600V SPM20-BC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FCA16N60
File Size: 591286 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FC-255
File Size: 206552 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FCA16N60
File Size: 591286 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | FCAS30DN60BB |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Applications | AC Motor Driver |
| Number of Outputs | 1 |
| Voltage - Supply | 13.5 V ~ 16.5 V |
| Voltage - Load | 300 V ~ 450 V |
| Current - Output | 500mA |
| Operating Temperature | -20°C ~ 125°C |
| Package / Case | SPM20BC |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FCAS30DN60BB FCAS30DN60BB |
FCAS30DN60BB is an advanced smart power module for SRMdrive that Fairchild has newly developed and designed to providevery compact and high performance SRM motor drivesmainly targeting low-power SRM application especially for avacuum air cleaner. It combines optimized circuit protection anddrive matched to low-loss IGBTs. System reliability is furtherenhanced by the integrated under-voltage lock-out and shortcircuitprotection. The high speed built-in HVIC provides optocoupler-less IGBT gate driving capability that further reduce theoverall size of the system. In addition the incorporated HVICfacilitates the use of single-supply drive topology enabling theFCAS30DN60BB to be driven by only one drive supply voltagewithout negative bias.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FCAS30DN60BB | Full Production | RoHS Compliant | $17.94 | SPM20-BC | 20 | RAIL | N/A | Line 1: $Y (Fairchild logo) Line 2: FCAS30DN60BB Line 3: &H&E&E&E&E&E&3 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FCAS30DN60BB is available. Click here for more information . |
