FDP8878, FDP8880, FDP8896

Table of contents:
Info of FDP8878
Info of FDP8880
Info of FDP8896

FDP8878, FDP8880, FDP8896 Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:TO-220 D/C:TO

FDP8878, FDP8880, FDP8896 Datasheet download

Five Points

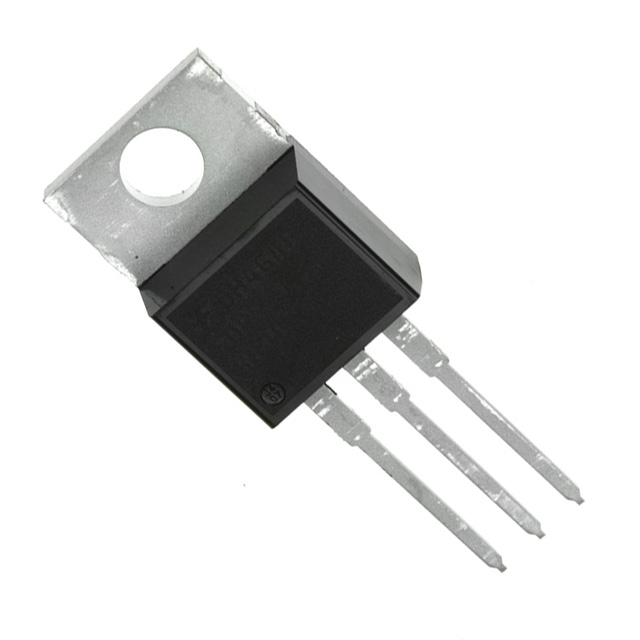

Part Number: FDP8878

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: TO-220

D/C: TO

Description: MOSFET N-CH 30V 92A TO-220AB

Price Break

1
10
100
250
500
1000
5000

Unit Price

.88000
.66000
.49500
.36520
.30800
.29260
.28050

Extended Price

0.88
6.60
49.50
91.30
154.00
292.60
1402.50

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDP8878 Parameters

Technical/Catalog Information	FDP8878
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	40A
Rds On (Max) @ Id, Vgs	15 mOhm @ 40A, 10V
Input Capacitance (Ciss) @ Vds	1235pF @ 15V
Power - Max	40.5W
Packaging	Tube
Gate Charge (Qg) @ Vgs	23nC @ 10V
Package / Case	TO-220AB
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDP8878 FDP8878

FDP8880 Parameters

Technical/Catalog Information	FDP8880
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	54A
Rds On (Max) @ Id, Vgs	11.6 mOhm @ 40A, 10V
Input Capacitance (Ciss) @ Vds	1240pF @ 15V
Power - Max	55W
Packaging	Tube
Gate Charge (Qg) @ Vgs	29nC @ 10V
Package / Case	TO-220AB
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDP8880 FDP8880

FDP8880 General Description

This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low r_DS(ON) and fast switching speed.

FDP8880 Maximum Ratings

Symbol	Parameter	Ratings	Units
V_DSS	Drain-Source Voltage	30	V
V_GSS	Gate-Source Voltage	±20	V
I_D	Drain Current Continuous (T_C = 25, V_GS = 10V)	54	A
	Continuous (T_C = 100, V_GS = 10V)	48	A
	Continuous (T_amb = 25, V_GS = 10V, R_JA = 43/W)	11	A
	Pulsed	Figure 4	A
E_AS	Single Pulse Avalanche Energy (Note 1)	31	mJ
P_D	Power dissipation	55	W
P_D	Derate above 25	0.37	W/°C
T_J, T_stg	Operating and Storage Temperature	-55 to 175	°C

FDP8880 Features

r_DS(ON)= 14.5mΩ , V_GS= 4.5V, I_D =40A
r_DS(ON)= 11.6mΩ , V_GS= 10V, I_D = 40A
High performance trench technology for extremely low r_DS(ON) Low gate charge
High power and current handling capability

FDP8880 Typical Application

DC/DC converters

FDP8896 Parameters

Technical/Catalog Information	FDP8896
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	92A
Rds On (Max) @ Id, Vgs	5.9 mOhm @ 35A, 10V
Input Capacitance (Ciss) @ Vds	2525pF @ 15V
Power - Max	80W
Packaging	Tube
Gate Charge (Qg) @ Vgs	67nC @ 10V
Package / Case	TO-220AB
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDP8896 FDP8896

FDP8896 General Description

FDP8896 Maximum Ratings

Symbol	Parameter	Ratings	Units
V_DSS	Drain to Source Voltage	30	V
V_GS	Gate to Source Voltage	±20	V
I_D	Drain Current Continuous (T_C=25, V_GS= 10V)	92	A
	Continuous (T_C =25, V_GS =4.5V)	985	A
	Continuous (T_amb = 25, V_GS = 10V, R_JA= 62/W)	16	A
	Pulsed	Figure 4	A
E_AS	Single Pulse Avalanche Energy (Note 1)	74	mJ
P_D	Power dissipation	80	W
P_D	Derate above 25	0.53	W/
TJ, T_STG	Operating and Storage Temperature	-55 to 175

FDP8896 Features

• r_DS(ON) = 5.9mΩ, V_GS= 10V, I_D = 35A
• r_DS(ON) = 7.0mΩ, V_GS = 4.5V, I_D= 35A
• High performance trench technology for extremely low rDS(ON)
• Low gate charge
• High power and current handling capability

FDP8896 Typical Application

• DC/DC converters
