MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:TO-220 D/C:2010+
FDP8N60C, FDPF10N50FT, FDPF10N60ZUT Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Package Cooled: TO-220
D/C: 2010+
Description: MOSFET N-CH 500V 9A TO-220F
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FDP038AN06A0
File Size: 287554 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDP038AN06A0
File Size: 287554 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDP038AN06A0
File Size: 287554 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download

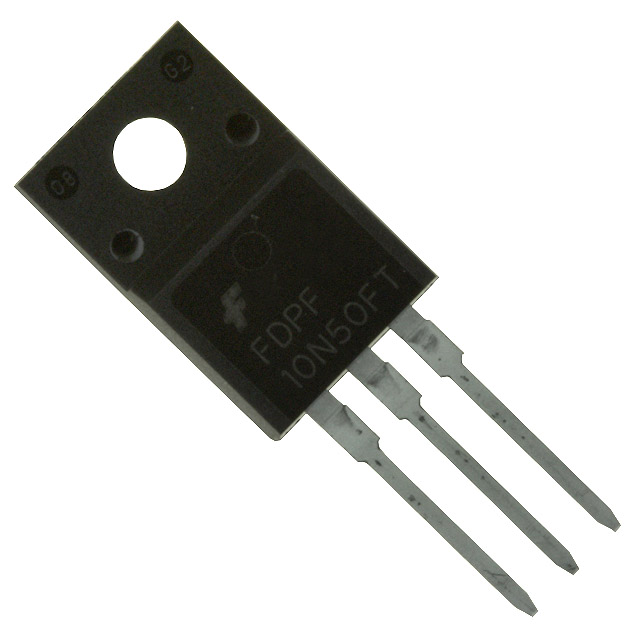

| Technical/Catalog Information | FDPF10N50FT |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Through Hole |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 500V |
| Current - Continuous Drain (Id) @ 25° C | 9A |
| Rds On (Max) @ Id, Vgs | 850 mOhm @ 4.5A, 10V |
| Input Capacitance (Ciss) @ Vds | 1170pF @ 25V |
| Power - Max | 42W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 24nC @ 10V |
| Package / Case | TO-220F |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDPF10N50FT FDPF10N50FT |
These N-Channel enhancement mode power field effect transistorsare produced using Fairchild?s proprietary, planar stripe,DMOS technology.
This advance technology has been especially tailored to minimizeon-state resistance, provide superior switching performance,and withstand high energy pulse in the avalanche andcommutation mode. These devices are well suited for high efficientswitching mode power supplies and active power factorcorrection.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FDPF10N50FT | Full Production | RoHS Compliant | $1.10 | TO-220F | 3 | RAIL | N/A | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) &K Line 2: FDPF Line 3: 10N50FT |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FDPF10N50FT is available. Click here for more information . |
