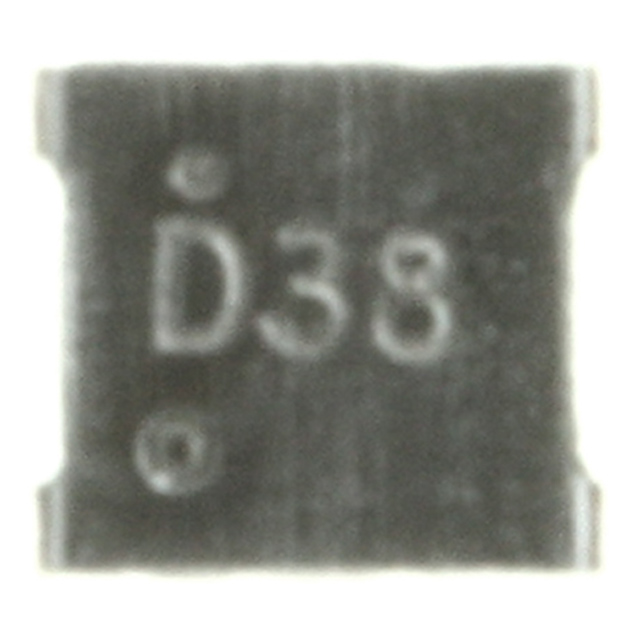

Combining Fairchild's advanced 1.5V specified PowerTrench process with state of the art BGA packaging, the FDZ291P minimizes both PCB space and RDS(ON) . This BGA MOSFET embodies a breakthrough in packaging technology which enables the device to combine excellent thermal transfer characteristics, high current handling capability, ultra-low profile packaging, low gate charge, and low RDS(ON) .
FDZ291P Maximum Ratings
Symbol
Parameter
Ratings
Units
VDSS
Drain-Source Voltage
-20
V
VGSS
Gate-Source Voltage
±18
V
ID
Drain Current Continuous (Note 1a) Pulsed
4.6
A
10
PD
Power Dissipation (Steady State) (Note 1a)
1.7
W
TJ, TSTG
Operating and Storage Junction Temperature Range
-55 to +150
°C
FDZ291P Features
* 4.6 A, 20 V RDS(ON) = 40 m @ VGS = 4.5 V RDS(ON) = 60 m @ VGS = 2.5 V RDS(ON) = 160 m @ VGS = 1.5 V * Occupies only 2.25 mm2 of PCB area. Less than 50% of the area of a SSOT-6 * Ultra-thin package: less than 0.85 mm height when mounted to PCB * Outstanding thermal transfer characteristics: 4 times better than SSOT-6 * Ultra-low Qg x RDS(ON) figure-of-merit * High power and current handling capability.
Combining Fairchild's advanced 2.5V specified PowerTrench process with state of the art BGA packaging, the FDZ293P minimizes both PCB space and R DS(ON) . This BGA MOSFET embodies a breakthrough in packaging technology which enables the device to combine excellent thermal transfer characteristics, high current handling capability, ultra-low profile packaging, low gate charge, and low R DS(ON) .
FDZ293P Maximum Ratings
Symbol
Parameter
Ratings
Units
VDSS
Drain-Source Voltage
-20
V
VGS
Gate-Source Voltage
±12
V
ID
Drain Current Continuous (Note 1a) Pulsed
-4.6
A
-10
PD
Power Dissipation for Single Operation(Note 1a)
1.7
W
TJ, TSTG
Operating and Storage Temperature
-55 to 150
FDZ293P Features
`4.6 A, 20 V R DS(ON) = 46 mΩ @ VGS= 4.5 V RDS(ON)= 72 mΩ@ VGS= 2.5 V `Occupies only 2.25 mm2of PCB area. Less than 50% of the area of a SSOT-6 `Ultra-thin package: less than 0.85 mm height when mounted to PCB `Outstanding thermal transfer characteristics: 4 times better than SSOT-6 `Ultra-low Qg x RDS(ON)figure-of-merit `High power and current handling capability.
Combining Fairchild's advanced 2.5V specified PowerTrench process with state of the art BGA packaging, the FDZ294N minimizes both PCB space and RDS(ON) . This BGA MOSFET embodies a breakthrough in packaging technology which enables the device to combine excellent thermal transfer characteristics, high current handling capability, ultra-low profile packaging, low gate charge, and low RDS(ON) .
FDZ294N Maximum Ratings
Symbol
Parameter
Ratings
Units
VDSS
Drain-Source Voltage
20
V
VGSS
Gate-Source Voltage
±12
V
ID
Drain Current Continuous (Note 1a) Pulsed
6
A
10
PD
Power Dissipation (Steady State) (Note 1a)
1.7
W
TJ, TSTG
Operating and Storage Junction Temperature Range
-55 to +150
°C
FDZ294N Features
* 6 A, 20 V RDS(ON) = 23 m @ VGS = 4.5 V RDS(ON) = 34 m @ VGS = 2.5 V * Occupies only 2.25 mm2 of PCB area. Less than 50% of the area of a SSOT-6 * Ultra-thin package: less than 0.85mm height when mounted to PCB * Outstanding thermal transfer characteristics: 4 times better than SSOT-6 * Ultra-low Qg x RDS(ON) figure-of-merit * High power and current handling capability.
