FPF1008, FPF1009, FPF1013

Table of contents:
Info of FPF1008
Info of FPF1009
Info of FPF1013

FPF1008, FPF1009, FPF1013 Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:MicroFET D/C:2010+

FPF1008, FPF1009, FPF1013 Datasheet download

Five Points

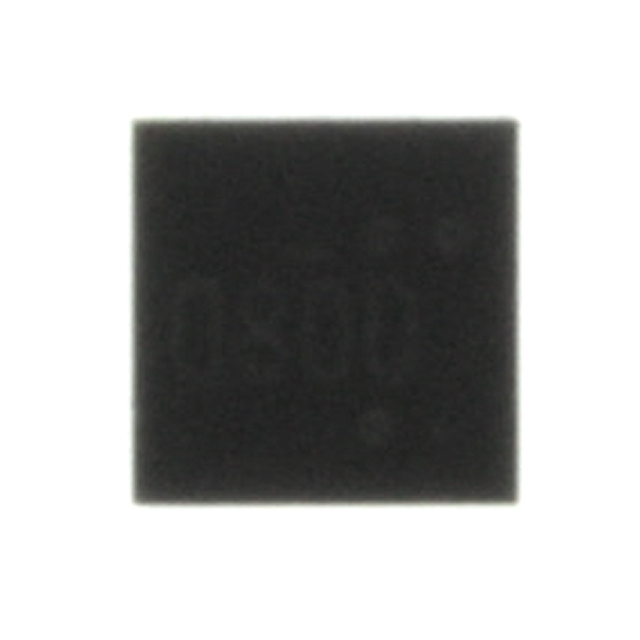

Part Number: FPF1008

Category: Integrated Circuits (ICs)

MFG: Fairchild Semiconductor

Package Cooled: MicroFET

D/C: 2010+

Description: IC LOAD SWITCH 1V ADVANCE 6WLCSP

Price Break

3000
6000
12000

Unit Price

.28600
.28050
.27500

Extended Price

858.00
1683.00
3300.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FPF1008 Parameters

Technical/Catalog Information	FPF1008
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Type	High Side Switch
Number of Outputs	1
Voltage - Input	1.2 ~ 5.5 V
Package / Case	MicroFET-6
Packaging	Tape & Reel (TR)
Current Limit	1.5A
Internal Switch(s)	Yes
Operating Temperature	-40°C ~ 85°C
Rds (On)	40 mOhm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FPF1008 FPF1008 FPF1008TR ND FPF1008TRND FPF1008TR

FPF1008 General Description

The FPF1007/8/9 are low RDS P-Channel MOSFET loadswitches offered in a selection of 10µs, 80µs, and 1ms slew rateturn-on options for transient/in-rush current control. To supporttrends in mobile application requirements the minimumoperating input voltage has been reduced down to 1.2V, theinput current leakage has been minimized to extend battery life,and the ESD-protection has been designed to withstand aminimum of 8KV (HBM) and 2KV(CDM).

The switch is controlled by an active-high logic input (ON pin)allowing it to interface directly with a low voltage control signal.An internal ON pin pull down resistor protects against anunintentional device turn-on while in the initial state. An On-chippull-down resistor on the output is enabled when the switch isturned-off and provides a quick and robust discharge of theoutput load.

FPF1008 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FPF1008	Full Production	Green	$0.57	MicroFET	6	TAPE REEL		Line 1: &E&Y (Binary Calendar Year Coding) Line 2: &O008&C Line 3: &.&O&V

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FPF1008 is available. Click here for more information .

FPF1009 Parameters

Technical/Catalog Information	FPF1009
Vendor	Fairchild Semiconductor (VA)
Category	Integrated Circuits (ICs)
Type	High Side Switch
Number of Outputs	1
Voltage - Input	1.2 ~ 5.5 V
Package / Case	MicroFET-6
Packaging	Digi-Reel?
Current Limit	1.5A
Internal Switch(s)	Yes
Operating Temperature	-40°C ~ 85°C
Rds (On)	40 mOhm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FPF1009 FPF1009 FPF1009DKR ND FPF1009DKRND FPF1009DKR

FPF1009 General Description

FPF1009 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FPF1009	Full Production	Green	$0.57	MicroFET	6	TAPE REEL		Line 1: &E&Y (Binary Calendar Year Coding) Line 2: &O009&C Line 3: &.&O&V

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FPF1009 is available. Click here for more information .

FPF1013 Parameters

Technical/Catalog Information	FPF1013
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Type	High Side Switch
Number of Outputs	1
Voltage - Input	0.8 ~ 1.8 V
Package / Case	6-WLCSP
Packaging	Tape & Reel (TR)
Current Limit	1.5A
Internal Switch(s)	Yes
Operating Temperature	-40°C ~ 85°C
Rds (On)	27 mOhm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FPF1013 FPF1013

FPF1013 General Description

The FPF1013/4 series is an IntelliMAX advanced slew rateloadswitch offering a very low operating voltage. These devicesconsist of a 17mΩ N-channel MOSFET that supports an inputvoltage up to 2.0V. These slew rate devices control the switchturn-on and prevent excessive in-rush current from the supplyrails. The input voltage range operates from 0.8V to 1.8V tofulfill today's lowest Ultraportable Device's supply requirements.Switch control is via a logic input (ON) capable of interfacingdirectly with low voltage control signals.

The FPF1014 has an On-Chip pull down allowing for quick andcontrolled output discharge when switch is turned off. TheFPF1013/4 series is available in a space-saving 1X1.5 CSP-6Lpackage.

FPF1013 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FPF1013	Full Production	Green	$0.60	1.0x1.5 WL-CSP	6	TAPE REEL		Line 1: Q4&K Line 2: &.&2&Z

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FPF1013 is available. Click here for more information .
