FPF2006, FPF2007, FPF2100

Table of contents:
Info of FPF2006
Info of FPF2007
Info of FPF2100

FPF2006, FPF2007, FPF2100 Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Integrated Circuits (ICs) Package Cooled:06 PB D/C:05+NOPB

FPF2006, FPF2007, FPF2100 Datasheet download

Five Points

Part Number: FPF2006

Category: Integrated Circuits (ICs)

MFG: Fairchild Semiconductor (VA)

Package Cooled: 06 PB

D/C: 05+NOPB

Description: IC LOAD SWITCH FULL FUNC SOT23-5

Price Break

1
25
100
1000

Unit Price

.83000
.68760
.55000
.36575

Extended Price

0.83
17.19
55.00
365.75

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FPF2006 Parameters

Technical/Catalog Information	FPF2006
Vendor	Fairchild Semiconductor (VA)
Category	Integrated Circuits (ICs)
Type	High Side Switch
Number of Outputs	1
Voltage - Input	1.8 ~ 5.5 V

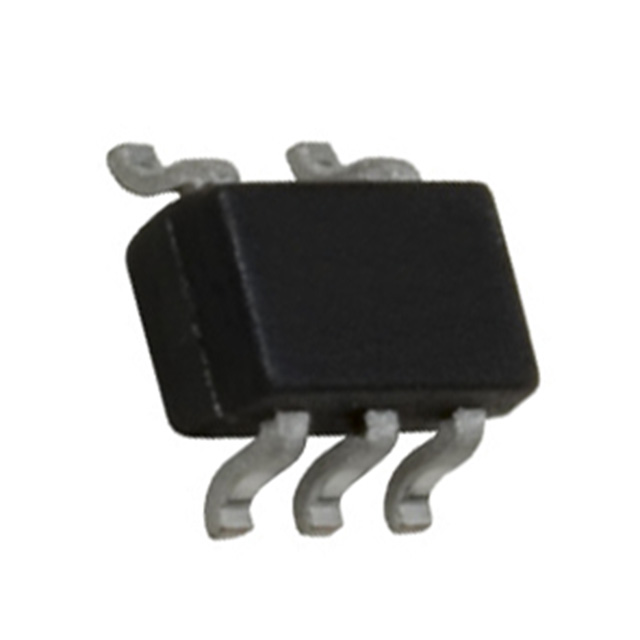

Package / Case	SC-70-5, SC-88A, SOT-323-5, SOT-353
Packaging	Digi-Reel?
Current Limit	100mA
Internal Switch(s)	Yes
Operating Temperature	-40°C ~ 85°C
Rds (On)	1 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FPF2006 FPF2006 FPF2006DKR ND FPF2006DKRND FPF2006DKR

FPF2006 General Description

The FPF2000 through FPF2007 is a family of load switches whichprovide full protection to systems and loads which may encounterlarge current conditions. These devices contain a 0.7Wcurrent-limited P-channel MOSFET which can operate over aninput voltage range of 1.8-5.5V. Switch control is by a logic input(ON) capable of interfacing directly with low voltage control signals.Each part contains thermal shutdown protection which shuts off theswitch to prevent damage to the part when a continuousover-current condition causes excessive heating.

When the switch current reaches the current limit, the partoperates in a constant current mode to prohibit excessive currentsfrom causing damage. For the FPF2000-FPF2002 andFPF2004-FPF2006, if the constant current condition still persistsafter 10ms, these parts will shut off the switch and pull the faultsignal pin (FLAGB) low. The FPF2000, FPF2001, FPF2004 andFPF2005, have an auto-restart feature which will turn the switch onagain after 80ms if the ON pin is still active. The FPF2002 andFPF2006 do not have this auto-restart feature so the switch willremain off until the ON pin is cycled. For the FPF2003 andFPF2007, a current limit condition will immediately pull the faultsignal pin low and the part will remain in the constant-current modeuntil the switch current falls below the current limit. For theFPF2000 through FPF2003, the minimum current limit is 50mAwhile that for the FPF2004 through FPF2007 is 100mA.

These parts are available in a space-saving 5 pin SC-70 package.

FPF2006 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FPF2006	Full Production	RoHS Compliant	$0.36	SC70	5	TAPE REEL		Line 1: &E&Y (Binary Calendar Year Coding) Line 2: &O206&C Line 3: &.&O&V

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FPF2006 is available. Click here for more information .

FPF2006 Features

1.8 to 5.5V Input Voltage Range
Controlled Turn-On
50mA and 100mA Current Limit Options
Under voltage Lockout
Thermal Shutdown
<1uA Shutdown Current
Auto Restart
Fast Current limit Response Time
• 3us to Moderate Over Currents
• 20ns to Hard Shorts
Fault Blanking

FPF2006 Typical Application

PDAs
Cell Phones
GPS Devices
MP3 Players
Digital Cameras
Peripheral Ports
Hot Swap Supplies

FPF2006 Connection Diagram

FPF2007 Parameters

Technical/Catalog Information	FPF2007
Vendor	Fairchild Semiconductor (VA)
Category	Integrated Circuits (ICs)
Type	High Side Switch
Number of Outputs	1
Voltage - Input	1.8 ~ 5.5 V
Package / Case	SC-70-5, SC-88A, SOT-323-5, SOT-353
Packaging	Cut Tape (CT)
Current Limit	100mA
Internal Switch(s)	Yes
Operating Temperature	-40°C ~ 85°C
Rds (On)	1 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FPF2007 FPF2007 FPF2007CT ND FPF2007CTND FPF2007CT

FPF2007 General Description

These parts are available in a space-saving 5 pin SC-70 package.

FPF2007 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FPF2007	Full Production	RoHS Compliant	$0.36	SC70	5	TAPE REEL		Line 1: &E&Y (Binary Calendar Year Coding) Line 2: &O207&C Line 3: &.&O&V

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FPF2007 is available. Click here for more information .

FPF2100 Parameters

Technical/Catalog Information	FPF2100
Vendor	Fairchild Semiconductor (VA)
Category	Integrated Circuits (ICs)
Type	High Side Switch
Number of Outputs	1
Voltage - Input	1.8 ~ 5.5 V
Package / Case	SOT-23-5
Packaging	Digi-Reel?
Current Limit	200mA
Internal Switch(s)	Yes
Operating Temperature	-40°C ~ 85°C
Rds (On)	160 mOhm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FPF2100 FPF2100 FPF2100DKR ND FPF2100DKRND FPF2100DKR

FPF2100 General Description

The FPF2100 through FPF2107 is a family of load switcheswhich provide full protection to systems and loads which mayencounter large current conditions. These devices contain a0.125W current-limited P-channel MOSFET which can operateover an input voltage range of 1.8-5.5V. Switch control is by alogic input (ON) capable of interfacing directly with low voltagecontrol signals. Each part contains thermal shutdown protectionwhich shuts off the switch to prevent damage to the part when acontinuous over-current condition causes excessive heating.

When the switch current reaches the current limit, the partoperates in a constant-current mode to prohibit excessivecurrents from causing damage. For the FPF2100-FPF2102 andFPF2104-FPF2106, if the constant current condition stillpersists after 10ms, these parts will shut off the switch and pullthe fault signal pin (FLAGB) low. The FPF2100, FPF2101,FPF2104 and FPF2105, have an auto-restart feature which willturn the switch on again after 160ms if the ON pin is still active.The FPF2102 and FPF2106 do not have this auto-restartfeature so the switch will remain off until the ON pin is cycled.For the FPF2103 and FPF2107, a current limit condition willimmediately pull the fault signal pin low and the part will remainin the constant-current mode until the switch current falls belowthe current limit. For the FPF2100 through FPF2103, theminimum current limit is 200mA while that for the FPF2104through FPF2107 is 400mA.

These parts are available in a space-saving 5 pin SOT23 package

FPF2100 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FPF2100	Full Production	RoHS Compliant	$0.40	SOT-23	5	TAPE REEL		Line 1: &E&E&Y (Binary Calendar Year Coding) Line 2: &O2100&C Line 3: &.&O&E&V

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FPF2100 is available. Click here for more information .

FPF2100 Features

1.8 to 5.5V Input Voltage Range
Controlled Turn-On
200mA and 400mA Current Limit Options
Undervoltage Lockout
Thermal Shutdown
<1uA Shutdown Current
Auto restart
Fast Current limit Response Time
3us to Moderate Over Currents
20ns to Hard Shorts
Fault Blanking

FPF2100 Typical Application

PDAs
Cell Phones
GPS Devices
MP3 Players
Digital Cameras
Peripheral Ports
Hot Swap Supplies

FPF2100 Connection Diagram
