MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:TO-252(DPAK) D/C:06+
FQD7N10TF, FQD7N10TM, FQD7N20TF Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Package Cooled: TO-252(DPAK)
D/C: 06+
Description: MOSFET N-CH 200V 5.3A DPAK
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FQD10N20
File Size: 590060 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FQD10N20
File Size: 590060 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FQD10N20
File Size: 590060 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download

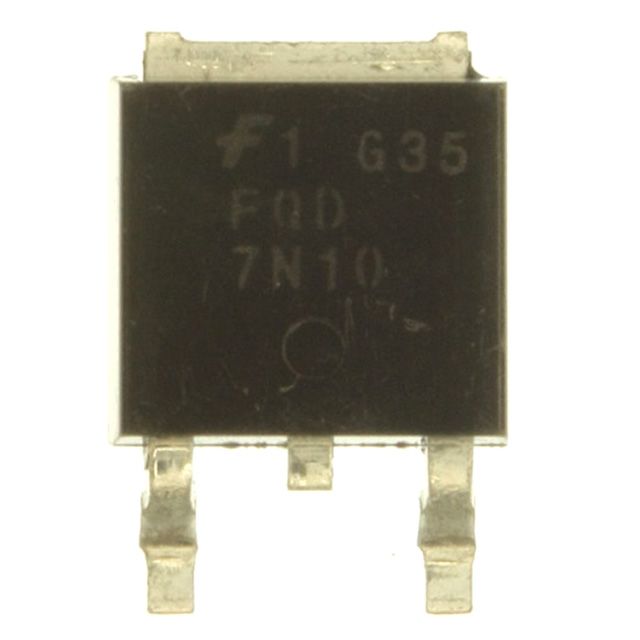

| Technical/Catalog Information | FQD7N10TM |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25° C | 5.8A |
| Rds On (Max) @ Id, Vgs | 350 mOhm @ 2.9A, 10V |
| Input Capacitance (Ciss) @ Vds | 250pF @ 25V |
| Power - Max | 2.5W |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 7.5nC @ 10V |
| Package / Case | DPak, SC-63, TO-252 (2 leads+tab) |
| FET Feature | Standard |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FQD7N10TM FQD7N10TM FQD7N10TMDKR ND FQD7N10TMDKRND FQD7N10TMDKR |
| Technical/Catalog Information | FQD7N20TF |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 200V |
| Current - Continuous Drain (Id) @ 25° C | 5.3A |
| Rds On (Max) @ Id, Vgs | 690 mOhm @ 2.65A, 10V |
| Input Capacitance (Ciss) @ Vds | 400pF @ 25V |
| Power - Max | 2.5W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 10nC @ 10V |
| Package / Case | DPak, SC-63, TO-252 (2 leads+tab) |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FQD7N20TF FQD7N20TF |
