MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:N/A D/C:09+
FQG4904, FQH18N50U2, FQH8N100C Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Package Cooled: N/A
D/C: 09+
Description: MOSFET N-CH 1000V 8A TO-247
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FQG4904
File Size: 1185963 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FQH140N10
File Size: 696289 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FQH140N10
File Size: 696289 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
These dual N and P-channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, planar stripe, DMOS technology.
This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for electronic lamp ballast based on half bridge.
| Symbol | Parameter | N-Channel | P-Channel | Units |
| VDSS | Drain-Source Voltage | 400 | -400 | V |
| ID | Drain Current - Continuous (TA = 25) - Continuous (TA = 100) |
0.46 | -0.46 | A |
| 0.29 | -0.29 | A | ||
| IDM | Drain Curent - Pulsed (Note 1) | 3.68 | -3.68 | A |
| VGSS | Gate-Source Voltage | ± 30 | V | |
| dv/dt | Peak Diode Recovery dv/dt (Note 2) | 4.5 | -4.5 | V/ns |
| PD | Power Dissipation (TA = 25) - Derate above 25 |
1.6 | W | |
| 0.013 | W/ | |||
| TJ, TSTG | Operating and Storage Temperature Range | -55 to +150 | ||

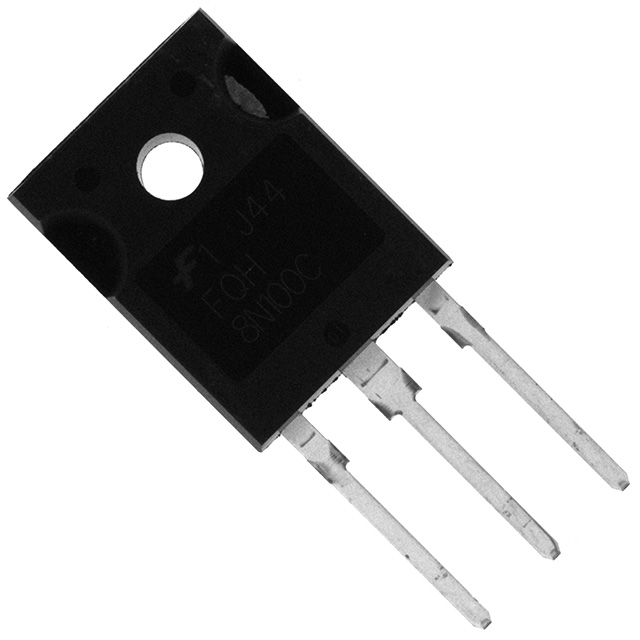

| Technical/Catalog Information | FQH8N100C |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Through Hole |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 1000V (1kV) |
| Current - Continuous Drain (Id) @ 25° C | 8A |
| Rds On (Max) @ Id, Vgs | 1.45 Ohm @ 4A, 10V |
| Input Capacitance (Ciss) @ Vds | 3220pF @ 25V |
| Power - Max | 225W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 70nC @ 10V |
| Package / Case | TO-247 |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FQH8N100C FQH8N100C |
