HIN232, HIN232ACA, HIN232ACB

Table of contents:
Info of HIN232
Info of HIN232ACA
Info of HIN232ACB

HIN232, HIN232ACA, HIN232ACB Selling Leads, Datasheet

MFG:Intersil Category:Integrated Circuits (ICs) Package Cooled:11772+ D/C:08+

HIN232, HIN232ACA, HIN232ACB Datasheet download

Five Points

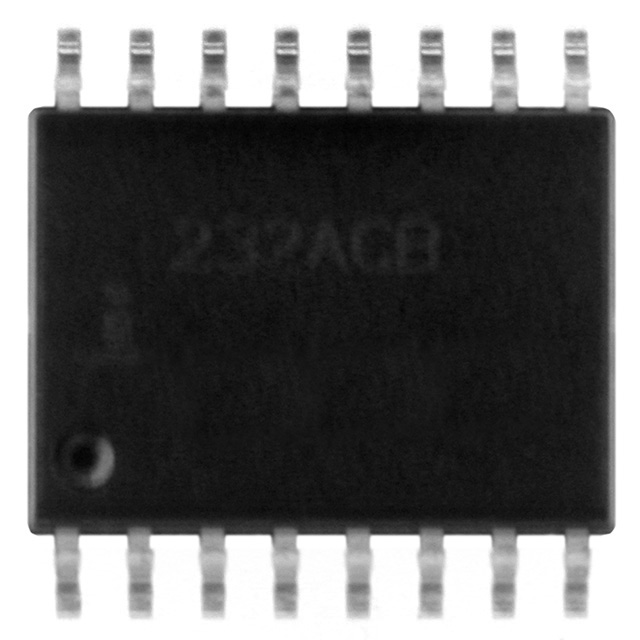

Part Number: HIN232ACB

Category: Integrated Circuits (ICs)

MFG: Intersil

Package Cooled: 11772+

D/C: 08+

Description: IC 2DRVR/2RCVR RS232 5V 16-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

HIN232 Parameters

HIN232 Features

Meets All RS-232E and V.28 Specifications
Requires Only Single +5V Power Supply
- (+5V and +12V - HIN239)
High Data Rate 120kbps
Onboard Voltage Doubler/Inverter
Low Power Consumption
Low Power Shutdown Function
Three-State TTL/CMOS Receiver Outputs
Multiple Drivers
- �10V Output Swing for 5V lnput
- 300Ω Power-Off Source Impedance
- Output Current Limiting
- TTL/CMOS Compatible
- 30V/�s Maximum Slew Rate
Multiple Receivers
- �30V Input Voltage Range
- 3kΩ to 7kΩ Input Impedance
- 0.5V Hysteresis to Improve Noise Rejection

HIN232 General Description

RS-232 Transceiver, 2T/2R, +5V, 120kbps, 1.0?F Capacitors, Icc=5mA

HIN232 Features

Meets All RS-232E and V.28 Specifications
Requires Only Single +5V Power Supply
- (+5V and +12V - HIN239)
High Data Rate 120kbps
Onboard Voltage Doubler/Inverter
Low Power Consumption
Low Power Shutdown Function
Three-State TTL/CMOS Receiver Outputs
Multiple Drivers
- �10V Output Swing for 5V lnput
- 300Ω Power-Off Source Impedance
- Output Current Limiting
- TTL/CMOS Compatible
- 30V/�s Maximum Slew Rate
Multiple Receivers
- �30V Input Voltage Range
- 3kΩ to 7kΩ Input Impedance
- 0.5V Hysteresis to Improve Noise Rejection

HIN232 Typical Application

HIN232 Datasheet

HIN232ACB Parameters

Technical/Catalog Information	HIN232ACB
Vendor	Intersil
Category	Integrated Circuits (ICs)
Number of Drivers/Receivers	2/2
Type	Transceiver
Voltage - Supply	4.5 V ~ 5.5 V
Package / Case	16-SOIC (7.5mm Width)
Packaging	Tube
Protocol	RS232
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	HIN232ACB HIN232ACB
