Part Number: HIN14C89E









Description: The HIN14C89E is a high-ESD tolerant, very low power, quad RS-232 receiver interface circuit that is designed to meet E...


Urgent Purchase

HIN14C89E General Description


The HIN14C89E is a high-ESD tolerant, very low power, quad RS-232 receiver interface circuit that is designed to meet EIA/TIA-232, EIA/TIA-562, and CCITT V.28 specifications.

The receivers can handle up to ±25V, and have a 3 to 7kW input impedance. The receivers have hysteresis and on-chip noise filtering to improve noise rejection and make external filtering components unnecessary. The outputs are TTL and CMOS compatible and operate at 240Kbps.

HIN14C89E Maximum Ratings

VCC to Ground. . . . . . . . . . . . . . . . . . . . . (GND - 0.3V) < VCC < 6V
Input Voltages
Input A - D . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . ±25V
Output Voltages
Output A - D . . . . . . . . . . . . .  (GND -0.3V) < VRXOUT < (V+ +0.3V)
Short Circuit Duration
Output A - D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Continuous
Continuous Total Power Dissipation (TA = 25)
Plastic Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .375mW
Derate -7.0 mW/C above 70
ESD Classification: EIC1000-4-2 Class 4 Compliant

HIN14C89E Features

• Pin-Compatible ESD Upgrade for "1489" Socket
• Meets All RS-232C Specifications
• Enhanced ESD Protection
         - ±15KV Human Body Model
         - ±15KV IEC1000-4-2, Air-Gap Discharge
         - ±8KV IEC1000-4-2, Contact Discharge
• Latch-Up Free During an ESD Event
• Very Low Power Consumption (1mA Typical)
• 240Kbps Data Rate (Typical)
• 4 Receivers per Package
         - ±25V Input Voltage Range
         - 3 to 7kW Input Impedance
         - 0.5V Hysteresis to Improve Noise Rejection
• All Critical Parameters are Guaranteed Over the Entire Commercial Temperature Range
         - Functionally Interchangeable and Pin Compatible with MAX1489E, MC1489, MC14C89A, SN75189, SN75C189, DS1489, DS14C89, and DS14C89A

HIN14C89E Typical Application

• Computers - Portable and Mainframe
• Peripherals - Printers and Terminals
• Modems
• Dataloggers

HIN14C89E Connection Diagram

HIN14C89E Connection Diagram

HIN14C89E datasheet

HIN14C89E
PDF/DataSheet Download

Find HIN14C89E Suppliers

  • ·HIN14C89ECBN
  • INTERSIL [Intersil Corporation]
  • Low Power Quad RS-232 Receiver
  • 89076 KB
  • HIN14C89ECBN Datasheet Download
  • ·HIN14C89ECP
  • INTERSIL [Intersil Corporation]
  • Low Power Quad RS-232 Receiver
  • 89076 KB
  • HIN14C89ECP Datasheet Download
  • ·HIN201
  • INTERSIL [Intersil Corporation]
  • +5V Powered RS-232 Transmitters/Receivers with 0.1Microfarad External Capacitors
  • 208345 KB
  • HIN201 Datasheet Download
  • ·HIN201CB
  • INTERSIL [Intersil Corporation]
  • +5V Powered RS-232 Transmitters/Receivers with 0.1Microfarad External Capacitors
  • 208345 KB
  • HIN201CB Datasheet Download
  • ·HIN201IB
  • INTERSIL [Intersil Corporation]
  • +5V Powered RS-232 Transmitters/Receivers with 0.1Microfarad External Capacitors
  • 208345 KB
  • HIN201IB Datasheet Download
  • ·HIN202
  • INTERSIL [Intersil Corporation]
  • +5V Powered RS-232 Transmitters/Receivers with 0.1Microfarad External Capacitors
  • 208345 KB
  • HIN202 Datasheet Download
  • ·HIN202A
  • INTERSIL [Intersil Corporation]
  • High Speed +5V Powered RS-232 Transmitters/Receivers
  • 253339 KB
  • HIN202A Datasheet Download
  • ·HIN202ACA-T
  • INTERSIL [Intersil Corporation]
  • High Speed +5V Powered RS-232 Transmitters/Receivers
  • 253339 KB
  • HIN202ACA-T Datasheet Download

Related Part Number

HIN14C89E Relative Products

  • HIMP250-S240105

    HIMP250-S240105

    The features of HIMP250-S240105 are as follows: (1)accommodate universal AC sources; (2)meet IEC 61000-3-2 harmonic correction (PFC); (3)meet medical standard EN 60601-1/UL 2601-1; (4)EMI meet EN 55011 & FCC CLASS A. The following is about the absolute ...

  • HIH-5031-001S

    HIH-5031-001S

    SENSOR HUMIDITY 5.5V 3% SMD

  • HIH-5031-001

    HIH-5031-001

    HUMIDITY SENSOR SMD 3% W/FILTER

  • HIH-5030-001S

    HIH-5030-001S

    SENSOR HUMIDITY 5.5V 3% SMD

  • HIH-5030-001

    HIH-5030-001

    HUMIDITY SENSOR SMD 3%

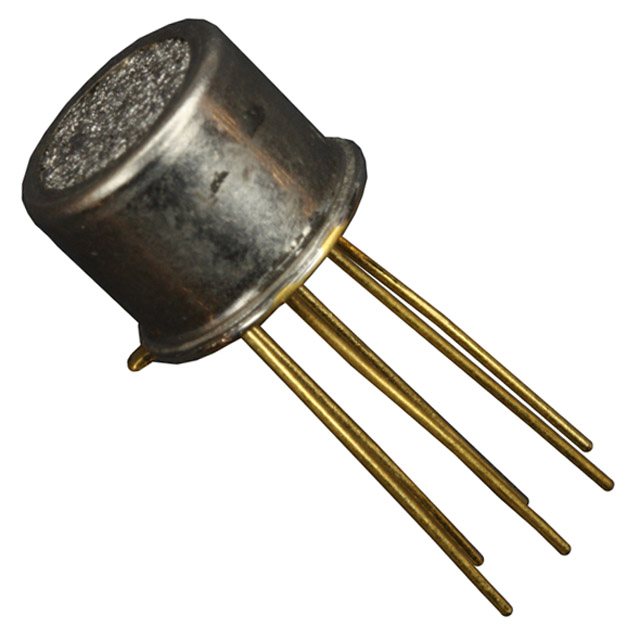

  • HIH-4602-C
