ICE2A265, ICE2A265Z, ICE2A280 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Infineon Technologies
Package Cooled: 2005+
D/C: 21500

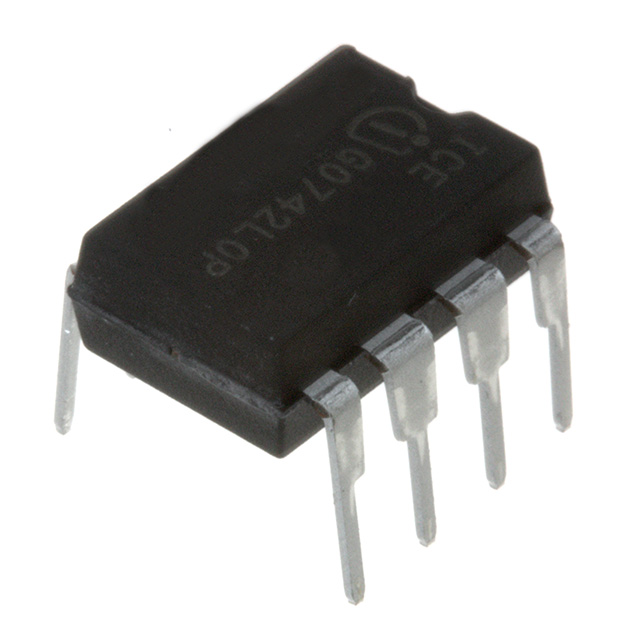

Description: IC OFFLINE CTRLR SMPS CM 8DIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: ICE2A265
File Size: 1532372 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ICE1PCS01
File Size: 869959 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ICE2A280
File Size: 1532372 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
| Technical/Catalog Information | ICE2A265 |
| Vendor | Infineon Technologies |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Package / Case | 8-DIP |
| Power (Watts) | 52W |
| Voltage - Input | 8.5 ~ 22 V |
| Voltage - Output | 650V |
| Frequency Range | 93 ~ 107kHz |
| Operating Temperature | -40°C ~ 150°C |
| Output Isolation | Isolated |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | ICE2A265 ICE2A265 ICE2A265IN ND ICE2A265INND ICE2A265IN |
The second generation COOLSET™-F2 provides several special enhancements to satisfy the needs for low power standby and protection features. In standby mode frequency reduction is used to lower the power consumption and support a stable output voltage in this mode. The frequency reduction is limited to 21.5 kHz to avoid audible noise. In case of failure modes like open loop, overvoltage or overload due to short circuit the device switches in Auto Restart Mode which is controlled by the internal protection unit. By means of the internal precise peak current limitation the dimension of the transformer and the secondary diode can be lower which leads to more cost efficiency
| Parameter |
Symbol |
Limit Values |
Unit |
Remarks | ||
|
min. |
max. | |||||
| Drain Source Voltage ICE2A165/265/365 |
VDS |
- |
650 |
V |
Tj=110°C | |
| Drain Source Voltage ICE2A180/280 |
VDS |
800 | ||||
| Avalanche energy, repetitive tAR limited by max. Tj=150°C1) |
ICE2A165 |
EAR1 |
- |
0.2 |
mJ |
|
| CE2A265Z |
EAR2 |
- |
0.4 |
mJ |
||
| ICE2A365 |
EAR3 |
- |
0.5 |
mJ |
||
| ICE2A180 |
EAR4 |
- |
0.2 |
mJ |
||
| ICE2A280Z |
EAR5 |
- |
0.4 |
mJ |
||
| Avalanche current, repetitive tAR limited by max. Tj=150°C1) |
ICE2A165 |
IAR1 |
- |
1 |
A |
|
| ICE2A265 |
IAR2 |
- |
2 |
A |
||
| ICE2A365 |
IAR3 |
- |
3 |
A |
||
| ICE2A180 |
IAR4 |
- |
1 |
A |
||
| ICE2A280 |
IAR5 |
- |
2 |
A |
||
| VCC Supply Voltage |
VCC |
-0.3 |
22 |
V |
||
| FB Voltage |
VFB |
-0.3 |
6.5 |
V |
||
| SoftS Voltage |
VSoftS |
-0.3 |
6.5 |
V |
||
| ISense |
ISense |
-0.3 |
3 |
V |
||
| Junction Temperature |
Tj |
-40 |
150 |
°C |
Controller & CoolMOS™ | |
| Storage Temperature |
TS |
-50 |
150 |
°C |
||
| Thermal Resistance Junction-Ambient |
RthJA |
- |
90 |
K/W |
P-DIP-8-6 | |
| ESD Capability2) |
VESD |
- |
2 |
kV |
Human Body Model | |
The second generation COOLSET™-F2 provides several special enhancements to satisfy the needs for low power standby and protection features. In standby mode frequency reduction is used to lower the power consumption and support a stable output voltage in this mode. The frequency reduction is limited to 21.5 kHz to avoid audible noise. In case of failure modes like open loop, overvoltage or overload due to short circuit the device switches in Auto Restart Mode which is controlled by the internal protection unit. By means of the internal precise peak current limitation the dimension of the transformer and the secondary diode can be lower which leads to more cost efficiency
| Parameter |
Symbol |
Limit Values |
Unit |
Remarks | ||
|
min. |
max. | |||||
| Drain Source Voltage ICE2A165/265/365 |
VDS |
- |
650 |
V |
Tj=110°C | |
| Drain Source Voltage ICE2A180/280 |
VDS |
800 | ||||
| Avalanche energy, repetitive tAR limited by max. Tj=150°C1) |
ICE2A165 |
EAR1 |
- |
0.2 |
mJ |
|
| CE2A265Z |
EAR2 |
- |
0.4 |
mJ |
||
| ICE2A365 |
EAR3 |
- |
0.5 |
mJ |
||
| ICE2A180 |
EAR4 |
- |
0.2 |
mJ |
||
| ICE2A280Z |
EAR5 |
- |
0.4 |
mJ |
||
| Avalanche current, repetitive tAR limited by max. Tj=150°C1) |
ICE2A165 |
IAR1 |
- |
1 |
A |
|
| ICE2A265 |
IAR2 |
- |
2 |
A |
||
| ICE2A365 |
IAR3 |
- |
3 |
A |
||
| ICE2A180 |
IAR4 |
- |
1 |
A |
||
| ICE2A280 |
IAR5 |
- |
2 |
A |
||
| VCC Supply Voltage |
VCC |
-0.3 |
22 |
V |
||
| FB Voltage |
VFB |
-0.3 |
6.5 |
V |
||
| SoftS Voltage |
VSoftS |
-0.3 |
6.5 |
V |
||
| ISense |
ISense |
-0.3 |
3 |
V |
||
| Junction Temperature |
Tj |
-40 |
150 |
°C |
Controller & CoolMOS™ | |
| Storage Temperature |
TS |
-50 |
150 |
°C |
||
| Thermal Resistance Junction-Ambient |
RthJA |
- |
90 |
K/W |
P-DIP-8-6 | |
| ESD Capability2) |
VESD |
- |
2 |
kV |
Human Body Model | |
