MFG:1600 Package Cooled:Infineon
MFG: 1600
Package Cooled: Infineon
Description: The ICE1QS01 is optimized to control free running flyback converters with and without Power Factor Cor...
The ICE1QS01 is optimized to control free running flyback converters with and without Power Factor Correction (with PFC Charge Pump).
The switching frequency is reduced in small steps with decreasing load towards a minimum of 20 kHz in standby mode. This function is performed by a digital circuit to avoid any jitter also with periodically pulsed loads. To provide extremely low power consumption at light loads, this device can be switched into Standby Burst Mode. This is also possible
without standby control signal (for adapter application).
Additionally, the start up current is very low. To avoid switching stresses of the power devices, the power transistor is always switched on at minimum voltage. The device has several protection functions: VCC overand undervoltage, mains undervoltage and current limiting. Regulation can be done by using the internal error amplifier or an opto coupler feedback. The output driver is ideally suited for driving a power MOSFET.
The ICE1QS01 is suited for TV-sets, DVD- sets, SAT- receivers and other consumer applications in the power range from 0 to app. 300 W.

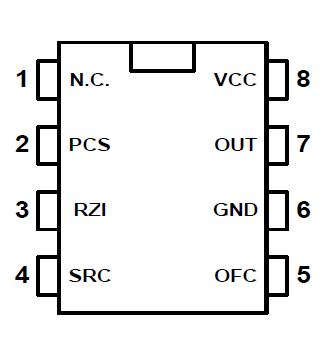

| Parameter |
Symbol |
Min |
Max |
Unit |
Remark |
| Charge Current into Pin2 |
IPCS |
500 |
uA |
During start up | |
| Voltage at Pin 2 |
VPCS |
-0.3 |
21 |
V |
|
| Current into Pin 3 |
IRZI IRZI |
-10 |
10 |
mA mA |
VRZI>VRZICH VRZI<VRZICL |
| Voltage at Pin 4 |
VSRC |
-0.3 |
VSRCCL |
V |
ISRC=100 A |
| Voltage at Pin 5 |
VOFC |
-0.3 |
6 |
V |
|
| Current into Pin 7 |
IOUT |
-500 |
500 |
mA |
t<1ms |
| Voltage at Pin 8 |
VCC |
-0.3 |
21 |
V |
|
| ESD Protection |
4000 |
V |
MIL STD 883C method 3015.6, 100pF,1500 | ||
| Storage Temperature |
Tstg |
-50 |
150 |
°C |
|
| Operating Junction Temperature |
TJ |
-25 |
150 |
°C |
|
| Thermal Resistance Junction-Ambient |
RthJA |
100 |
K/W |
P-DIP-8 |
ICE1QS01
PDF/DataSheet Download
