Part Number: ICE280Z
Description: The second generation CoolSET™-F2 provides several special enhancements to satisfy the needs for...
- Table of contents:
ICE280Z
-
Suppliers
DataSheet
General Description
ICE280Z General Description
The second generation CoolSET™-F2 provides several special enhancements to satisfy the needs for low power standby and protection features. In standby mode frequency reduction is used to lower the power consumption and support a stable output voltage in this mode. The frequency reduction is limited to 20kHz/21.5 kHz to avoid audible noise. In case of failure modes like open loop, overvoltage or overload due to short circuit the device switches in Auto Restart Mode which is controlled by the internal protection unit. By means of the internal precise peak current limitation, the dimension of the transformer and the secondary diode can be sized lower which leads to more cost effective for the overall system.
ICE280Z Maximum Ratings
| Parameter |
Symbol |
Limit Values |
Unit |
Remarks | ||
|
min. |
max. | |||||
| Drain Source Voltage ICE2A0565/165/265/365/765I/765P2 ICE2B0565/165/265/365/765I/765P2 ICE2A0565G ICE2A0565Z |
VDS |
- |
650 |
V |
Tj=110°C | |
| Drain Source Voltage ICE2A180Z/280Z |
VDS |
- | 800 | V | Tj = 25°C | |
| Avalanche energy, repetitive tAR limited by max. Tj=150°C1) |
ICE2A0565 |
EAR1 |
- |
0.01 |
mJ |
|
|
ICE2A165 |
EAR2 |
- |
0.07 |
mJ |
||
|
ICE2A265 |
EAR3 |
- |
0.40 |
mJ |
||
|
ICE2A365 |
EAR4 |
- |
0.50 |
mJ |
||
|
ICE2B0565 |
EAR5 |
- |
0.01 |
mJ |
||
|
ICE2B165 |
EAR6 |
- |
0.07 |
mJ |
||
|
ICE2B265 |
EAR7 |
- |
0.40 |
mJ |
||
|
ICE2B365 |
EAR8 |
- |
0.50 |
mJ |
||
|
ICE2A0565G |
EAR9 |
- |
0.01 |
mJ |
||
|
ICE2A0565Z |
EAR10 |
- |
0.01 |
mJ |
||
|
ICE2A180Z |
EAR11 |
- |
0.07 |
mJ |
||
|
ICE2A280Z |
EAR12 |
- |
0.40 |
mJ |
||
|
ICE2A765I |
EAR13 |
- |
0.50 |
mJ |
||
|
ICE2B765I |
EAR14 |
- |
0.50 |
mJ |
||
|
CE2A765P2 |
EAR15 |
- |
0.50 |
mJ |
||
|
ICE2B765P2 |
EAR16 |
- |
0.50 |
mJ |
||
ICE280Z Features
• 650V/800V avalanche rugged CoolMOS™
• Only few external components required
• Input Vcc Undervoltage Lockout
• 67kHz/100kHz switching frequency
• Max duty cycle 72%
• Low Power Standby Mode to meet European Commission Requirements
• Thermal Shut Down with Auto Restart
• Overload and Open Loop Protection
• Overvoltage Protection during Auto Restart
• Adjustable Peak Current Limitation via external resistor
• Overall tolerance of Current Limiting < ±5%
• Internal Leading Edge Blanking
• User defined Soft Start Soft Switching for low EMI
• Only few external components required
• Input Vcc Undervoltage Lockout
• 67kHz/100kHz switching frequency
• Max duty cycle 72%
• Low Power Standby Mode to meet European Commission Requirements
• Thermal Shut Down with Auto Restart
• Overload and Open Loop Protection
• Overvoltage Protection during Auto Restart
• Adjustable Peak Current Limitation via external resistor
• Overall tolerance of Current Limiting < ±5%
• Internal Leading Edge Blanking
• User defined Soft Start Soft Switching for low EMI

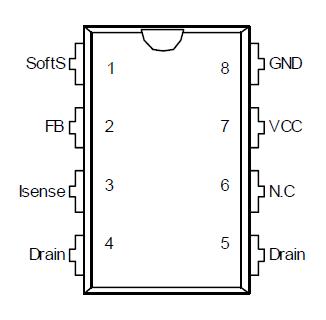

ICE280Z Connection Diagram
