IR2132SPBF, IR2132STR, IR2132STRPBF

Table of contents:
Info of IR2132SPBF
Info of IR2132STR
Info of IR2132STRPBF

IR2132SPBF, IR2132STR, IR2132STRPBF Selling Leads, Datasheet

MFG:International Rectifier (VA) Category:Integrated Circuits (ICs) Package Cooled:09+ D/C:2007

IR2132SPBF, IR2132STR, IR2132STRPBF Datasheet download

Five Points

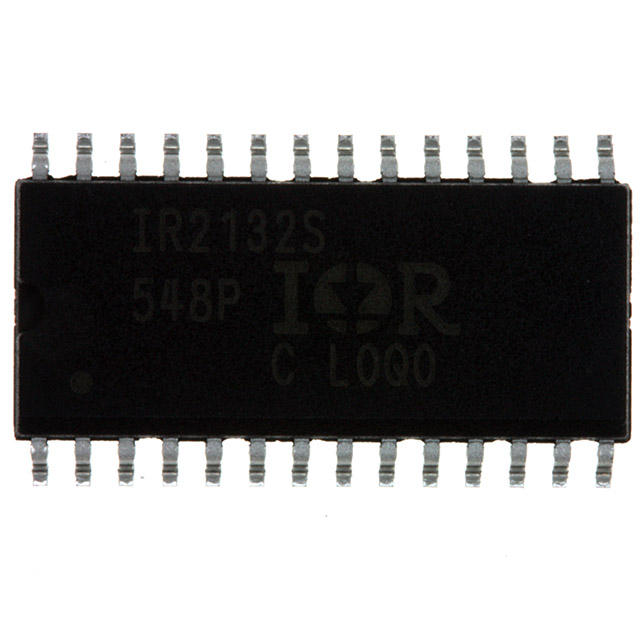

Part Number: IR2132STRPBF

Category: Integrated Circuits (ICs)

MFG: International Rectifier (VA)

Package Cooled: 09+

D/C: 2007

Description: IC DRIVER BRIDGE 3PHASE 28SOIC

Price Break

1000

Unit Price

5.74425

Extended Price

5744.25

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IR2132SPBF Parameters

Technical/Catalog Information	IR2132SPBF
Vendor	International Rectifier
Category	Integrated Circuits (ICs)
Configuration	3 Phase Bridge
Voltage - Supply	10 V ~ 20 V
Current - Peak	250mA
Delay Time	675ns
Package / Case	28-SOIC (7.5mm Width)
Packaging	Tube
Number of Outputs	3
Input Type	Inverting
Number of Configurations	1
Operating Temperature	-40°C ~ 125°C
High Side Voltage - Max (Bootstrap)	600V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IR2132SPBF IR2132SPBF

IR2132STR Parameters

Technical/Catalog Information	IR2132STR
Vendor	International Rectifier
Category	Integrated Circuits (ICs)
Configuration	3 Phase Bridge
Voltage - Supply	10 V ~ 20 V
Current - Peak	250mA
Delay Time	675ns
Package / Case	28-SOIC (7.5mm Width)
Packaging	Tape & Reel (TR)
Number of Outputs	3
Input Type	Inverting
Number of Configurations	1
Operating Temperature	-40°C ~ 125°C
High Side Voltage - Max (Bootstrap)	600V
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	IR2132STR IR2132STR

IR2132STRPBF Parameters

Technical/Catalog Information	IR2132STRPBF
Vendor	International Rectifier (VA)
Category	Integrated Circuits (ICs)
Configuration	3 Phase Bridge
Voltage - Supply	10 V ~ 20 V
Current - Peak	250mA
Delay Time	675ns
Package / Case	28-SOIC (7.5mm Width)
Packaging	Cut Tape (CT)
Number of Outputs	3
Input Type	Inverting
Number of Configurations	1
Operating Temperature	-40°C ~ 125°C
High Side Voltage - Max (Bootstrap)	600V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IR2132STRPBF IR2132STRPBF IR2132SPBFCT ND IR2132SPBFCTND IR2132SPBFCT
