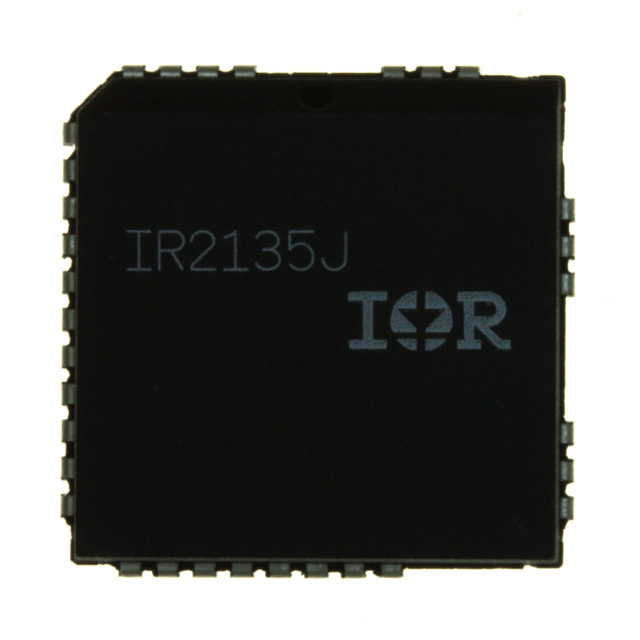

The IR2133IR2135/IR2233IR2355 (J&S) are high voltage, high speed power MOSFET and IGBT driver with three independent high side and low side referenced output channels for 3-phase applications. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 2.5V logic. An independent operational amplifier provides an analog feedback of bridge current via an external current sense resistor. A current trip function which terminates all six outputs can also be derived from this resistor. A shutdown function is available to terminate all six outputs. An open drain FAULT signal is provided to indicate that an over-current or undervoltage shutdown has occurred. Fault conditions are cleared with the FLT-CLR lead. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channels can be used to drive N-channel power MOSFETs or IGBTs in the high side configuration which operates up to 600 volts or 1200 volts.
IR2135J Maximum Ratings
Symbol
Definition
Min.
Max.
Units
VB1,2,3
High Side Floating Supply Voltage
(IR2133/IR2135)
-0.3
625
V
(IR2233/IR2235)
-0.3
1225
VS1,2,3
High Side Floating Offset Voltage
VB1,2,3 - 25
VB1,2,3 + 0.3
VHO1,2,3
High Side Floating Output Voltage
VS1,2,3 - 0.3
VB1,2,3 + 0.3
VCC
Low Side and Logic Fixed Supply Voltage
-0.3
25
VSS
Logic Ground
VCC - 25
VCC + 0.3
VLO1,2,3
Low Side Output Voltage
-0.3
VCC + 0.3
VIN
Logic input voltage (HIN, LIN, ITRIP, SD & FLT-CLR)
VSS - 0.3
VCC + 0.3 or VSS +15 Which ever is lower
VIN,AMP
Op amp input voltage (CA+ & CA-)
VSS - 0.3
VCC + 0.3
VOUT,AMP
Op amp output voltage (CAO)
VSS - 0.3
VCC + 0.3
VFLT
FAULT Output Voltage
VSS - 0.3
VCC + 0.3
dVS/dt
Allowable Offset Supply Voltage Transient
-
50
V/ns
PD
Package Power Dissipation @ TA +25
(28 Lead DIP)
-
1.5
W
(28 Lead SOIC)
-
1.6
(44 Lead PLCC)
-
2.0
RthJA
Thermal Resistance, Junction to Ambient
(28 Lead DIP)
-
83
/W
(28 Lead SOIC)
-
78
(44 Lead PLCC)
-
63
TJ
Junction Temperature
-
150
TS
Storage Temperature
-55
150
TL
Lead temperature (soldering, 10 seconds
-
300
IR2135J Features
• Floating channel designed for bootstrap operation Fully operational to +600V or+1200V Tolerant to negative transient voltage dV/dt immune • Gate drive supply range from 10V/12V to 20V DC and up to 25V for transient • Undervoltage lockout for all channels • Over-current shut down turns off all six drivers • Independent 3 half-bridge drivers • Matched propagation delay for all channels • 2.5V logic compatible • Outputs out of phase with inputs • Also available LEAD-FREE
IR2135J Connection Diagram
IR2135S Parameters
Technical/Catalog Information
IR2135S
Vendor
International Rectifier
Category
Integrated Circuits (ICs)
Configuration
3 Phase Bridge
Voltage - Supply
10 V ~ 20 V
Current - Peak
200mA
Delay Time
750ns
Package / Case
28-SOIC (7.5mm Width)
Packaging
Tube
Number of Outputs
3
Input Type
Inverting
Number of Configurations
1
Operating Temperature
-
High Side Voltage - Max (Bootstrap)
600V
Lead Free Status
Contains Lead
RoHS Status
RoHS Non-Compliant
Other Names
IR2135S IR2135S
IR2135S General Description
The IR2133IR2135/IR2233IR2355 (J&S) are high voltage, high speed power MOSFET and IGBT driver with three independent high side and low side referenced output channels for 3-phase applications. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 2.5V logic. An independent operational amplifier provides an analog feedback of bridge current via an external current sense resistor. A current trip function which terminates all six outputs can also be derived from this resistor. A shutdown function is available to terminate all six outputs. An open drain FAULT signal is provided to indicate that an over-current or undervoltage shutdown has occurred. Fault conditions are cleared with the FLT-CLR lead. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channels can be used to drive N-channel power MOSFETs or IGBTs in the high side configuration which operates up to 600 volts or 1200 volts.
IR2135S Maximum Ratings
Symbol
Definition
Min.
Max.
Units
VB1,2,3
High Side Floating Supply Voltage
(IR2133/IR2135)
-0.3
625
V
(IR2233/IR2235)
-0.3
1225
VS1,2,3
High Side Floating Offset Voltage
VB1,2,3 - 25
VB1,2,3 + 0.3
VHO1,2,3
High Side Floating Output Voltage
VS1,2,3 - 0.3
VB1,2,3 + 0.3
VCC
Low Side and Logic Fixed Supply Voltage
-0.3
25
VSS
Logic Ground
VCC - 25
VCC + 0.3
VLO1,2,3
Low Side Output Voltage
-0.3
VCC + 0.3
VIN
Logic input voltage (HIN, LIN, ITRIP, SD & FLT-CLR)
VSS - 0.3
VCC + 0.3 or VSS +15 Which ever is lower
VIN,AMP
Op amp input voltage (CA+ & CA-)
VSS - 0.3
VCC + 0.3
VOUT,AMP
Op amp output voltage (CAO)
VSS - 0.3
VCC + 0.3
VFLT
FAULT Output Voltage
VSS - 0.3
VCC + 0.3
dVS/dt
Allowable Offset Supply Voltage Transient
-
50
V/ns
PD
Package Power Dissipation @ TA +25
(28 Lead DIP)
-
1.5
W
(28 Lead SOIC)
-
1.6
(44 Lead PLCC)
-
2.0
RthJA
Thermal Resistance, Junction to Ambient
(28 Lead DIP)
-
83
/W
(28 Lead SOIC)
-
78
(44 Lead PLCC)
-
63
TJ
Junction Temperature
-
150
TS
Storage Temperature
-55
150
TL
Lead temperature (soldering, 10 seconds
-
300
IR2135S Features
• Floating channel designed for bootstrap operation Fully operational to +600V or+1200V Tolerant to negative transient voltage dV/dt immune • Gate drive supply range from 10V/12V to 20V DC and up to 25V for transient • Undervoltage lockout for all channels • Over-current shut down turns off all six drivers • Independent 3 half-bridge drivers • Matched propagation delay for all channels • 2.5V logic compatible • Outputs out of phase with inputs • Also available LEAD-FREE
