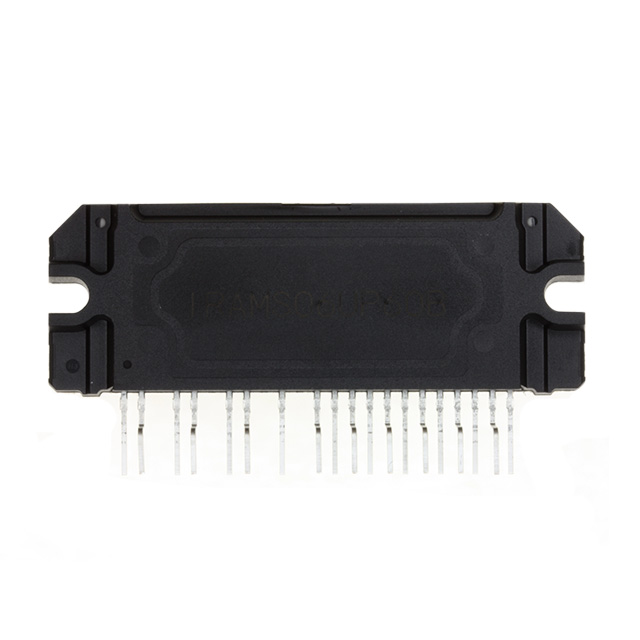

International Rectifier!s IRAMS06UP60B is an Integrated Power Module developed and optimized fo electronic motor control in appliance applications specifically for VF compressor drives for refrigerators and freezer or in heating and ventilation as electronic fan controls. The IRAMS06UP60B offers an extremely compact, high performance AC motor-driver in a single isolated package for a very simple design.
An internal shunt is included and offers easy current feedback and overcurrent monitor for precise control and safe operation. A built-in temperature monitor and over-current protection, along with the short-circuit rated IGBTs and integrated under-voltage lockout function, deliver high level of protection and fail-safe operation. The integration of the bootstrap diodes for the high-side driver section, and the single polarity power supply required to drive the internal circuitry, simplify the utilization of the module and deliver further cost reduction advantages.
IRAMS06UP60B Maximum Ratings
Parameter
Description
Max. Value
Units
VCES
Maximum IGBT Blocking Voltage
600
V
V+
Positive Bus Input Voltage
450
IO @ TC =25
RMS Phase Current
6
A
IO @ TC =100
RMS Phase Current
3
IPK
Max Peak Phase Current (tp<100ms) (see Note 1)
9
FP
Maximum PWM Carrier Frequency
20
kHz
Pd
Maximum Power dissipation per Phase
7.5
W
Viso
Isolation Voltage (1min)
2000
VRMS
TJ(IGBT& Diodes)
Operating Junction temperature Range
-40 to +150
TJ(Drver IC)
Operating Junction temperature Range
-40 to +150
T
Mounting torque Range (M3 screw)
0.8 to 1.0
Nm
IRAMS06UP60B Features
· Internal Shunt Resistor · Integrated Gate Drivers and Bootstrap Diodes · Temperature Monitor · Overcurrent shutdown · Fully Isolated Package. · Low VCE(on) Non Punch Through IGBT Technology · Undervoltage lockout for all channels · Matched propagation delay for all channels · Schmitt-triggered input logic · Cross-conduction prevention logic · Lower di/dt gate driver for better noise immunity · Motor Power range 0.1~0.5kW / 85~253 Vac · Isolation 2000VRMS /1min
IRAMS06UP60B-2 Parameters
Technical/Catalog Information
IRAMS06UP60B-2
Vendor
International Rectifier
Category
Motors, Solenoids, Driver Boards/Modules
Motor Type
3-Phase AC
Transistor Type
IGBT
Number of Motors
1
Voltage - Output
600V
Current - Output
6A
Voltage - Logic Supply
12 V ~ 20 V
Package / Case
PCB Module
Termination Style
PC Pin
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
Other Names
IRAMS06UP60B 2 IRAMS06UP60B2
IRAMS10UP60A Parameters
Technical/Catalog Information
IRAMS10UP60A
Vendor
International Rectifier
Category
Motors, Solenoids, Driver Boards/Modules
Motor Type
3-Phase AC
Transistor Type
IGBT
Number of Motors
1
Voltage - Output
600V
Current - Output
10A
Voltage - Logic Supply
12 V ~ 20 V
Package / Case
PCB Module
Termination Style
PC Pin
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
Other Names
IRAMS10UP60A IRAMS10UP60A
IRAMS10UP60A General Description
International Rectifier's IRAMS10UP60A is an Integrated Power Module developed and optimized for elec-tronic motor control in appliance applications such as washing machines and refrigerators. Plug N Drive technology offers an extremely compact, high performance AC motor-driver in a single isolated package for a very simple design.
A built-in temperature monitor and over-temperature/over-current protection, along with the short-circuit rated IGBTs and integrated under-voltage lockout function, deliver high level of protection and fail-safe operation.
The integration of the bootstrap diodes for the high-side driver section, and the single polarity power supply required to drive the internal circuitry, simplify the utilization of the module and deliver further cost reduction advantages.
IRAMS10UP60A Maximum Ratings
Parameter
Description
Max. Value
Units
VCES
Maximum IGBT Blocking Voltage
600
V
IO @ TC =25
RMS Phase Current
10
A
IO @ TC =100
RMS Phase Current
5
IPK
Max Peak Phase Current (tp<100ms)
15
FP
Maximum PWM Carrier Frequency
20
kHz
Pd
Maximum Power dissipation per Phase
20
W
Viso
Isolation Voltage (1min)
2000
VRMS
TJ(IGBT& Diodes)
Operating Junction temperature Range
-40 to +150
TJ(Drver IC)
Operating Junction temperature Range
-40 to +150
T
Mounting torque Range (M3 screw)
0.8 to 1.0
Nm
IRAMS10UP60A Features
· Integrated Gate Drivers and Bootstrap Diodes. · Temperature Monitor · Temperature and Overcurrent shutdown · Fully Isolated Package. · Low VCE (on) Non Punch Through IGBT Technolo · Undervoltage lockout for all channels · Matched propagation delay for all channels · Low side IGBT emitter pins for current conrol · Schmitt-triggered input logic · Cross-conduction prevention logic · Lower di/dt gate driver for better noise immunity · Motor Power range 0.4~0.75kW / 85~253 Vac
