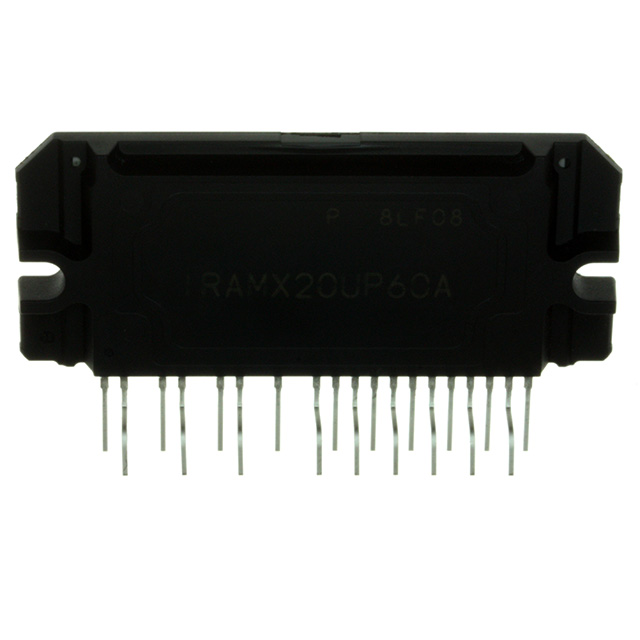

IRAMX10UP60B-2, IRAMX20UP60A, IRAMX20UP60A-2 Datasheet download
Category: Motors, Solenoids, Driver Boards/Modules
MFG: International Rectifier
Package Cooled: 05+
D/C: 477
Description: IC PWR HYBRID 600V 20A SIP2
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: IRACO201
File Size: 127752 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IRAMX20UP60A
File Size: 246645 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IRACO201
File Size: 127752 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
| Technical/Catalog Information | IRAMX20UP60A |
| Vendor | International Rectifier |
| Category | Motors, Solenoids, Driver Boards/Modules |
| Motor Type | 3-Phase High Voltage, High Speed Driver |
| Transistor Type | IGBT |
| Number of Motors | 1 |
| Voltage - Output | 600V |
| Current - Output | 20A |
| Voltage - Logic Supply | 12 V ~ 20 V |
| Package / Case | SIP2 |
| Termination Style | PC Pin |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IRAMX20UP60A IRAMX20UP60A |
International Rectifier's IRAMX20UP60A is a 20A, 600V Integrated Power Hybrid IC for Appliance Motor Drives applications such air conditioning systems and compressor drivers as well as in light industrial applica-tion. IR's technology offers an extremely compact, high performance AC motor-driver in a single isolated package to simplify design.
This advanced HIC is a combination of IR's low V Punch-Through IGBT technology and the industry CE(on) benchmark 3 phase high voltage, high speed driver in a fully isolated thermally enhanced package.
A built-in temperature monitor and input logic protection function, along with the short-circuit rated IGBTs and integrated under-voltage lockout function, deliver high level of protection and fail-safe operation. Using a Single in line package (SiP2) with heatspreader for the power die along with full transfer mold structure minimizes PCB space and resolves isolation problems to heatsink.
| Parameter | Description | Max. Value | Units |
| VCES/ VRRM | IGBT/Diode Blocking Voltage | 600 | V |
| V+ | Positive Bus Input Voltage | 450 | |
| IO @ TC =25 | RMS Phase Current (Note 1) | 20 | A |
| IO @ TC =100 | RMS Phase Current (Note 1) | 10 | |
| IO | Pulsed RMS Phase Current (Note 2) | 30 | |
| FPWM | PWM Carrier Frequency | 20 | kHz |
| Pd | Power dissipation per IGBT @ TC =25 | 38 | W |
| VISO | Isolation Voltage (1min) | 2000 | VRMS |
| TJ(IGBT& Diodes) | Operating Junction temperature Range | -40 to +150 |
|
| TJ(Drver IC) | Operating Junction temperature Range | -40 to +150 | |
| T | Mounting torque Range (M3 screw) | 0.5 to 0.6 | Nm |
| Technical/Catalog Information | IRAMX20UP60A-2 |
| Vendor | International Rectifier |
| Category | Motors, Solenoids, Driver Boards/Modules |
| Motor Type | 3-Phase High Voltage, High Speed Driver |
| Transistor Type | IGBT |
| Number of Motors | 1 |
| Voltage - Output | 600V |
| Current - Output | 20A |
| Voltage - Logic Supply | 12 V ~ 20 V |
| Package / Case | SIP2 |
| Termination Style | PC Pin |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IRAMX20UP60A 2 IRAMX20UP60A2 |
