IXSA15N120B, IXSA16N60, IXSA20N60B2D1

IXSA15N120B, IXSA16N60, IXSA20N60B2D1 Selling Leads, Datasheet

MFG:IXYS  Category:Discrete Semiconductor Products  Package Cooled:TO-263 (D2 PAK)  D/C:08+/09+

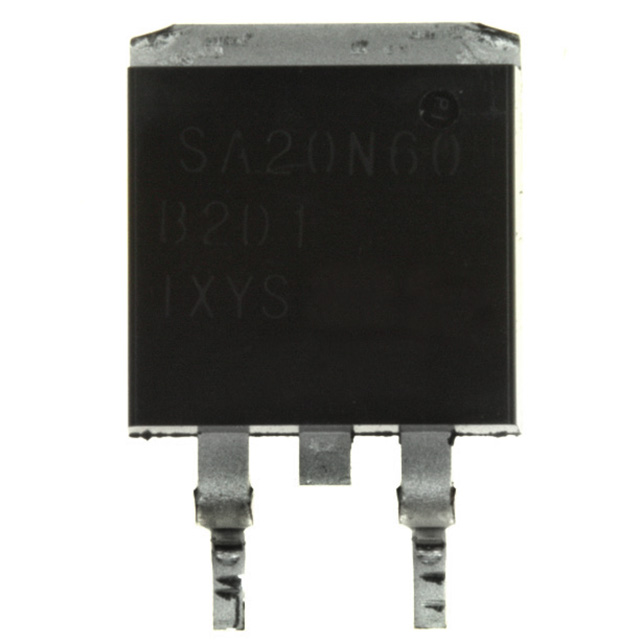

IXSA20N60B2D1 Picture

IXSA15N120B, IXSA16N60, IXSA20N60B2D1 Datasheet download

Five Points

Part Number: IXSA20N60B2D1

Category: Discrete Semiconductor Products

MFG: IXYS

Package Cooled: TO-263 (D2 PAK)

D/C: 08+/09+

Description: IGBT HS W/DIODE 600V 35A TO263






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

IXSA15N120B Suppliers

More IXSA15N120B Suppliers

Select All

About IXSA15N120B

PDF/DataSheet Download

Datasheet: IXSA15N120B

File Size: 86846 KB

Manufacturer: IXYS [IXYS Corporation]

Download : Click here to Download

Related PDF Download

Related Part Number

IXSA16N60 Suppliers

More IXSA16N60 Suppliers

Select All

About IXSA16N60

PDF/DataSheet Download

Datasheet: IXSA16N60

File Size: 49559 KB

Manufacturer: IXYS [IXYS Corporation]

Download : Click here to Download

Related PDF Download

Related Part Number

IXSA20N60B2D1 Suppliers

More IXSA20N60B2D1 Suppliers

Select All

About IXSA10N60B2D1

PDF/DataSheet Download

Datasheet: IXSA10N60B2D1

File Size: 603250 KB

Manufacturer: IXYS [IXYS Corporation]

Download : Click here to Download

Related PDF Download

Related Part Number

IXSA15N120B Parameters

Technical/Catalog InformationIXSA15N120B
VendorIXYS
CategoryDiscrete Semiconductor Products
Input TypeStandard
Voltage - Collector Emitter Breakdown (Max)1200V
Current - Collector (Ic) (Max)30A
Vce(on) (Max) @ Vge, Ic3.4V @ 15V, 15A
Power - Max150W
Mounting TypeSurface Mount
Package / CaseD²Pak, SMD-220, TO-263 (2 leads + tab)
Packaging*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IXSA15N120B
IXSA15N120B

IXSA15N120B Maximum Ratings

Symbol Test Conditions Maximum Ratings
VCES
VCGR
TJ = 25°C to 150°C
TJ = 25°C to 150°C; RGE = 1 M
1000
1000
V
V
VGES
VGEM
Continuous
Transient
±20
±30
V
ID25
ID90
ICM
TC = 25°C
TC = 90°C
TC = 25°C, 1 ms
30
15
60

A
A
A

SSOA
(RBSOA)
VGE = 15 V, TJ = 125°C, RG = 2.7
Clamped inductive load, VCC= 0.8 VCES
ICM = 40
@ 0.8 VCES
A
tSC
(SCSOA)
VGE = 15 V, VCE = 360 V, TJ = 125°C
RG = 33 ?, non repetitive
10 s
PC TC = 25°C 150 W
TJ
TJM
Tstg
  -55 ... +150
150
-55 ... +150
°C
°C
°C
Md Mounting torque 1.13/10 Nm/lb.in.
Maximum lead temperature for soldering
1.6 mm (0.062 in.) from case for 10 s
300 °C
Maximum tab temperature for soldering (TO-263) 260 °C
Weight TO-220
TO-263
4
2
g
g

IXSA15N120B Features

•International standard packages JEDEC TO-220AB and TO-263AA
•Low switching losses, low V(sat)
•MOS Gate turn-on
  - drive simplicity

IXSA15N120B Typical Application

• AC motor speed control
• DC servo and robot drives
• DC choppers
• Uninterruptible power supplies (UPS)
• Switch-mode and resonant-mode power supplies

IXSA16N60 Maximum Ratings

Symbol Test Conditions Maximum Ratings
VCES
VCGR
TJ = 25°C to 150°C
TJ = 25°C to 150°C; RGE = 1 M
600
600
V
V
VGES
VGEM
Continuous
Transient
±20
±30
V
ID25
ID90
ICM
TC = 25°C
TC = 90°C
TC = 25°C, 1 ms
32
16
52

A
A
A

SSOA
(RBSOA)
VGE = 15 V, TJ = 125°C, RG = 2.7
Clamped inductive load, VCC= 0.8 VCES
ICM =32
@ 0.8 VCES
A
tSC
(SCSOA)
VGE = 15 V, VCE = 360 V, TJ = 125°C
RG = 33 ?, non repetitive
5 s
PC TC = 25°C 100 W
TJ
TJM
Tstg
  -55 ... +150
150
-55 ... +150
°C
°C
°C
Weight   2 g
Maximum lead temperature for soldering
1.6 mm (0.062 in.) from case for 10 s
300
260
°C
°C

IXSA16N60 Features

· International standard package
· Guaranteed Short Circuit SOA capability
· Low VCE(sat)
- for low on-state conduction losses
· High current handling capability
· MOS Gate turn-on
    - drive simplicity
· Fast fall time for switching speeds up to 20 kHz

IXSA16N60 Typical Application

·AC motor speed control
·Uninterruptible power supplies (UPS)
·Welding

IXSA20N60B2D1 Parameters

Technical/Catalog InformationIXSA20N60B2D1
VendorIXYS
CategoryDiscrete Semiconductor Products
Input TypeStandard
Voltage - Collector Emitter Breakdown (Max)600V
Current - Collector (Ic) (Max)35A
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 16A
Power - Max190W
Mounting TypeSurface Mount
Package / CaseD²Pak, TO-263 (2 leads + tab)
PackagingBox
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IXSA20N60B2D1
IXSA20N60B2D1
