MFG:IXYS Category:Discrete Semiconductor Products Package Cooled:TO-220 D/C:08+/09+
IXSN80N60BD1, IXSP10N60B2D1, IXSP20N60B2D1 Datasheet download
Category: Discrete Semiconductor Products
MFG: IXYS
Package Cooled: TO-220
D/C: 08+/09+
Description: IGBT HS W/DIODE 600V 35A TO220
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: IXSA10N60B2D1
File Size: 603250 KB
Manufacturer: IXYS [IXYS Corporation]
Download : Click here to Download
PDF/DataSheet Download

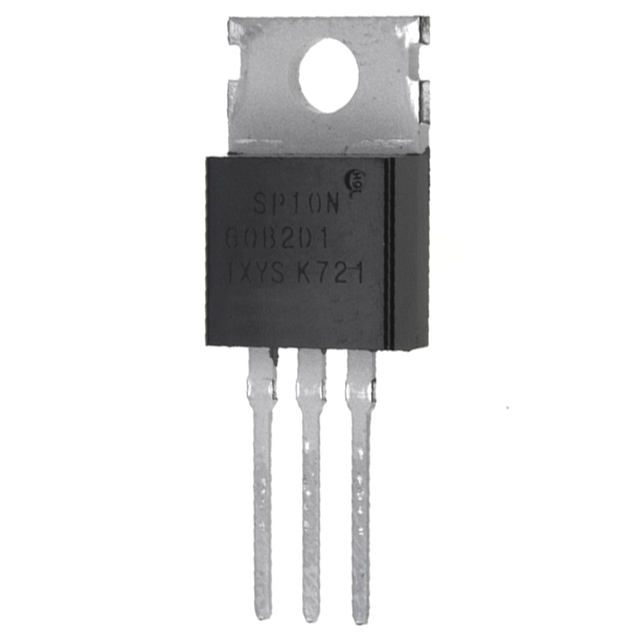

Datasheet: IXSP10N60B2D1
File Size: 603250 KB
Manufacturer: IXYS [IXYS Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IXSA10N60B2D1
File Size: 603250 KB
Manufacturer: IXYS [IXYS Corporation]
Download : Click here to Download
| Technical/Catalog Information | IXSP10N60B2D1 |
| Vendor | IXYS |
| Category | Discrete Semiconductor Products |
| Input Type | Standard |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Current - Collector (Ic) (Max) | 20A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 10A |
| Power - Max | 100W |
| Mounting Type | Through Hole |
| Package / Case | TO-220AB |
| Packaging | Bulk |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IXSP10N60B2D1 IXSP10N60B2D1 |
| Symbol | Test Conditions | Maximum | Ratings |
| VCES VCGR |
TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 M |
600 600 |
V V |
| VGES VGEM |
Continuous Transient |
±20 ±30 |
V |
| IC25 IC110 IF(110) ICM |
TC = 25°C TC = 90°C TC = 25°C, 1 ms |
20 10 11 30 |
A |
| SSOA (RBSOA) |
VGE = 15 V, TJ = 125°C, RG = 2.7 Clamped inductive load, VCC= 0.8 VCES |
ICM =20 @ 0.8 VCES |
A |
| tSC (SCSOA) |
VGE = 15 V, VCE = 360 V, TJ = 125°C RG = 33 ?, non repetitive |
10 | s |
| PC | TC = 25°C | 100 | W |
| TJ TJM Tstg |
-55 ... +150 150 -55 ... +150 |
°C °C °C | |
| Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s Plastic Body t = 10s |
300 250 |
°C °C | |
| Md | Mounting torque | 1.13/10 | Nm/lb.in. |
| Weight | 6 | g | |
| Technical/Catalog Information | IXSP20N60B2D1 |
| Vendor | IXYS |
| Category | Discrete Semiconductor Products |
| Input Type | Standard |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Current - Collector (Ic) (Max) | 35A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 16A |
| Power - Max | 190W |
| Mounting Type | Through Hole |
| Package / Case | TO-220AB |
| Packaging | Bulk |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IXSP20N60B2D1 IXSP20N60B2D1 |
