KA2511(S1D2511B01-AO), KA2556, KA258 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor
Package Cooled: DIP
D/C: 2000

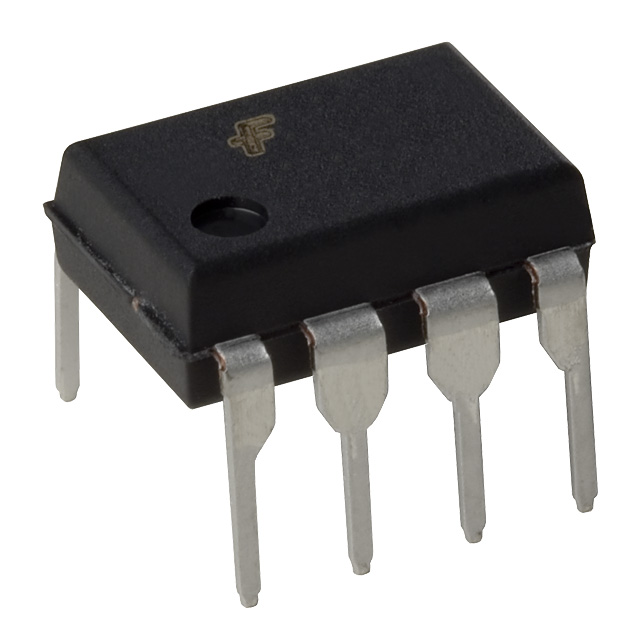

Description: IC OPAMP DUAL HIGH GAIN 8-DIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: KA2002-BE10A
File Size: 52501 KB
Manufacturer: Rohm
Download : Click here to Download
PDF/DataSheet Download
Datasheet: KA2002-BE10A
File Size: 52501 KB
Manufacturer: Rohm
Download : Click here to Download
PDF/DataSheet Download
Datasheet: KA258
File Size: 151568 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | KA258 |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 - Dual |
| Package / Case | 8-DIP |
| Slew Rate | - |
| Gain Bandwidth Product | - |
| Current - Supply | 800A |
| Current - Output/Channel | 30mA |
| Voltage - Supply, Single/Dual (±) | 3 V ~ 32 V, ±1.5 V ~ 16 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 45nA |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Input Offset | 2900V |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | KA258 KA258 |
The KA258 series consist of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltage. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifier, DC gain blocks and all the conventional OP-AMP circuits which now can be easily implemented in single power supply systems.
| Parameter | Symbol |
KA258/KA258A |
KA358/KA358A |
KA2904 |
Unit |
| Power Supply Voltage | VCC |
±16 or 32 |
±13 or 32 |
±13 or 26 |
V |
| Differential Input Voltage | VI(DIFF) |
32 |
32 |
26 |
V |
| Input Voltage | VI |
-0.3 to +32 |
-0.3 to +32 |
-0.3 to +26 |
V |
| Output Short Circuit to GND Vcc15V, TA=25°C(One Amp) |
- |
Continuous |
Continuous |
Continuous |
- |
| Operating Temperature Range | TOPR |
-25 ~ +85 |
0 ~ +70 |
40 ~ +85 |
|
| Storage Temperature Range | TSTG |
-65 ~ +150 |
-65 ~ +150 |
-65 ~ +150 |
