LM7121 General Description
The LM7121 is a high performance operational amplifier which addresses the increasing AC performance needs of video and imaging applications, and the size and power constraints of portable applications.
The LM7121 can operate over a wide dynamic range of supply voltages, from 5V (single supply) up to ±15V (see the Application Information section for more details). It offers an excellent speed-power product delivering 1300V/µs and 235 MHz Bandwidth (−3 dB, AV = +1). Another key feature of this operational amplifier is stability while driving unlimited capacitive loads. Due to its Tiny SOT23-5 package, the LM7121 is ideal for designs where space and weight are the critical parameters.
The benefits of the Tiny package are evident in small portable electronic devices, such as cameras, and PC video cards. Tiny amplifiers are so small that they can be placed anywhere on a board close to the signal source or near the input to an A/D converter.
LM7121 Maximum Ratings
ESD Tolerance (Note 2) .................................................................2000V
Differential Input Voltage (Note 7) ...................................................±2V
Voltage at Input/Output Pin ...................................(V+)−1.4V, (V−)+1.4V
Supply Voltage (V+V-) .....................................................................36V
Output Short Circuit to Ground
(Note 3) ..................................................................................Continuous
Lead Temperature .........................................................................260°C
(soldering, 10 sec) .........................................................................260°C
Storage Temperature Range .......................................−65°C to +150°C
Junction Temperature (Note 4) .......................................................150°C
Differential Input Voltage (Note 7) ...................................................±2V
Voltage at Input/Output Pin ...................................(V+)−1.4V, (V−)+1.4V
Supply Voltage (V+V-) .....................................................................36V
Output Short Circuit to Ground
(Note 3) ..................................................................................Continuous
Lead Temperature .........................................................................260°C
(soldering, 10 sec) .........................................................................260°C
Storage Temperature Range .......................................−65°C to +150°C
Junction Temperature (Note 4) .......................................................150°C
LM7121 Features
(Typical unless otherwise noted) VS = ±15V
` Easy to use voltage feedback topology
`Stable with unlimited capacitive loads
` Tiny SOT23-5 package-typical circuit layout takes half
the space of SO-8 designs
`Unity gain frequency: 175 MHz
` Bandwidth (−3 dB, AV = +1, RL = 100): 235 MHz
` Slew rate: 1300V/µs
`Supply Voltages SO-8: 5V to ±15V
SOT23-5: 5V to ±5V
` Characterized for: +5V, ±5V, ±15V
` Low supply current: 5.3 mA
` Easy to use voltage feedback topology
`Stable with unlimited capacitive loads
` Tiny SOT23-5 package-typical circuit layout takes half
the space of SO-8 designs
`Unity gain frequency: 175 MHz
` Bandwidth (−3 dB, AV = +1, RL = 100): 235 MHz
` Slew rate: 1300V/µs
`Supply Voltages SO-8: 5V to ±15V
SOT23-5: 5V to ±5V
` Characterized for: +5V, ±5V, ±15V
` Low supply current: 5.3 mA

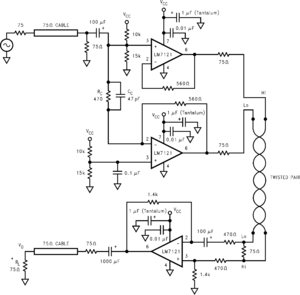

LM7121 Connection Diagram
