LP339, LP339D, LP339DR

Table of contents:
Info of LP339
Info of LP339D
Info of LP339DR

LP339, LP339D, LP339DR Selling Leads, Datasheet

MFG:Texas Instruments (VA) Category:Integrated Circuits (ICs) Package Cooled:SOP14 D/C:08+

LP339, LP339D, LP339DR Datasheet download

Five Points

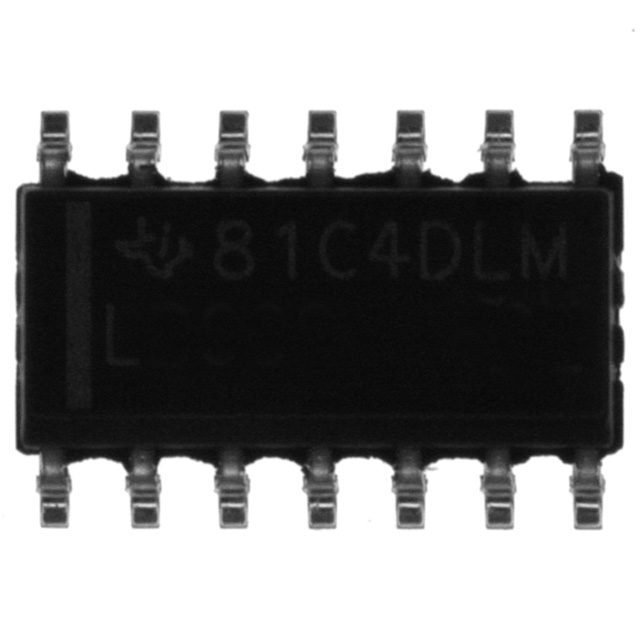

Part Number: LP339D

Category: Integrated Circuits (ICs)

MFG: Texas Instruments (VA)

Package Cooled: SOP14

D/C: 08+

Description: IC QUAD LP DIFF COMPARATR 14SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

LP339 Parameters

LP339 Features

Ultra-low power supply current drain (60 µA)-independent of the supply voltage (75 µW/comparator at +5 V_DC)
Low input biasing current: 3 nA
Low input offset current: ±0.5 nA
Low input offset voltage: ±2 mV
Input common-mode voltage includes ground
Output voltage compatible with MOS and CMOS logic
High output sink current capability (30 mA at V_O=2 V_DC)
Supply Input protected against reverse voltages

LP339 General Description

Ultra-Low Power Quad Comparator

LP339 Maximum Ratings

Supply voltage, V_CC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 V
Differential input voltage, V_ID(see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±36 V
Input voltage range, V_I(either input) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 36 V
Input current, V _I3 0.3 V (see Note 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Duration of output short-circuit to ground (see Note 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Unlimited
Continuous total dissipation (see Note 5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Dissipation Rating Table
Operating free-air temperature range, T_A: LP239 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25to 85LP339 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...............................................................0 to 70
LP2901 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .............................................................. 40 to 85
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to 150Lead temperature range 1,6 mm (1/16 inch) from case for 10 seconds: D or N package . . . . . . . . . . . 260
Lead temperature range 1,6 mm (1/16 inch) from case for 60 seconds: J package . . . . . . . . . . . . . . . . 300
† Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated in the recommended operating conditions is not implied.
Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. All voltage values, except differential voltages, are with respect to the network ground.

2. Differential voltages are at IN+ with respect to IN .

3. This input current only exists when the voltage at any of the inputs is driven negative. The current flows through the collector-base junction of the input clamping device. In addition to the clamping device action, there is lateral n-p-n parasitic transistor action. This action is not destructive and normal output states are re-established when the input voltage returns to a value more positive than 0.3 V at T_A = 25.
4. Short circuits between outputs to V_CCcan cause excessive heating and eventual destruction.
5. If the output transistors are allowed to saturate, the low bias dissipation and the on-off characteristics of the outputs keep the dissipation very small (usually less than 100 mW).

LP339 Features

Ultra-low power supply current drain (60 µA)-independent of the supply voltage (75 µW/comparator at +5 V_DC)
Low input biasing current: 3 nA
Low input offset current: ±0.5 nA
Low input offset voltage: ±2 mV
Input common-mode voltage includes ground
Output voltage compatible with MOS and CMOS logic
High output sink current capability (30 mA at V_O=2 V_DC)
Supply Input protected against reverse voltages

LP339 Typical Application

LP339 Datasheet

LP339D Parameters

Technical/Catalog Information	LP339D
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Type	General Purpose
Output Type	CMOS, MOS, Open-Collector
Voltage - Supply	3 V ~ 30 V; ±1.5 V ~ 15 V
Number of Elements	4 - Quad
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Packaging	Tube
Drawing Number	296; 4040047-3; D; 14
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LP339D LP339D 296 9578 5 ND 29695785ND 296-9578-5

LP339DR Parameters

Technical/Catalog Information	LP339DR
Vendor	Texas Instruments (VA)
Category	Integrated Circuits (ICs)
Type	General Purpose
Output Type	CMOS, MOS, Open-Collector
Voltage - Supply	3 V ~ 30 V; ±1.5 V ~ 15 V
Number of Elements	4 - Quad
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Packaging	Digi-Reel?
Drawing Number	296; 4040047-3; D; 14
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LP339DR LP339DR 296 14609 6 ND 296146096ND 296-14609-6
