NJG1101(TE1), NJG1101F, NJG1101F-TE1

Table of contents:
Info of NJG1101(TE1)
Info of NJG1101F
Info of NJG1101F-TE1

NJG1101(TE1), NJG1101F, NJG1101F-TE1 Selling Leads, Datasheet

MFG:NJR Category:RF and RFID Package Cooled:07+ D/C:SOT163

NJG1101(TE1), NJG1101F, NJG1101F-TE1 Datasheet download

Five Points

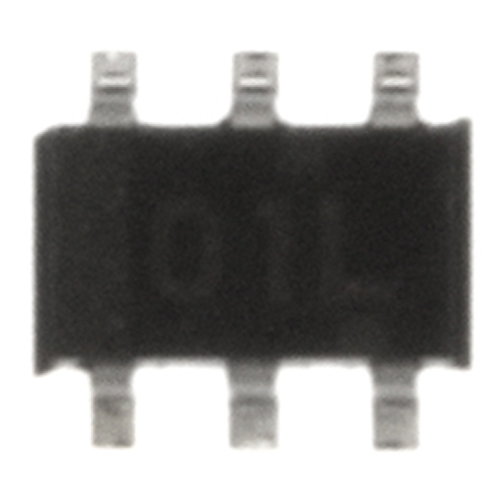

Part Number: NJG1101F-TE1

Category: RF and RFID

MFG: NJR

Package Cooled: 07+

D/C: SOT163

Description: IC MMIC AMP WIDE BAND MTP6

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

NJG1101F General Description

NJG1101F is a GaAs MMIC designed mainly for wireless phone handsets at frequency range of 850MHz from 2.5GHz.

NJG1101F is a variable gain amplifier with 40 dB dynamic range and exhibits low current consumption.

MTP6 package is adopted.

NJG1101F Maximum Ratings

PARAMETER	SYMBOL	CONDITIONS	RATINGS	UNITS
Drain Voltage	V_DD		6	V
Gain Control Voltage	V_CONT	V_DD=3V	3	V
Input Power	P_in	V_DD=3V, V_CONT=2V	10	dBm
Power Dissipation	P_D		300	mW
Operating Temperature	T_opr		-40~+85	°C
Storage Temperature	T_stg		-55~+150	°C

NJG1101F Features

lSingle and low voltage operation                V_DD=+3.0V typ.
lLow current consumption                            I_DD=10mA typ.
lSmall signal gain                                         18dB typ. @f=1.5GHz
                                                                    (f=0.85~2.5GHz @3dB down)
lWide gain control range                             40dB typ. @V_CONT=+0.1~+2.0V
lPout at 1dB gain compression point           +1.5dBm typ. @f=1.5GHz
lPackage                                                     MTP6 (Mount Size: 2.8 x 2.9 x 1.2mm)

NJG1101F-TE1 Parameters

Technical/Catalog Information	NJG1101F-TE1
Vendor	NJR
Category	RF and RFID
Package / Case	MTP6
Voltage - Supply	2.7V ~ 5V
Current - Supply	10mA ~ 13mA
Gain	15.5dB ~ 21dB
Frequency	850MHz ~ 2.5GHz
RF Type	TDMA
Packaging	Tape & Reel (TR)
Noise Figure	-
P1db	1.5dBm
Test Frequency	1.5GHz
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	NJG1101F TE1 NJG1101FTE1 NJG1101F TE1TR ND NJG1101FTE1TRND NJG1101F-TE1TR
