NJG1104KB2 is a variable gain low noise amplifier (LNA).
At 800MHz band, noise figure is 1.2dB, variable gain range is 21dB and input 3rd order intercept point is +6dBm. These characteristics are very suitable for CDMA cellular phone application.
The variable attenuators placed in front of LNA realize wide range of input power with low distortion.
Very small and thin FLP6-B2 package is adopted.
NJG1104KB2 Maximum Ratings
|
PARAMETER |
SYMBOL |
CONDITIONS |
RATINGS |
UNITS |
| Drain Voltage |
VDD |
6.0 |
V | |
| Gain Control Voltage |
VCONT |
4.0 |
V | |
| Input Power |
Pin |
VDD=2.8V |
+20 |
dBm |
| Power Dissipation |
PD |
450 |
mW | |
| Operating Temperature |
Topr |
-40~+85 |
°C | |
| Storage Temperature |
Tstg |
-55~+125 |
°C |
NJG1104KB2 Features
Low voltage operation +2.8V typ.
Low current consumption 6.0mA typ.
High gain 15dB typ. @f=865MHz
Low noise figure 1.2dB typ. @f=865MHz
Variable gain control 21dB typ. @f=865MHz,VCONT=0.2 to 1.7V
High input IP3 +6dBm typ. @f=865.0+865.1MHz, Pin=-30dBm
High output IP3 +21dBm typ. @f=865.0+865.1MHz, Pin=-30dBm
Ultra small & ultra thin package FLP6-B2 (Mount Size: 2.1x2.0x0.75mm)
Low current consumption 6.0mA typ.
High gain 15dB typ. @f=865MHz
Low noise figure 1.2dB typ. @f=865MHz
Variable gain control 21dB typ. @f=865MHz,VCONT=0.2 to 1.7V
High input IP3 +6dBm typ. @f=865.0+865.1MHz, Pin=-30dBm
High output IP3 +21dBm typ. @f=865.0+865.1MHz, Pin=-30dBm
Ultra small & ultra thin package FLP6-B2 (Mount Size: 2.1x2.0x0.75mm)
NJG1104KB2
PDF/DataSheet Download
- Datasheet: NJG1104KB2
- File Size: 279859 KB
- Manufacturer: NJRC [New Japan Radio]
- Click here to Download
- ·NJG1101F
- NJRC [New Japan Radio]
- WIDE BAND AGC AMPLIFIER GaAs MMIC
- 345750 KB
- ·NJG1101F-C1
- NJRC [New Japan Radio]
- WIDE BAND AGC AMPLIFIER GaAs MMIC
- 345750 KB
- ·NJG1101F-C2
- NJRC [New Japan Radio]
- WIDE BAND AGC AMPLIFIER GaAs MMIC
- 345750 KB
- ·NJG1101F-C3
- NJRC [New Japan Radio]
- WIDE BAND AGC AMPLIFIER GaAs MMIC
- 345750 KB
- ·NJG1101F-C4
- NJRC [New Japan Radio]
- WIDE BAND AGC AMPLIFIER GaAs MMIC
- 345750 KB
- ·NJG1101F-C5
- NJRC [New Japan Radio]
- WIDE BAND AGC AMPLIFIER GaAs MMIC
- 345750 KB
- ·NJG1101F-L1
- NJRC [New Japan Radio]
- WIDE BAND AGC AMPLIFIER GaAs MMIC
- 345750 KB
- ·NJG1101F-L2
- NJRC [New Japan Radio]
- WIDE BAND AGC AMPLIFIER GaAs MMIC
- 345750 KB
NJG1104KB2 Relative Products

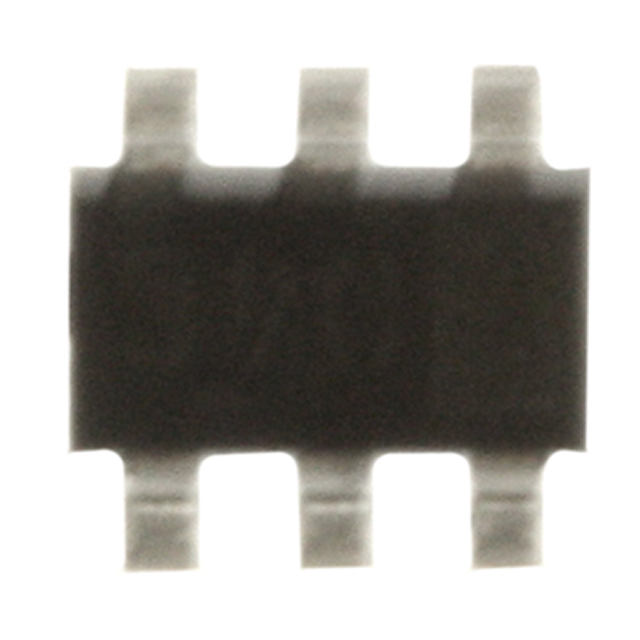

NJG1103F1-TE1#
