PA51M-12/883, PA51Q, PA52

Table of contents:
Info of PA51M-12/883
Info of PA51Q
Info of PA52

PA51M-12/883, PA51Q, PA52 Selling Leads, Datasheet

MFG:Cirrus Logic Inc Category:Integrated Circuits (ICs) Package Cooled:APEX D/C:N/A

PA51M-12/883, PA51Q, PA52 Datasheet download

Five Points

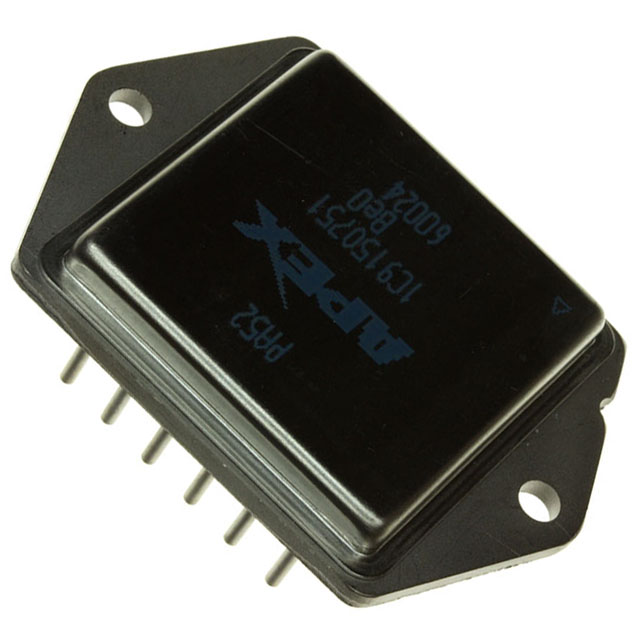

Part Number: PA52

Category: Integrated Circuits (ICs)

MFG: Cirrus Logic Inc

Package Cooled: APEX

D/C: N/A

Description: IC PWR AMP 200V 40A 12DIP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PA52 Parameters

Technical/Catalog Information	PA52
Vendor	Cirrus Logic Inc
Category	Integrated Circuits (ICs)
Packaging	Tube
Amplifier Type	Power
Number of Circuits	1 - Single
Package / Case	12-DIP Module
Slew Rate	50 V/s
Gain Bandwidth Product	3MHz
Current - Supply	30mA
Current - Output / Channel	80A
Voltage - Supply, Single/Dual (±)	6 V ~ 200 V, ±3 V ~ 100 V
Output Type	-
-3db Bandwidth	-
Current - Input Bias	10pA
Operating Temperature	-25°C ~ 85°C
Voltage - Input Offset	5000V
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Compliant by Exemption
Other Names	PA52 PA52 598 1316 ND 5981316ND 598-1316

PA52 General Description

The PA52 is a MOSFET power operational amplifier that extends the performance limits of power amplifiers in slew rate and power bandwidth, while maintaining high current and power dissipation ratings.

Boost voltage inputs allow the small signal portion of the amplifier to operate at a higher voltage than the high current output stage. The amplifier is then biased to achieve close linear swings to the supply rails at high currents for extra efficient operation.

PA52 Maximum Ratings

SUPPLY VOLTAGE, +VS to VS ............200V
BOOST VOLTAGE, +Vb to -Vb .............230V
OUTPUT CURRENT, within SOA ............ 80A
POWER DISSIPATION, internal ............400W
INPUT VOLTAGE, differential ............. ±20V
INPUT VOLTAGE, common mode ........... ±Vb
TEMPERATURE, pin solder .............. -10s 300
TEMPERATURE, junction2...............175
TEMPERATURE, storage ............... - 65 to +150
OPERATING TEMPERATURE RANGE, case....... - 55 to +125

PA52 Features

• HIGH INTERNAL DISSIPATION - 400 Watts
• HIGH CURRENT - 40A Continuous, 80A PEAK
• HIGH SLEW RATE - 50V/s
• OPTIONAL BOOST VOLTAGE INPUTS

PA52 Typical Application

• SEMI-CONDUCTOR TESTING

PA52 Connection Diagram
