MFG:Cirrus Logic Inc Category:Integrated Circuits (ICs) Package Cooled:TO-3P D/C:09+
PA905C6, PA91, PA910 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Cirrus Logic Inc
Package Cooled: TO-3P
D/C: 09+
Description: OP AMP HV 450V .200A 12-SIP DP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: PA905C6
File Size: 86009 KB
Manufacturer: FUJI [Fuji Electric]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PA91
File Size: 376832 KB
Manufacturer: APEX
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PA90
File Size: 57519 KB
Manufacturer: APEX
Download : Click here to Download
|
Item |
Symbol |
Conditions |
Rating |
Unit |
| Repetitive peak reverse voltage |
VRRM |
600 |
V | |
| Non-repetitive peak reverse voltage |
VRSM |
600 |
V | |
| Average output current |
IO |
Rectangle wave, duty=1/2, Tc=100 |
20* |
A |
| Surge current |
IFSM |
Sine wave 10ms |
80 |
A |
| Operating junction temperature |
Tj |
-40 to +150 |
||
| Storage temperature |
Tstg |
-40 to +150 |
| Technical/Catalog Information | PA91 |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Power |
| Number of Circuits | 1 - Single |
| Package / Case | 12-SIP |
| Slew Rate | 300 V/s |
| Gain Bandwidth Product | 100MHz |
| Current - Supply | 10mA |
| Current - Output / Channel | 200mA |
| Voltage - Supply, Single/Dual (±) | 80 V ~ 450 V, ±40 V ~ 225 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 200pA |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Input Offset | 500V |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | PA91 PA91 598 1331 ND 5981331ND 598-1331 |

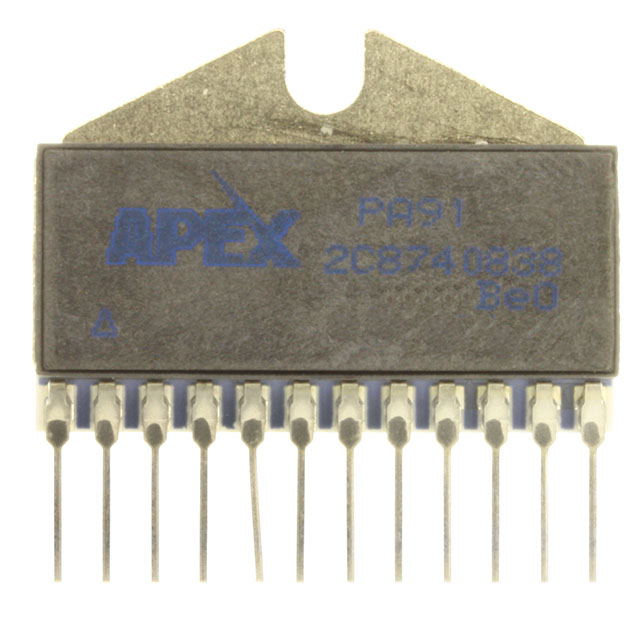

The PA91 is a high voltage, low quiescent current MOSFET operational amplifier designed as a low cost solution for driving continuous output currents up to 200mA and pulse currents up to 350mA. The safe operating area (SOA) has no second breakdown limitations and can be observed for all type loads by choosing an appropriate current limiting resistor. The MOSFET output stage is biased AB for linear operation. External compensation provides flexibility in choosing bandwidth and slew rate for the application. APEX's Power SIP package uses a minimum of board space allowing for high density circuit boards. The 12-pin PowerSIP package is electrically isolated.
