MFG:Cirrus Logic Inc Category:Integrated Circuits (ICs) Package Cooled:2001+ D/C:DIP/24
PA97SAS-A, PA98A, PA9T15GH Datasheet download
Category: Integrated Circuits (ICs)
MFG: Cirrus Logic Inc
Package Cooled: 2001+
D/C: DIP/24
Description: OP AMP PWR 450V .2A 12P SIP SG
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: PA90
File Size: 57519 KB
Manufacturer: APEX
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PA98A
File Size: 583733 KB
Manufacturer: APEX
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PA90
File Size: 57519 KB
Manufacturer: APEX
Download : Click here to Download
| Technical/Catalog Information | PA98A |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Power |
| Number of Circuits | 1 - Single |
| Package / Case | 12-SIP |
| Slew Rate | 1000 V/s |
| Gain Bandwidth Product | 100MHz |
| Current - Supply | 21mA |
| Current - Output/Channel | 200mA |
| Voltage - Supply, Single/Dual (±) | 30 V ~ 450 V, ±15 V ~ 225 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 3pA |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Input Offset | 250V |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | PA98A PA98A 598 1450 ND 5981450ND 598-1450 |

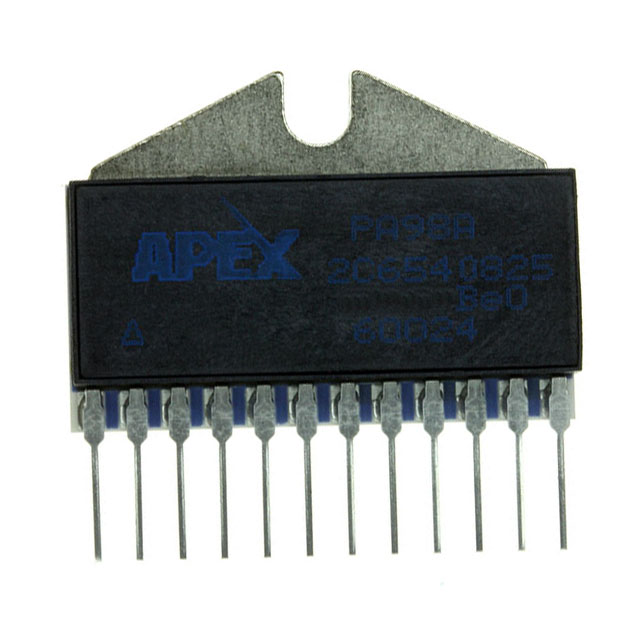

The PA98 is a high voltage, high power bandwidth MOSFET operational amplifier designed for output currents up to 200mA.Output voltages can swing up to ±215V with a dual supply and up to +440 volts with a single supply. The safe operating area (SOA) has no second breakdown limitations and can be observed with all types of loads by choosing an appropriate current limiting resistor. High accuracy is achieved with a cascode input circuit configuration. All internal biasing is referenced to a bootstrapped zener-MOSFET current source.As a result, the PA98 features an unprecedented supply range and excellent supply rejection. The MOSFET output stage is biased on for linear operation. External compensation provides user flexibility.
This hybrid circuit utilizes thick film (cermet) resistors, ceramic capacitors and silicon semiconductor chips to maximize reliability,minimize size and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The Power SIP package is electrically isolated.
