PIC16C62ASO, PIC16C62B, PIC16C62B/JW

Table of contents:
Info of PIC16C62ASO
Info of PIC16C62B
Info of PIC16C62B/JW

PIC16C62ASO, PIC16C62B, PIC16C62B/JW Selling Leads, Datasheet

MFG:Microchip Technology Category:Integrated Circuits (ICs) Package Cooled:micro D/C:dc98

PIC16C62ASO, PIC16C62B, PIC16C62B/JW Datasheet download

Five Points

Part Number: PIC16C62B/JW

Category: Integrated Circuits (ICs)

MFG: Microchip Technology

Package Cooled: micro

D/C: dc98

Description: IC MCU EPROM 2KX14 PWM 28CDIP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PIC16C62ASO Parameters

PIC16C62B Features1 PWM 10-bit

PIC16C62ASO General Description

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS OTP-based 8-bit microcontroller packs Microchip’s powerful PIC architecture into an 28-pin package and is upwards compatible with the PIC16C5X and PIC12CXXX devices. The synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus. Easily adapted for automotive, industrial, appliances, low power remote sensors and consumer applications.

PIC16C62ASO Features

1 PWM 10-bit

PIC16C62ASO Typical Application

PIC16C62B/72A Datasheet

PIC16C62B Parameters

PIC16C62B Features1 PWM 10-bit

PIC16C62B General Description

PIC16C62B Maximum Ratings

Ambient temperature under bias................................................................................................-55°C to +125°C
Storage temperature ................................................................................................................ -65°C to +150°C
Voltage on any pin with respect to VSS (except VDD, MCLR, and RA4).................................. -0.3V to (VDD + 0.3V)
Voltage on VDD with respect to VSS ................................................................................................ -0.3V to +7.5V
Voltage on MCLR with respect to VSS (Note 2)................................................................................. 0V to +13.25V
Voltage on RA4 with respect to Vss ..................................................................................................... 0V to +8.5V
Total power dissipation (Note 1)......................................................................................................................1.0W
Maximum current out of VSS pin ..................................................................................................................300 mA
Maximum current into VDD pin .....................................................................................................................250 mA
Input clamp current, IIK (VI < 0 or VI > VDD).............................................................................................. ±20 mA
Output clamp current, IOK (VO < 0 or VO > VDD) ....................................................................................... ±20 mA
Maximum output current sunk by any I/O pin..................................................................................................25 mA
Maximum output current sourced by any I/O pin ............................................................................................25 mA
Maximum current sunk by PORTA and PORTB (combined) .............................................................................200 mA
Maximum current sourced by PORTA and PORTB (combined).........................................................................200 mA
Maximum current sunk by PORTC...................................................................................................................200 mA
Maximum current sourced by PORTC .............................................................................................................200 mA

PIC16C62B Features

1 PWM 10-bit

PIC16C62B Typical Application

PIC16C62B/72A Datasheet

PIC16C62B Connection Diagram

PIC16C62B/JW Parameters

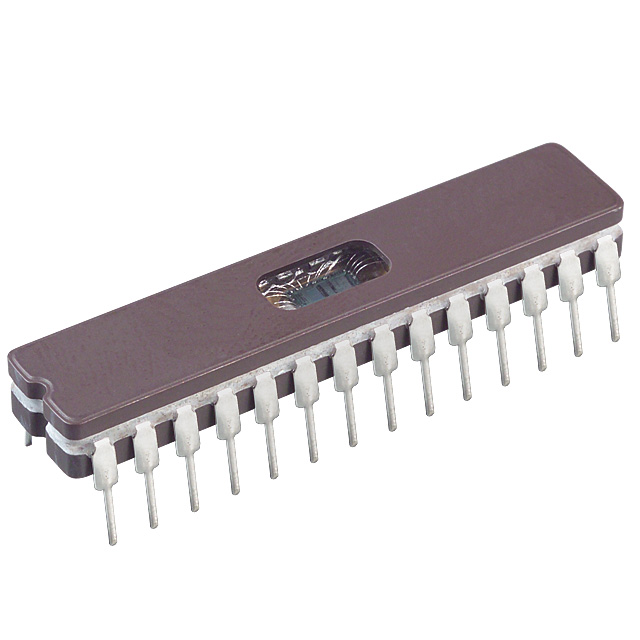

Technical/Catalog Information	PIC16C62B/JW
Vendor	Microchip Technology
Category	Integrated Circuits (ICs)
Program Memory Size	3.5KB (2K x 14)
RAM Size	128 x 8
Number of I /O	22
Package / Case	28-CDIP (300 mil) Window
Speed	20MHz
Controller Series	PIC16C
Oscillator Type	External
Packaging	Tube
Program Memory Type	EPROM, UV
EEPROM Size	-
Core Processor	PIC
Data Converters	-
Core Size	8-Bit
Operating Temperature	0°C ~ 70°C
Connectivity	I²C, SPI
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Voltage - Supply (Vcc/Vdd)	4 V ~ 5.5 V
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PIC16C62B JW PIC16C62BJW
