PIC14000

Features:

The PIC14000 is a 28-pin device with these features:
• 4K of EPROM
• 192 bytes of RAM
•22 I/O pins

Application

• Battery Chargers
• Battery Capacity Monitoring
• Uninterruptable Power Supply Controllers
• Power Management Controllers
• HVAC Controllers
• Sensing and Data Acquisition

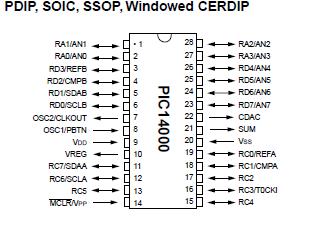

Pinout






Specifications

Parameter Name	Value
Program Memory Type	OTP
Program Memory (KB)	7
CPU Speed (MIPS)	5
RAM Bytes	192
Digital Communication Peripherals	1-I2C
Timers	1 x 8-bit, 1 x 16-bit
Comparators	2
Temperature Range (C)	-40 to 85
Operating Voltage Range (V)	2.7 to 6
Pin Count	28

Description

The PIC14000 features include medium to high resolution A/D conversion (10 to 16 bits), temperature sensing, closed loop charge control, serial communication, and low power operation.
The PIC14000 uses a RISC Harvard architecture CPU with separate 14-bit instruction and 8-bit data buses. A two-stage instruction pipeline allows all instructions to execute in a single cycle, except for program branches, which require two cycles. A total of 35 instructions are available. Additionally, a large register set is included.
PIC16/17 microcontrollers typically achieve a 2:1 code compression and a 4:1 speed improvement over other 8-bit microcontrollers.
