PIC16F689-E/ML, PIC16F689-E/P, PIC16F689-E/SO

Table of contents:
Info of PIC16F689-E/ML
Info of PIC16F689-E/P
Info of PIC16F689-E/SO

PIC16F689-E/ML, PIC16F689-E/P, PIC16F689-E/SO Selling Leads, Datasheet

MFG:Microchip Technology Category:Integrated Circuits (ICs) Package Cooled:QFN D/C:08+

PIC16F689-E/ML, PIC16F689-E/P, PIC16F689-E/SO Datasheet download

Five Points

Part Number: PIC16F689-E/P

Category: Integrated Circuits (ICs)

MFG: Microchip Technology

Package Cooled: QFN

D/C: 08+

Description: IC PIC MCU FLASH 4KX14 20SOIC

Price Break

455

Unit Price

1.64000

Extended Price

746.20

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PIC16F689-E/ML Parameters

Technical/Catalog Information	PIC16F689-E/ML
Vendor	Microchip Technology
Category	Integrated Circuits (ICs)
Program Memory Size	7KB (4K x 14)
RAM Size	256 x 8
Number of I /O	18
Package / Case	20-QFN
Speed	20MHz
Controller Series	PIC16F
Oscillator Type	Internal
Packaging	Tube
Program Memory Type	FLASH
EEPROM Size	256 x 8
Core Processor	PIC
Data Converters	A/D 12x10b
Core Size	8-Bit
Operating Temperature	-40°C ~ 125°C
Connectivity	I²C, SPI, UART/USART
Peripherals	Brown-out Detect/Reset, POR, WDT
Voltage - Supply (Vcc/Vdd)	2 V ~ 5.5 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PIC16F689 E ML PIC16F689EML

PIC16F689-E/P Parameters

Technical/Catalog Information	PIC16F689-E/P
Vendor	Microchip Technology
Category	Integrated Circuits (ICs)
Program Memory Size	7KB (4K x 14)
RAM Size	256 x 8
Number of I /O	18

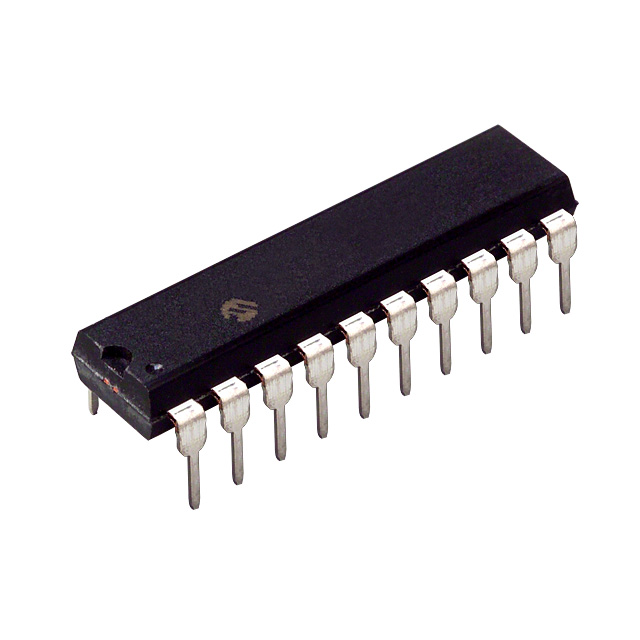

Package / Case	20-DIP (300 mil)
Speed	20MHz
Controller Series	PIC16F
Oscillator Type	Internal
Packaging	Tube
Program Memory Type	FLASH
EEPROM Size	256 x 8
Core Processor	PIC
Data Converters	A/D 12x10b
Core Size	8-Bit
Operating Temperature	-40°C ~ 125°C
Connectivity	I²C, SPI, UART/USART
Peripherals	Brown-out Detect/Reset, POR, WDT
Voltage - Supply (Vcc/Vdd)	2 V ~ 5.5 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PIC16F689 E P PIC16F689EP

PIC16F689-E/SO Parameters

Technical/Catalog Information	PIC16F689-E/SO
Vendor	Microchip Technology
Category	Integrated Circuits (ICs)
Program Memory Size	7KB (4K x 14)
RAM Size	256 x 8
Number of I /O	18
Package / Case	20-SOIC (7.5mm Width)
Speed	20MHz
Controller Series	PIC16F
Oscillator Type	Internal
Packaging	Tube
Program Memory Type	FLASH
EEPROM Size	256 x 8
Core Processor	PIC
Data Converters	A/D 12x10b
Core Size	8-Bit
Operating Temperature	-40°C ~ 125°C
Connectivity	I²C, SPI, UART/USART
Peripherals	Brown-out Detect/Reset, POR, WDT
Voltage - Supply (Vcc/Vdd)	2 V ~ 5.5 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PIC16F689 E SO PIC16F689ESO
