QSE113, QSE114, QSE122

Table of contents:
Info of QSE113
Info of QSE114
Info of QSE122

QSE113, QSE114, QSE122 Selling Leads, Datasheet

MFG:Fairchild Optoelectronics Group Category:Sensors, Transducers Package Cooled:DIP D/C:05+

QSE113, QSE114, QSE122 Datasheet download

Five Points

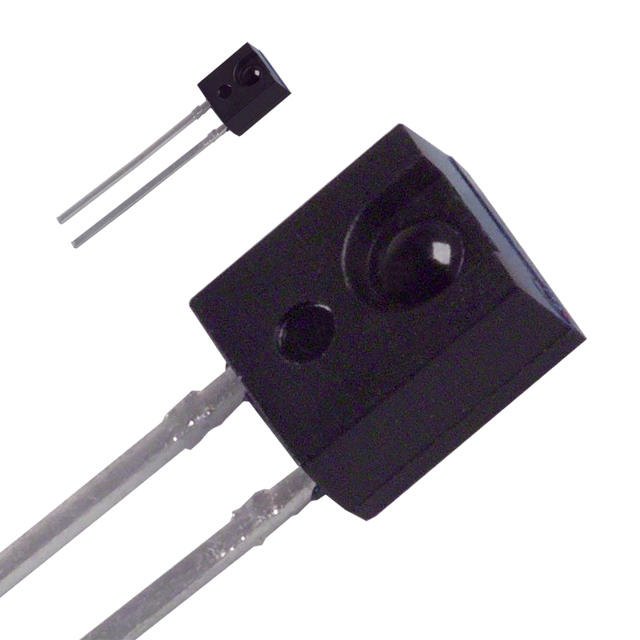

Part Number: QSE113

Category: Sensors, Transducers

MFG: Fairchild Optoelectronics Group

Package Cooled: DIP

D/C: 05+

Description: IC PHOTOTRANS IR 880NM SIDE-LOOK

Price Break

1
10
100
250
500
1000
5000

Unit Price

.52000
.37600
.24540
.20704
.17636
.13802
.11502

Extended Price

0.52
3.76
24.54
51.76
88.18
138.02
575.10

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

QSE113 Parameters

Technical/Catalog Information	QSE113
Vendor	Fairchild Optoelectronics Group
Category	Sensors, Transducers
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	-
Current - Dark (Id) (Max)	100nA
Power - Max	100mW
Orientation	Side View
Mounting Type	Through Hole
Package / Case	Radial
Wavelength	880nm
Viewing Angle	50°
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	QSE113 QSE113

QSE113 General Description

The QSE113/114 is a silicon phototransistor encapsulated in a wide angle,infrared transparent, black plastic sidelooker package.

QSE113 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing
QSE113	Full Production	RoHS Compliant	$0.139	Sidelooker	2	BULK	TBD
QSE113E3R0	Full Production	RoHS Compliant	$0.165	Sidelooker	2	TAPE REEL	TBD

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

QSE113 Features

• NPN silicon phototransistor
• Package type: Sidelooker
• Medium wide reception angle, 50°
• Package material and color: black epoxy
• Matched emitter: QEE113
• Daylight filter
• High sensitivity

QSE114 Parameters

Technical/Catalog Information	QSE114
Vendor	Fairchild Optoelectronics Group
Category	Sensors, Transducers
Voltage - Collector Emitter (BVceo) (Max)	30V
Current - Collector (Ic) (Max)	-
Current - Dark (Id) (Max)	100nA
Power - Max	100mW
Orientation	Side View
Mounting Type	Through Hole
Package / Case	Radial
Wavelength	880nm
Viewing Angle	50°
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	QSE114 QSE114

QSE114 General Description

The QSE113/114 is a silicon phototransistor encapsulated in a wide angle, infrared transparent, black plastic sidelooker package

QSE114 Maximum Ratings

Parameter	Symbol	Rating	Unit
Operating Temperature	T_OPR	-40 to + 100	°C
Storage Temperature	T_STG	-40 to + 100	°C
Soldering Temperature (Iron)^(2,3,4)	T_SOL-I	240 for 5 sec	°C
Soldering Temperature (Flow)^(2,3)	T_SOL-F	260 for 10 sec	°C
Collector-Emitter Voltage	V_CE	30	V
Emitter-Collector Voltage	V_EC	5	V
Power Dissipation⁽¹⁾	P_D	100	mW

QSE114 Features

QSE122 Parameters

Technical/Catalog Information	QSE122
Vendor	Fairchild Optoelectronics Group
Category	Sensors, Transducers
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	-
Current - Dark (Id) (Max)	100nA
Power - Max	100mW
Orientation	Side View
Mounting Type	Through Hole
Package / Case	Radial
Wavelength	880nm
Viewing Angle	50°
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	QSE122 QSE122

QSE122 General Description

The QSE122 is a silicon phototransistor encapsulated in a wide angle, infrared transparent,black plastic sidelooker package.

QSE122 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing
QSE122	Full Production	RoHS Compliant	$0.171	Sidelooker	2	BULK	TBD

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

QSE122 Features
