RF3800, RF3800TR7, RF3802SR

Table of contents:
Info of RF3800
Info of RF3800TR7
Info of RF3802SR

RF3800, RF3800TR7, RF3802SR Selling Leads, Datasheet

MFG:RFMD (VA) Category:RF and RFID D/C:09+

RF3800, RF3800TR7, RF3802SR Datasheet download

Five Points

Part Number: RF3800TR7

Category: RF and RFID

MFG: RFMD (VA)

Package Cooled:

D/C: 09+

Description: IC AMP HBT GAAS PRE-DVR 6W AIN

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

RF3800 General Description

The RF3800 is specifically designed for wireless infrastructure applications in 450MHz. Using a highly reliable GaAs HBT fabrication process, this high-performance single-stage amplifier achieves high output power over a broad frequency range. The RF3800 also provides excellent efficiency and thermal stability through the use of a thermally-enhanced surface-mount AlN package.

Ease of integration is accomplished through the incorporation of an optimized evaluation board design provided to achieve proper 50Ω operation. Various evaluation board bias configurations are available to address a broad range of wireless infrastructure applications.

RF3800 Maximum Ratings

Frequency (MHz)

150 to 960

Gain (dB)

OP1dB (dBm)

OIP3 (dBm)

Eff (%)

Vcc (V)

5 to 8

Id (mA)

400

Package/Size (Dim in mm)

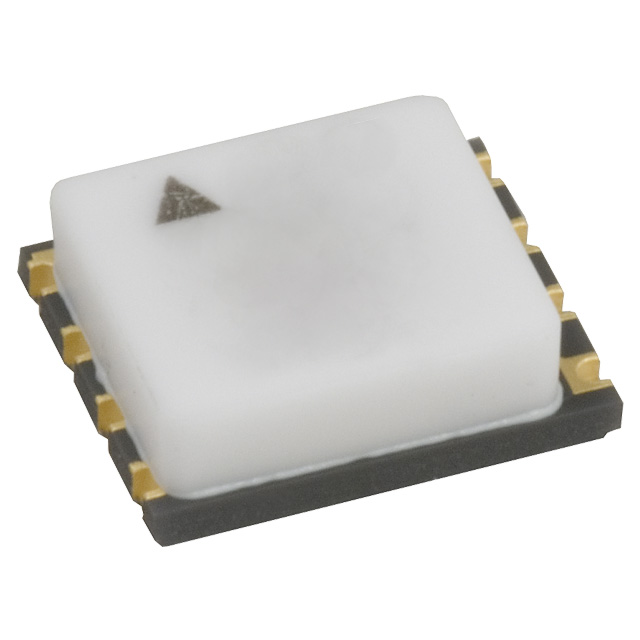

AIN 8 pin

RF3800 Features

• 6W Output Power
• High Linearity
• 45% Power-Added Efficiency
• Thermally-Enhanced Packaging
• Broadband Platform Design Approach

RF3800 Typical Application

• Pre-Driver for 450MHz Basestation Amplifiers
• PA Stage for Commercial Wireless Infrastructure
• Class AB Operation for Cellular Radio and Wireless Local Loop

RF3800TR7 Parameters

Technical/Catalog Information	RF3800TR7
Vendor	RFMD (VA)
Category	RF and RFID
Package / Case	8-LCC
Voltage - Supply	5V ~ 8V
Current - Supply	400mA
Gain	14.7dB
Frequency	150MHz ~ 960MHz
RF Type	W-CDMA, SATCOM
Packaging	Cut Tape (CT)
Noise Figure	6.5dB
P1db	37dBm ~ 39.1dBm
Test Frequency	450MHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RF3800TR7 RF3800TR7 689 1025 1 ND 68910251ND 689-1025-1
