SF2006PT, SF2007PT, SF2008D

Table of contents:
Info of SF2006PT
Info of SF2007PT
Info of SF2008D

SF2006PT, SF2007PT, SF2008D Selling Leads, Datasheet

MFG:RF MONOLITHICS INC (VA) Category:Filters Package Cooled:9800 D/C:TO

SF2006PT, SF2007PT, SF2008D Datasheet download

Five Points

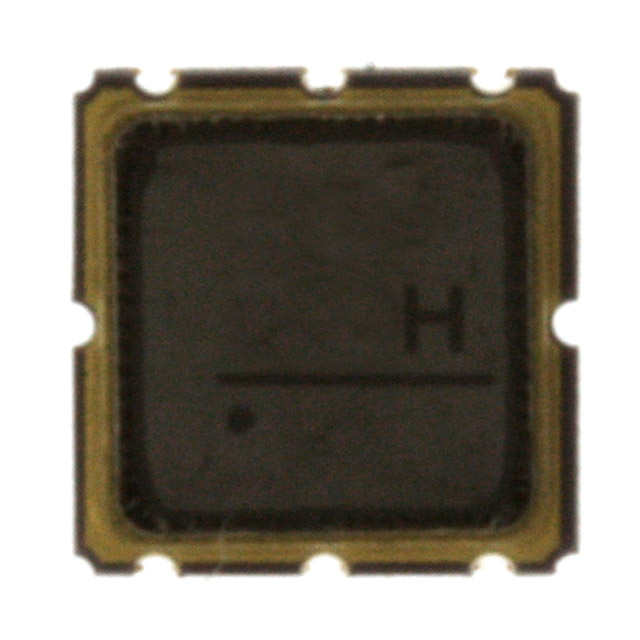

Part Number: SF2008D

Category: Filters

MFG: RF MONOLITHICS INC (VA)

Package Cooled: 9800

D/C: TO

Description: SAW RF / IF FILTER 930.5 MHZ

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

SF2008D Parameters

Technical/Catalog Information	SF2008D
Vendor	RF MONOLITHICS INC (VA)
Category	Filters
Filter Type	Bandpass
Packaging	Digi-Reel?
Package / Case	0.150" L x 0.150" W x 0.059" H (3.80mm x 3.80mm x 1.50mm)
Applications	Pager
Frequency	930.5MHz Center
Insertion Loss	4.5dB
Bandwidth	4MHz
Mounting Type	Surface Mount
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SF2008D SF2008D 583 1087 6 ND 58310876ND 583-1087-6

SF2008D General Description

RF Filter for Pager Applications High Rejection Out of Band Complies with Directive 2002/95/EC (RoHS)

SF2008D Maximum Ratings

Characteristic Symbol Minimum Typical Maximum Units Nominal 1 dB Center Frequency fC 930.5 MHz Passband Insertion Loss across 928.5 to 932.5 MHz IL 4.5 dB Amplitude Variation over fc 2 MHz 2.0 dBP-P Rejection 400 to 880 MHz 35 dB 884.8 to 890.2 MHz 40 dB 906.8 to 911.2 MHz 30 dB 980 to 1300 MHz 35 dB Operating Temperature Range TA -20 +70 C Impedance at Fc Input 50 - j57 ohm Output 50 - j57 ohm

SF2008D Features

• RF Filter for Pager Applications
• High Rejection Out of Band
• Complies with Directive 2002/95/EC (RoHS)
